AL20L-ZHHDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

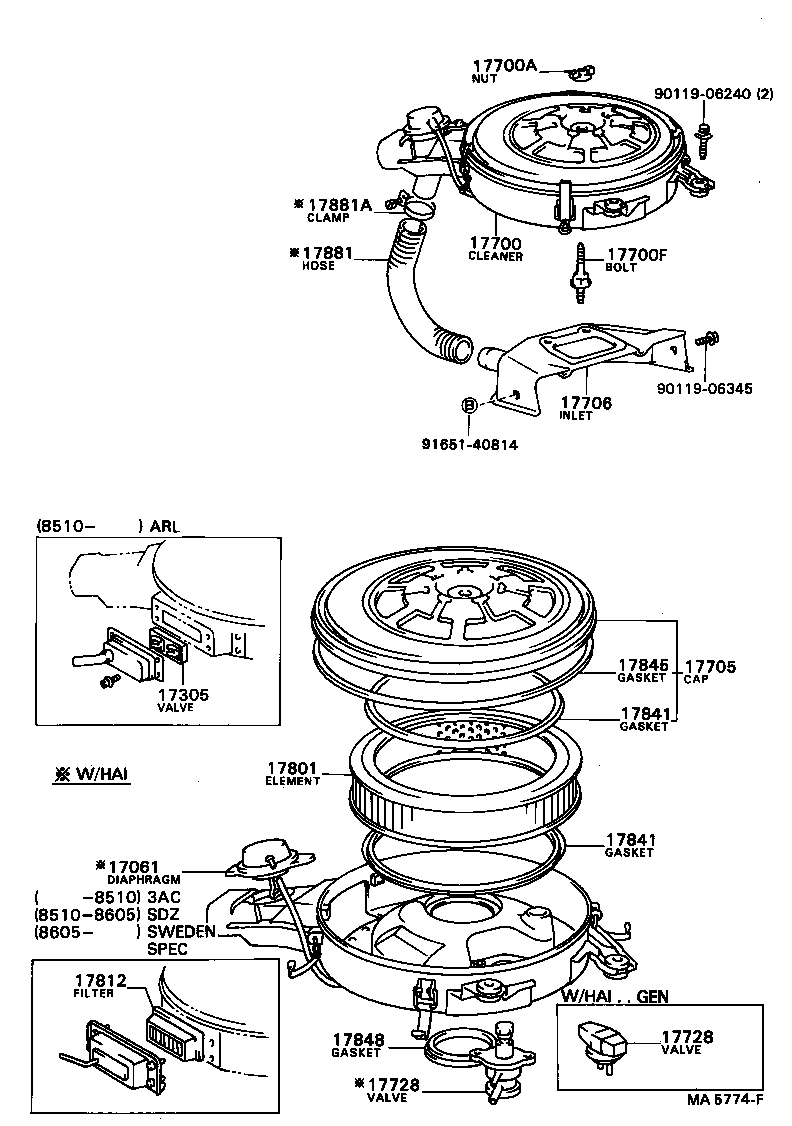

(8205- )

Click highlighted areas on diagram

diagram 17061 17305 17700 17700A 17700F 17705 17706 17728 17728 17801 17812 17841 17841 17845 17848 17881 17881A 9011906240 9011906345 9165140814
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-14040

2A,3A..AL20,25..GEN

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06005

2A,3A#..AL2#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06019

2A,3A#..AL2#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-14010

2A,3A#..AL2#

 1
17706 - INLET SUB-ASSY, AIR CLEANER, NO.2
17902-15060

2A,3A#..AL2#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-15010

2A,3A#..AL2#

 1
17841 - GASKET, FILTER ELEMENT
17841-15010

2A,3A#..AL2#

 2
17841 - GASKET, FILTER ELEMENT
17841-15010

2A,3A#..AL2#

 2
17845 - GASKET, AIR CLEANER CAP
17845-14010

2A,3A#..AL2#..EUR,GEN

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63001

2A,3A..AL20,25

 1
Common parts
90119-06240
90119-06345
91651-40814

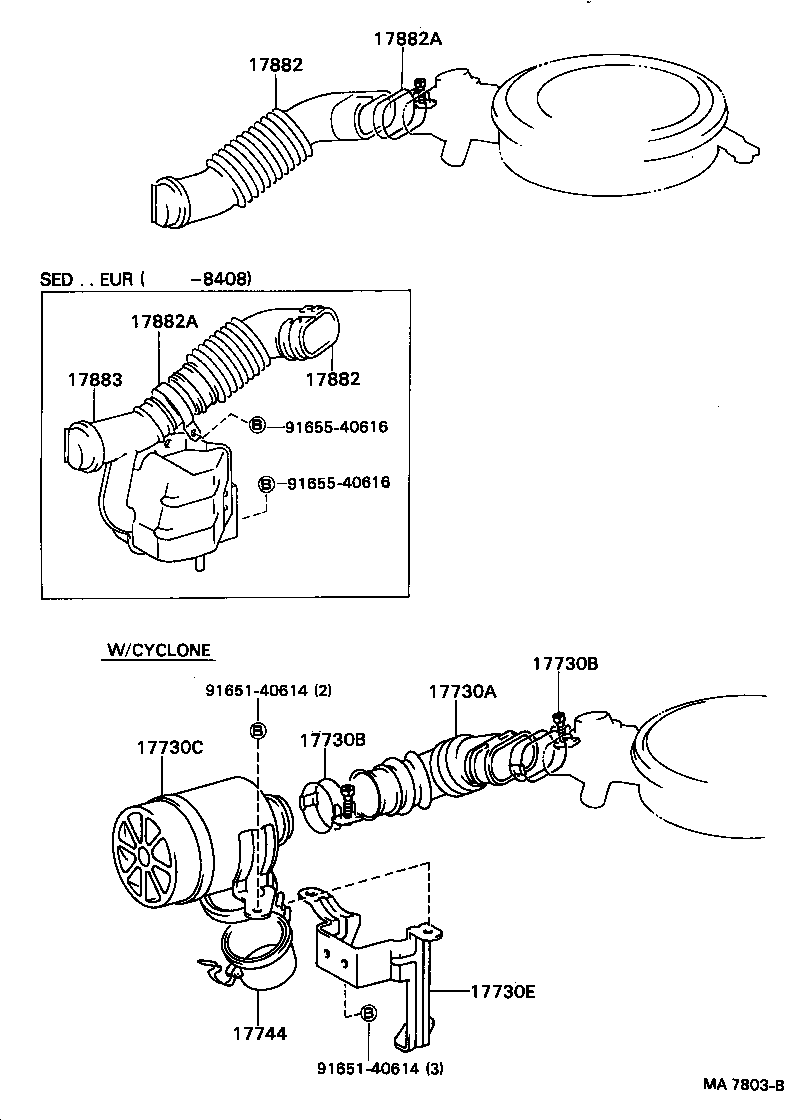

(8205- )

Click highlighted areas on diagram

diagram 17730A 17730B 17730B 17730C 17730E 17744 17882 17882 17882A 17882A 17883 9165140614 9165140614 9165540616 9165540616
Part # Description Qty Price
17882 - HOSE, AIR CLEANER, NO.2
17881-15050

2A..AL20..GEN

 1
17882 - HOSE, AIR CLEANER, NO.2
17881-15050

2A..AL20..GEN

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01005

2A,3A#..AL2#

AIR CLEANER SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01005

2A,3A#..AL2#

AIR CLEANER SIDE

 1
Common parts
91651-40614
91655-40616
