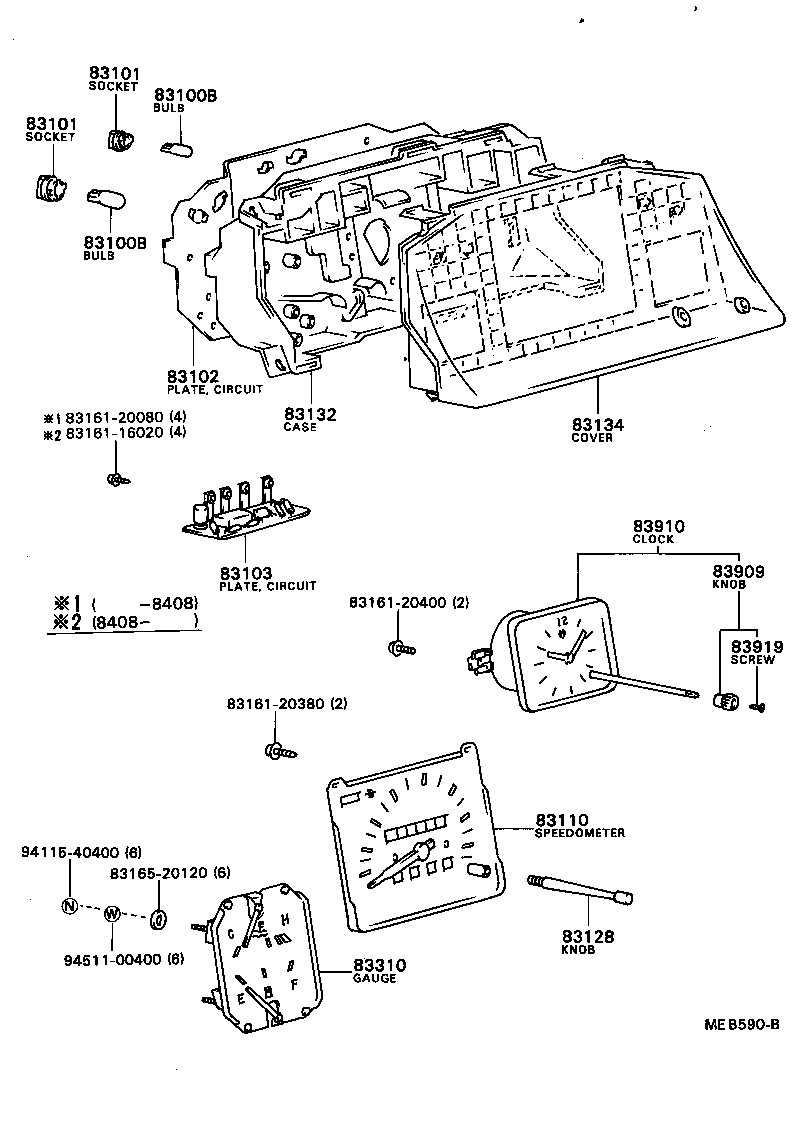

AL20L-ZGMDSW (1982)
Toyota Tercel
(8205- )LHD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AL2# 12V 3.4W |
7 | ||
| 83109-28010 |
AL2#..ARL,EUR 12V3.4W W(GREEN CAP) |
3 | ||
| 90981-11018 |
AL2# 12V 1.2W W/O SOCKET |
5 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AL2# 12V 3.4W |
7 | ||
| 83109-28010 |
AL2#..ARL,EUR 12V3.4W W(GREEN CAP) |
3 | ||
| 90981-11018 |
AL2# 12V 1.2W W/O SOCKET |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AL2# 12V 1.4W |
5 | ||
| 83101-14030 |
AL2#..LHD..(DLX,GL)..EUR 12V 3.4W,W/TACHOMETER |
4 | ||
| 83101-20040 |
AL2#..LHD..EUR 12V 3.4W |
7 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AL2# 12V 1.4W |
5 | ||
| 83101-14030 |
AL2#..LHD..(DLX,GL)..EUR 12V 3.4W,W/TACHOMETER |
4 | ||
| 83101-20040 |
AL2#..LHD..EUR 12V 3.4W |
7 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-16280 |
AL2#..LHD..EUR W/ECONOMETER |
1 | ||
| 83247-16180 |
AL2#..LHD..EUR |
1 | ||
| 83247-16650 |
AL2#..LHD..(DLX,GL)..EUR W/TACHOMETER & ECONOMETER |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-16300 |
AL2#..LHD..EUR W/ECONOMETER |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-16560 |
AL2#..LHD..EUR |
1 | ||
| 83110-16400 |
AL2#..LHD..(DLX,GL)..EUR W/*TAC & ECONOMETER |
1 | ||
| 83110-16391 |
AL2#..LHD..EUR W/ECONOMETER |
1 | ||
| 83110-16390 |
AL2#..LHD..EUR W/ECONOMETER |
1 | ||
| 83110-16401 |
AL2#..LHD..(DLX,GL)..EUR W/*TAC & ECONOMETER |
1 | ||
| 83110-16561 |
AL2#..LHD..EUR |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-20710 |
AL2#..LHD..EUR |
1 | ||
| 83128-16090 |
AL2#..(DLX,GL)..EUR W/TACHOMETER |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-16240 |
AL2#..LHD..EUR |
1 | ||
| 83132-16160 |
AL2#..LHD..EUR W/ECONOMETER |
1 | ||
| 83132-16530 |
AL2#..LHD..(DLX,GL)..EUR W/TACHOMETER & ECONOMETER |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-16670 |
AL2#..LHD..(DLX,GL)..EUR W/TACHOMETER & DIGITAL CLOCK |
1 | ||
| 83133-16470 |
AL2#..LHD..(DLX,GL)..EUR W/TACHOMETER & DIGITAL CLOCK |
1 | ||
| 83134-16100 |
AL2#..LHD..EUR W/CLOCK |
1 | ||
| 83134-16120 |
AL2#..LHD..EUR |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-16100 |
AL2#..LHD..EUR |
1 | ||
| 83243-16370 |
AL2#..LHD..(DLX,GL)..EUR W/TACHOMETER |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
AL2#..DLX,GL,STD ANALOGUE |
1 | ||
| 83909-16050 |
AL2#..(DLX,GL)..EUR DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-16060 |
AL2#..DLX,GL,STD ANALOGUE |
1 | ||
| 83910-16070 |
AL2#..LHD..(DLX,GL)..EUR DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
AL2#..(DLX,GL)..EUR DIGITAL |
1 | ||
| 83919-14012 |
AL2#..DLX,GL,STD ANALOGUE |
1 | ||
| Common parts | ||||
| 83161-16020 | ||||
| 83161-20080 | ||||
| 83161-20380 | ||||
| 83161-20400 | ||||
| 83165-20120 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-16080 |
AL20,21..LHD..MTM |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-16080 |
AL20,21..LHD..MTM |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-16080 |
AL20,21..LHD..MTM |
1 | ||
| Common parts | ||||
| 82711-12220 | ||||
| 83791-16030 | ||||
| 93567-55016 | ||||
(8205- )DLX,GL,SR5..ARL,EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AL2# 12V 3.4W |
7 | ||
| 83109-28010 |
AL2#..ARL,EUR 12V3.4W W(GREEN CAP) |
3 | ||
| 90981-11018 |
AL2# 12V 1.2W W/O SOCKET |
5 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AL2# 12V 3.4W |
7 | ||
| 83109-28010 |
AL2#..ARL,EUR 12V3.4W W(GREEN CAP) |
3 | ||
| 90981-11018 |
AL2# 12V 1.2W W/O SOCKET |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AL2# 12V 1.4W |
5 | ||
| 83101-14030 |
AL2#..LHD..(DLX,GL)..EUR 12V 3.4W,W/TACHOMETER |
4 | ||
| 83101-20040 |
AL2#..LHD..EUR 12V 3.4W |
7 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AL2# 12V 1.4W |
5 | ||
| 83101-14030 |
AL2#..LHD..(DLX,GL)..EUR 12V 3.4W,W/TACHOMETER |
4 | ||
| 83101-20040 |
AL2#..LHD..EUR 12V 3.4W |
7 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-16280 |
AL2#..LHD..EUR W/ECONOMETER |
1 | ||
| 83247-16180 |
AL2#..LHD..EUR |
1 | ||
| 83247-16650 |
AL2#..LHD..(DLX,GL)..EUR W/TACHOMETER & ECONOMETER |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-16280 |
AL2#..LHD..EUR W/ECONOMETER |
1 | ||
| 83247-16180 |
AL2#..LHD..EUR |
1 | ||
| 83247-16650 |
AL2#..LHD..(DLX,GL)..EUR W/TACHOMETER & ECONOMETER |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-16300 |
AL2#..LHD..EUR W/ECONOMETER |
1 | ||
| 83104 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3 | ||||
| 83247-16890 |
AL2#..LHD..(DLX,GL)..EUR W/TACHOMETER & ECONOMETER |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-16560 |
AL2#..LHD..EUR |
1 | ||
| 83110-16400 |
AL2#..LHD..(DLX,GL)..EUR W/*TAC & ECONOMETER |
1 | ||
| 83110-16391 |
AL2#..LHD..EUR W/ECONOMETER |
1 | ||
| 83110-16390 |
AL2#..LHD..EUR W/ECONOMETER |
1 | ||
| 83110-16401 |
AL2#..LHD..(DLX,GL)..EUR W/*TAC & ECONOMETER |
1 | ||
| 83110-16561 |
AL2#..LHD..EUR |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-20710 |
AL2#..LHD..EUR |
1 | ||
| 83128-16090 |
AL2#..(DLX,GL)..EUR W/TACHOMETER |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-16240 |
AL2#..LHD..EUR |
1 | ||
| 83132-16160 |
AL2#..LHD..EUR W/ECONOMETER |
1 | ||
| 83132-16530 |
AL2#..LHD..(DLX,GL)..EUR W/TACHOMETER & ECONOMETER |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-16670 |
AL2#..LHD..(DLX,GL)..EUR W/TACHOMETER & DIGITAL CLOCK |
1 | ||
| 83133-16470 |
AL2#..LHD..(DLX,GL)..EUR W/TACHOMETER & DIGITAL CLOCK |
1 | ||
| 83134-16100 |
AL2#..LHD..EUR W/CLOCK |
1 | ||
| 83134-16120 |
AL2#..LHD..EUR |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-16170 |
AL2#..LHD..(DLX,GL)..EUR |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-16100 |
AL2#..LHD..EUR |
1 | ||
| 83243-16370 |
AL2#..LHD..(DLX,GL)..EUR W/TACHOMETER |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-16310 |
AL2#..LHD..(DLX,GL)..EUR W/TACHOMETER |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
AL2#..DLX,GL,STD ANALOGUE |
1 | ||
| 83909-16050 |
AL2#..(DLX,GL)..EUR DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-16060 |
AL2#..DLX,GL,STD ANALOGUE |
1 | ||
| 83910-16070 |
AL2#..LHD..(DLX,GL)..EUR DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
AL2#..(DLX,GL)..EUR DIGITAL |
1 | ||
| 83919-14012 |
AL2#..DLX,GL,STD ANALOGUE |
1 | ||
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00944 | ||||

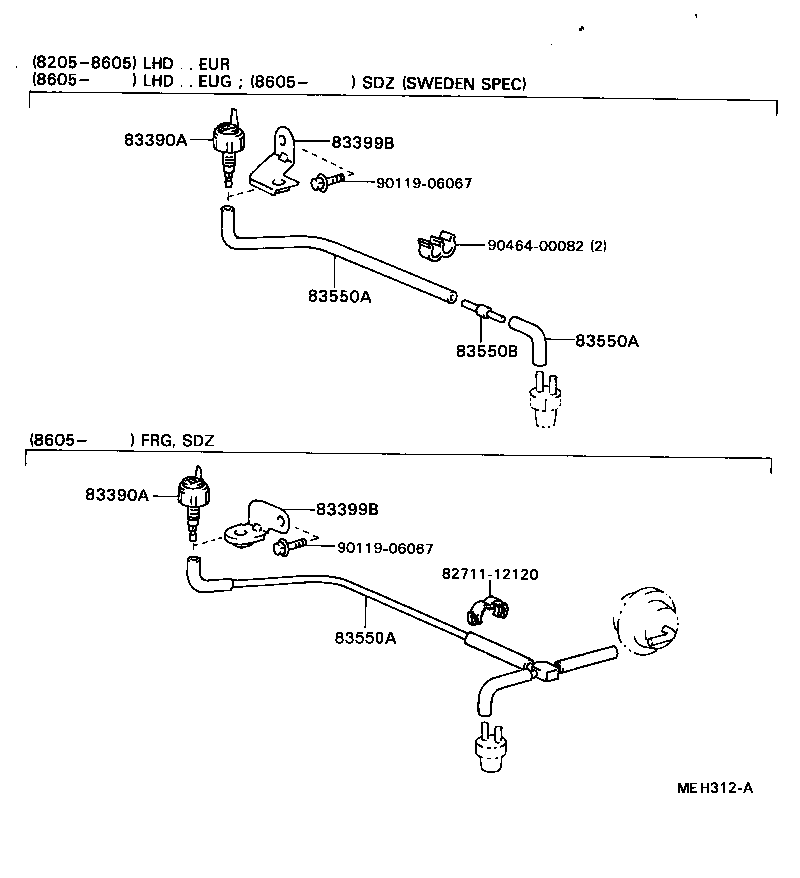

(8205- )LHD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83390A - SWITCH ASSY, VACUUM(FOR ECONOMETER) | ||||
| 83391-16020 |
AL2#..LHD..EUR |
1 | ||
| 83390A - SWITCH ASSY, VACUUM(FOR ECONOMETER) | ||||
| 83391-16020 |
AL2#..LHD..EUR |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-22011 |
AL2#..LHD..EUR |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-22011 |
AL2#..LHD..EUR |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 95411-10060 |
AL20,25..LHD..EUG *H,L=360,MARK=#0 |
1 | ||
| 95411-10030 |
AL2#..LHD..EUR *H,L=80,MARK=#0 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 95411-10060 |
AL20,25..LHD..EUG *H,L=360,MARK=#0 |
1 | ||
| 95411-10030 |
AL2#..LHD..EUR *H,L=80,MARK=#0 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 95411-10060 |
AL20,25..LHD..EUG *H,L=360,MARK=#0 |
1 | ||
| 95411-10030 |
AL2#..LHD..EUR *H,L=80,MARK=#0 |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90412-05001 |
AL2#..LHD..EUR |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 90119-06067 | ||||
| 90464-00082 | ||||
