AL20L-ZGMDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

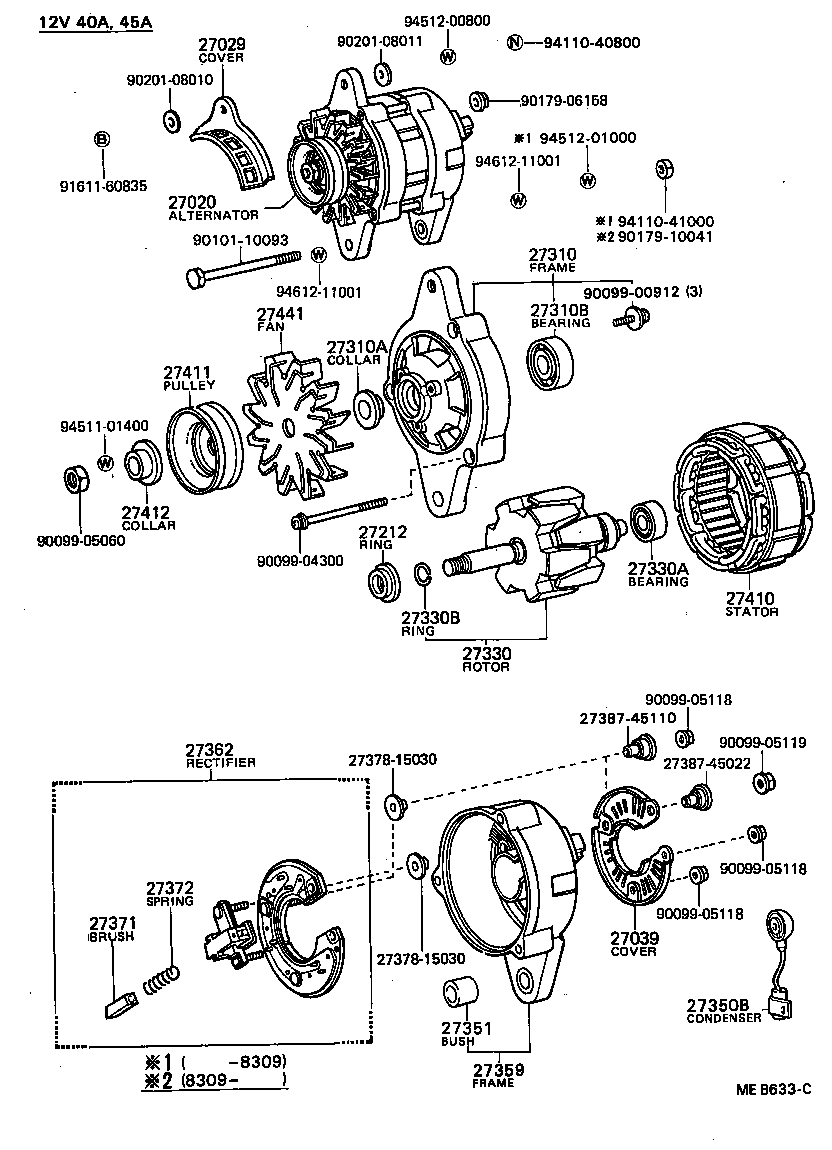

Click highlighted areas on diagram

diagram 27020 27029 27039 27212 27310 27310A 27310B 27330 27330A 27330B 27350B 27351 27359 27362 27371 27372 2737815030 2737815030 2738745022 2738745110 27410 27411 27412 27441 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110093 9017906158 9017910041 9020108010 9020108011 9161160835 9411040800 9411041000 9451101400 9451200800 9451201000 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-15030

2A,3A#..AL2#

12V 40A,12V 40A

 1
27029 - COVER, ALTERNATOR
27029-15012

2A,3A#..AL2#

12V 40A,45A,50A,55A

 1
27039 - COVER, ALTERNATOR REAR END
27039-18011

2A,3A#..AL2#

12V 40A,45A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050

2A,3A#..AL2#

12V 40A,45A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-15030

2A,3A#..AL2#

12V 40A,45A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

2A,3A#..AL2#

12V 40A,45A,50A,55A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10126

2A,3A#..AL2#

12V 40A,45A,50A,55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-26050

2A,3A#..AL2#

12V 40A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10111

2A,3A#..AL2#

12V 40A,45A,50A,55A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048

2A,3A#..AL2#

12V 40A,45A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

2A,3A#..AL2#

12V 40A,45A,50A,55A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

2A,3A#..AL2#

12V 40A,45A,50A,55A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-15030

2A,3A#..AL2#

12V 40A,45A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-18011

2A,3A#..AL2#

12V 40A,45A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

2A,3A#..AL2#

12V 40A,45A,50A,55A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

2A,3A#..AL2#

12V 40A,45A,50A,55A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-15030

2A,3A#..AL2#

12V 40A

 1
27411 - PULLEY, ALTERNATOR
27411-26111

2A,3A#..AL2#

12V 40A,45A,50A,55A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44030

2A,3A#..AL2#

12V 40A,45A,50A,55A

 1
27441 - FAN, ALTERNATOR
27441-34030

2A,3A#..AL2#

12V 40A,45A,50A,55A

 1
Common parts
27378-15030
27387-45022
27387-45110
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10093
90179-06158
90179-10041
90201-08010
90201-08011
91611-60835
94110-40800
94110-41000
94511-01400
94512-00800
94512-01000
94612-11001
