AL20L-ZGHDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8408)3FC

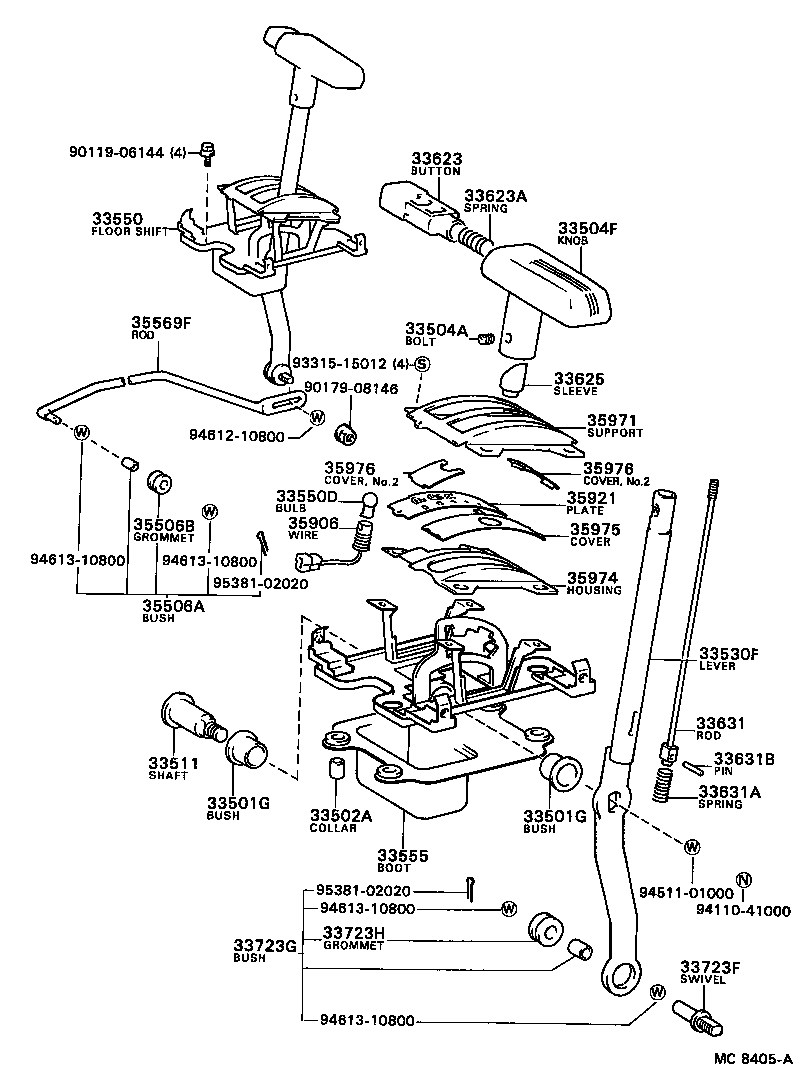

Click highlighted areas on diagram

diagram 33501G 33501G 33502A 33504A 33504F 33511 33530F 33550 33550D 33555 33623 33623A 33625 33631 33631A 33631B 33723F 33723G 33723H 35506A 35506B 35569F 35906 35921 35971 35974 35975 35976 35976 9011906144 9017908146 9331515012 9411041000 9451101000 9461210800 9461310800 9461310800 9461310800 9461310800 9538102020 9538102020
Part # Description Qty Price
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90385-16003

AL20,21..3FC

 2
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90385-16003

AL20,21..3FC

 2
33502A - COLLAR (FOR FLOOR SHIFT SETTING)
90387-06005

AL20,21..3FC

 4
33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING)
90113-05034

AL20,21..3FC

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-2403012

AL20,21..3FC

DARK WINE,RED/MAROON,TRIM3#

 1
33542-2403013

AL20,21..3FC

GRAY,GRAY,TRIM1#

 1
33542-2403016

AL20,21..3FC

BROWN,BROWN,TRIM4#

 1
33511 - SHAFT, CONTROL (FOR FLOOR SHIFT)
33511-16020

AL20,21..3FC

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33503-16060

AL20,21..LHD..3FC

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-1613003

AL20,21..LHD..3FC

GRAY,GRAY,TRIM1#

 1
33550-1613002

AL20,21..LHD..3FC

DARK WINE,RED/MAROON,TRIM3#

 1
33550-1613006

AL20,21..LHD..3FC

BROWN,BROWN,TRIM4#

 1
33550D - BULB, POSITION INDICATOR LAMP
99132-11017

AL20,21..3FC

12V 1.7W,12V 1.7W

 1
33555 - BOOT, SHIFT LEVER
33555-16020

AL20,21..3FC

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-3004036

AL20,21..3FC

BROWN,BROWN,TRIM4#

 1
33623-3004002

AL20,21..3FC

DARK WINE,RED/MAROON,TRIM3#

 1
33623-3004013

AL20,21..3FC

GRAY,GRAY,TRIM1#

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07009

AL20,21..3FC

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-16010

AL20,21..3FC

 1
33631 - ROD, DETENT
33631-16010

AL20,21..3FC

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-07005

AL20,21..3FC

 1
33631B - PIN, SLOTTED SPRING (FOR DETENT ROD)
90256-04001

AL20,21..3FC

 1
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-22010

AL20,21..3FC

 1
33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90999-99017

AL20,21..3FC

 1
33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
90480-17177

AL20,21..3FC

 1
35506A - BUSH (FOR MANUAL VALVE LEVER SHAFT)
90999-99017

AL20,21..3FC

 1
35506B - GROMMET (FOR MANUAL VALVE LEVER SHAFT)
90480-17177

AL20,21..3FC

 1
35569F - ROD, TRANSMISSION CONTROL, 1ST (FOR FLOOR SHIFT)
33675-16020

AL20,21..3FC

 1
33675-16021

AL20,21..3FC

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-16010

AL20,21..3FC

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-16060

AL20,21..LHD..3FC

 1
35971 - SUPPORT, POSITION INDICATOR
35971-16020

AL20,21..3FC

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-16020

AL20,21..3FC

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-16020

AL20,21..3FC

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-16010

AL20,21..3FC

 2
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-16010

AL20,21..3FC

 2
Common parts
90119-06144
90179-08146
93315-15012
94110-41000
94511-01000
94612-10800
94613-10800
95381-02020
