AL11R-ZGKDS (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )

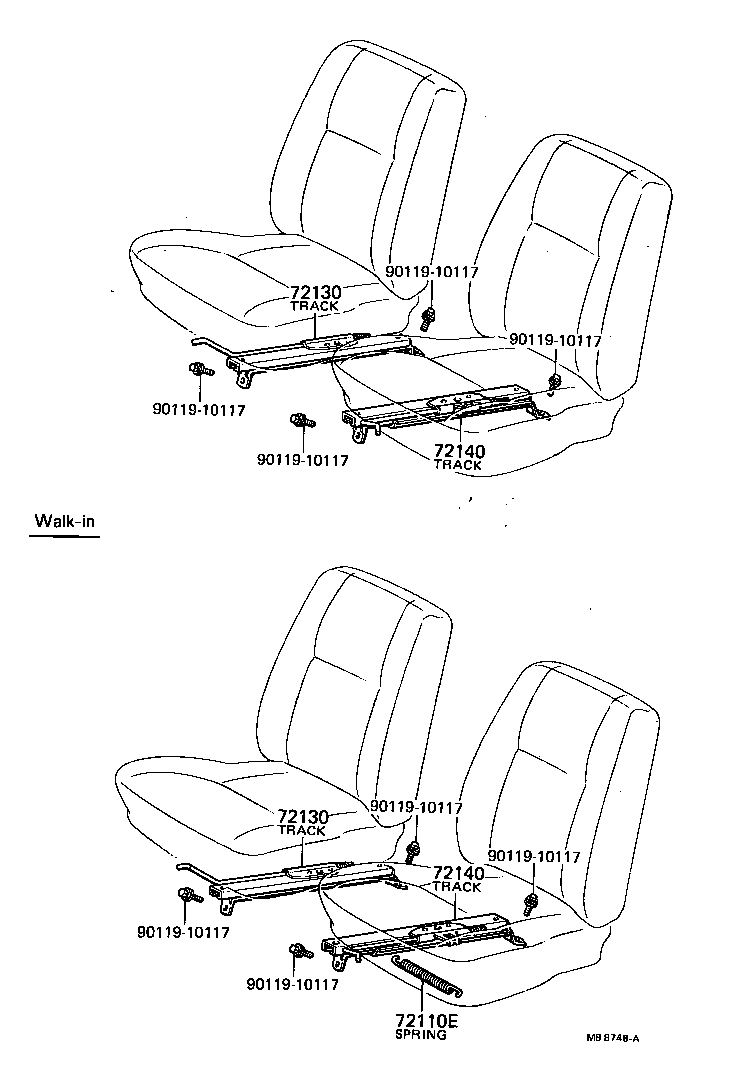

Click highlighted areas on diagram

diagram 72110E 72130 72130 72140 72140 9011910117 9011910117 9011910117 9011910117 9011910117 9011910117 9011910117 9011910117
Part # Description Qty Price
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-18020

AL11..2DS,3DS

 1
90506-18020

AL11..(2DS,3DS)..RHD

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-16010

AL11..(2DS,3DS)..DLX..GEN

 1
72130-16011

AL11..(2DS,3DS)..GEN

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-16010

AL11..(2DS,3DS)..DLX..GEN

 1
72130-16011

AL11..(2DS,3DS)..GEN

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-16020

AL11..(2DS,3DS)..RHD

W/WALK-IN

 1
72140-16010

AL11

 1
72140-16021

AL11..3DS..RHD

W/WALK-IN

 1
72140-16011

AL11

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-16020

AL11..(2DS,3DS)..RHD

W/WALK-IN

 1
72140-16010

AL11

 1
72140-16021

AL11..3DS..RHD

W/WALK-IN

 1
72140-16011

AL11

 1
Common parts
90119-10117
