AL11R-ZEKDS (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )RHD

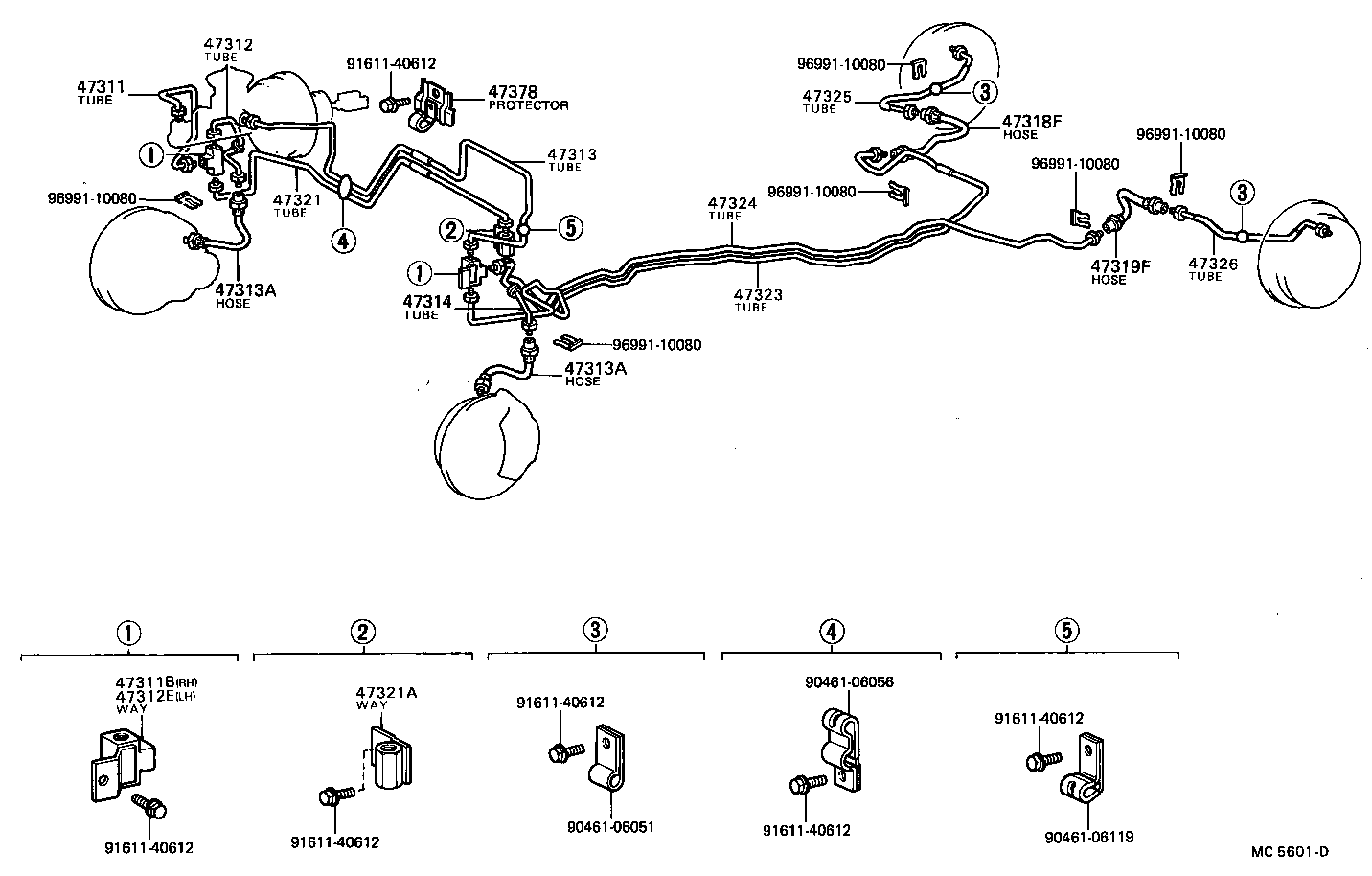

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47314 47318F 47319F 47321 47321A 47323 47324 47325 47326 47378 9046106051 9046106056 9046106119 9161140612 9161140612 9161140612 9161140612 9161140612 9161140612 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-16010

AL11..RHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10004

AL11..RHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-16010

AL11..RHD

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10004

AL11

 1
47313 - TUBE, FRONT BRAKE, NO.3
47321-16010

AL11..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02364

AL11

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02364

AL11

 2
47314 - TUBE, FRONT BRAKE, NO.4
47322-16010

AL11

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02365

AL11

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02365

AL11

 1
47321 - TUBE, REAR BRAKE, NO.1
47313-16010

AL11..RHD

 1
47321A - WAY(FOR REAR BRAKE TUBE)
90412-10041

AL11..RHD

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-16010

AL11

 1
47323-16010

AL11..GEN

 1
47324 - TUBE, REAR BRAKE, NO.4
47314-16010

AL11..RHD

 1
47325 - TUBE, REAR BRAKE, NO.5
47324-16010

AL11

 1
47326 - TUBE, REAR BRAKE, NO.6
47315-16010

AL11

 1
47378 - PROTECTOR, BRAKE TUBE
47378-16010

AL11..RHD

 1
Common parts
90461-06051
90461-06056
90461-06119
91611-40612
96991-10080
