AL11L-ZGKDS (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )LHD..GEN

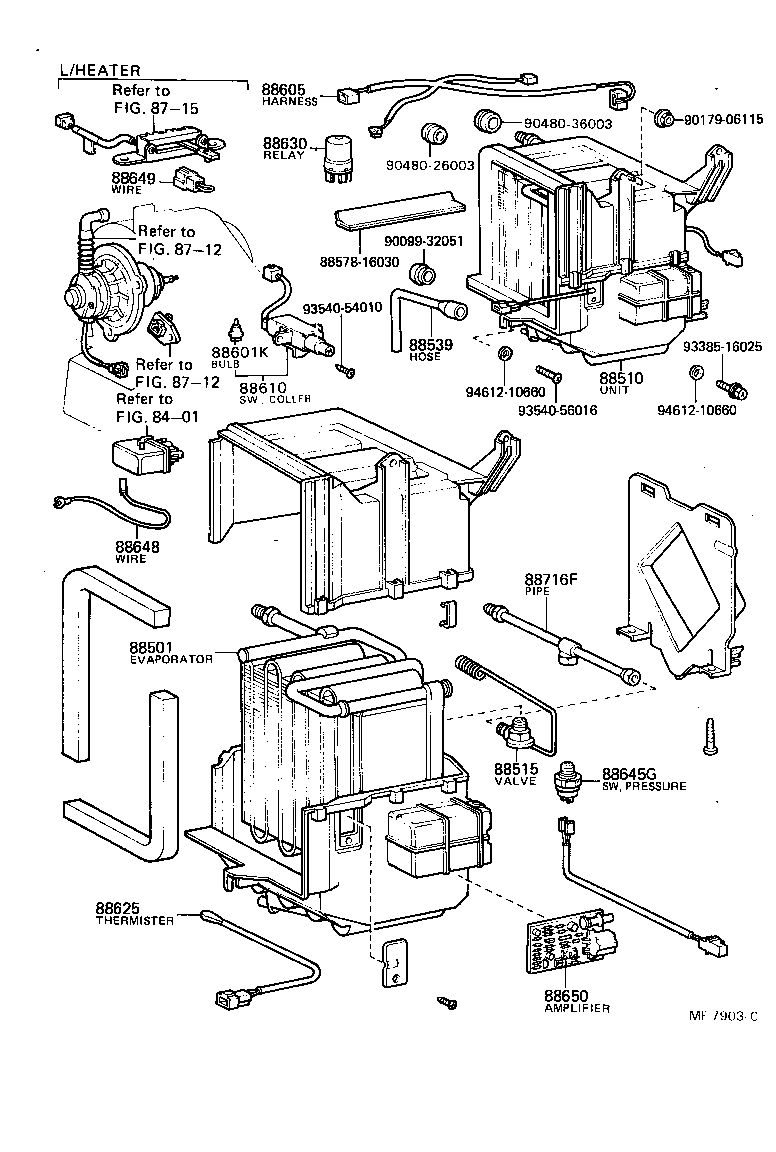

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-16020 |
AL11..LHD..GEN |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-16020 |
AL11..LHD..GEN |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20040 |
AL11..GEN |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-10030 |
AL11..GEN |
1 | ||
| 88601K - BULB(FOR COOLER SWITCH) | ||||
| 88607-14020 |
AL11..LHD..GEN 14V 1.4W |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-16020 |
AL11..LHD..GEN |
1 | ||
| 88605-16040 |
AL11..LHD..GEN W/BOOST VENTILATOR |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-16010 |
AL11..LHD..GEN W/HEATER |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-20040 |
AL11..GEN |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-01001 |
AL11..GEN |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-22010 |
AL11..LHD..GEN |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-16010 |
AL11..GEN |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88648-16020 |
AL11..LHD..GEN W/BOOST VENTILATOR |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-16010 |
AL11..LHD..GEN |
1 | ||
| 88650-16020 |
AL11..GEN |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-16070 |
AL11..LHD..GEN |
1 | ||
| Common parts | ||||
| 88578-16030 | ||||
| 90099-32051 | ||||
| 90179-06115 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 93385-16025 | ||||
| 93540-54010 | ||||
| 93540-56016 | ||||
| 94612-10660 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8712 | ||||
| 8715 | ||||
