AL11L-ZGKDS (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )3DS

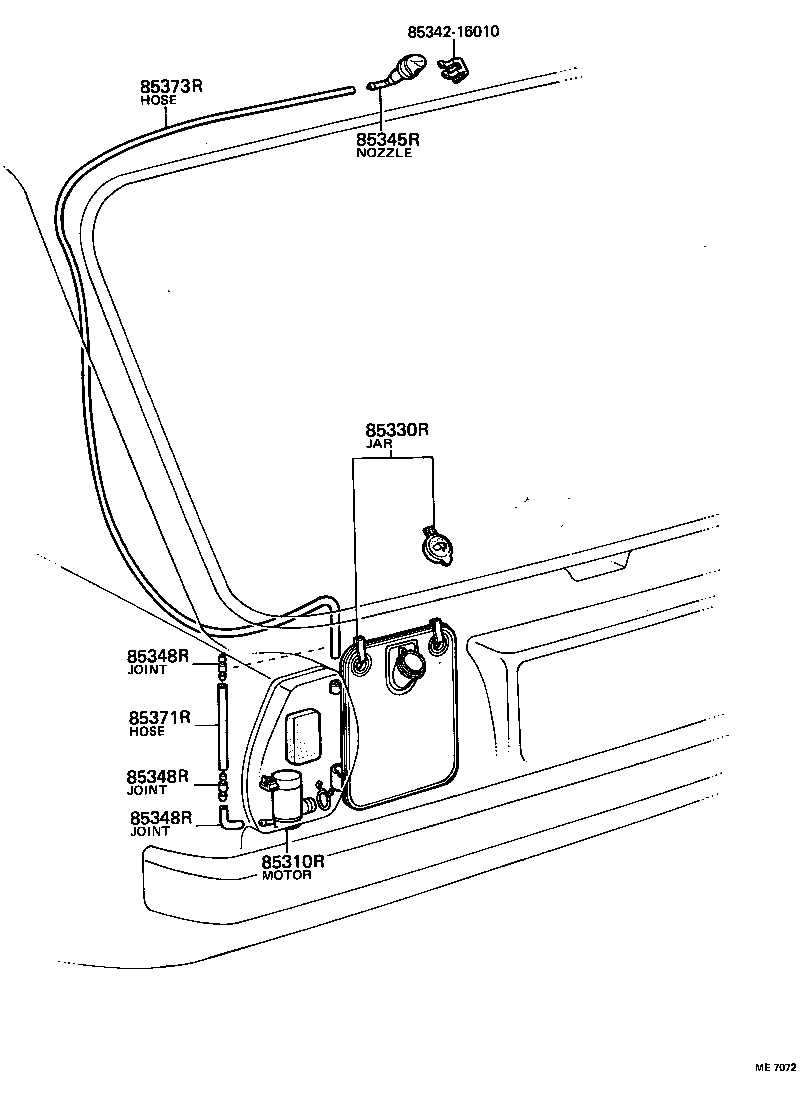

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85310R - MOTOR ASSY, REAR WASHER | ||||
| 85310-20100 |
AL11..3DS |
1 | ||
| 85330R - JAR ASSY, REAR WASHER | ||||
| 85330-16010 |
AL11..3DS |
1 | ||
| 85345R - NOZZLE, REAR WASHER | ||||
| 85035-16010 |
AL11..3DS |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85355-87201 |
AL11..3DS STRAIGHT TYPE |
2 | ||
| 85355-20070 |
AL11..3DS L TYPE |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85355-87201 |
AL11..3DS STRAIGHT TYPE |
2 | ||
| 85355-20070 |
AL11..3DS L TYPE |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85355-87201 |
AL11..3DS STRAIGHT TYPE |
2 | ||
| 85355-20070 |
AL11..3DS L TYPE |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33317 |
AL11..3DS L=240 |
1 | ||
| 90099-33299 |
AL11..3DS *H,L=240 |
1 | ||
| 90099-33293 |
AL11..3DS L=240 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06006 |
AL11..3DS L=2000 |
1 | ||
| 90099-33271 |
AL11..3DS L=1700 |
1 | ||
| Common parts | ||||
| 85342-16010 | ||||
