AL11L-ZGKDS (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )2DS,3DS

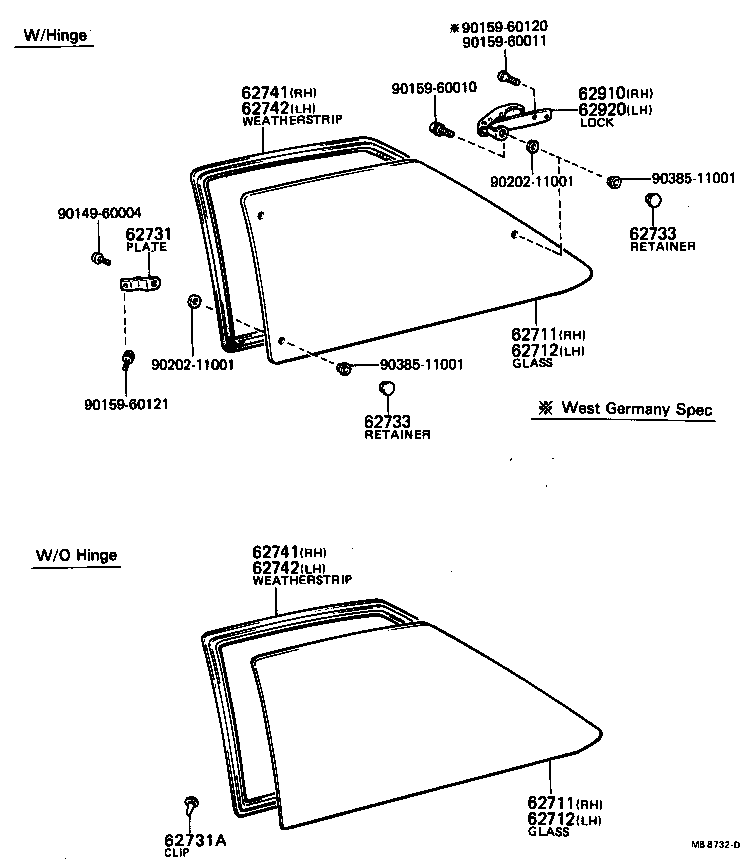

Click highlighted areas on diagram

diagram 62711 62711 62712 62712 62731 62731A 62733 62733 62741 62741 62742 62742 62910 62920 9014960004 9015960010 9015960011 9015960120 9015960121 9020211001 9020211001 9038511001 9038511001
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62711-16010

AL11..3DS..DLX

*TT,T=4.0,W/HINGE

 1
62711-16051

AL11..3DS..DLX

*TT,T=3.5

 1
62711-16011

AL11..3DS..DLX

*TT,T=4.0,W/HINGE

 1
62711-16050

AL11..3DS..DLX

*TT,T=4.0

 1
62711 - GLASS, QUARTER WINDOW, RH
62711-16010

AL11..3DS..DLX

*TT,T=4.0,W/HINGE

 1
62711-16051

AL11..3DS..DLX

*TT,T=3.5

 1
62711-16011

AL11..3DS..DLX

*TT,T=4.0,W/HINGE

 1
62711-16050

AL11..3DS..DLX

*TT,T=4.0

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-16051

AL11..3DS..DLX

*TT,T=3.5

 1
62712-16050

AL11..3DS..DLX

*TT,T=4.0

 1
62712-16010

AL11..3DS..DLX

*TT,T=4.0,W/HINGE

 1
62712-16011

AL11..3DS..DLX

*TT,T=4.0,W/HINGE

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-16051

AL11..3DS..DLX

*TT,T=3.5

 1
62712-16050

AL11..3DS..DLX

*TT,T=4.0

 1
62712-16010

AL11..3DS..DLX

*TT,T=4.0,W/HINGE

 1
62712-16011

AL11..3DS..DLX

*TT,T=4.0,W/HINGE

 1
62731 - PLATE, QUARTER OR SIDE WINDOW HINGE
62731-16010

AL11..2DS,3DS

 4
62731A - CLIP, QUARTER WINDOW HINGE PLATE
90467-0801204

AL11..2DS,3DS

W/O HINGE,BLUE,BLUE,TRIM8#

 4
90467-0801206

AL11..2DS,3DS

W/O HINGE,LIGHT BROWN,BROWN,TRIM4#

 4
90467-0801201

AL11..2DS,3DS

W/O HINGE,BLACK,BLACK,TRIM2#

 4
62733 - RETAINER, QUARTER OR SIDE WINDOW HINGE
62735-12010

AL11..2DS,3DS

 6
62733 - RETAINER, QUARTER OR SIDE WINDOW HINGE
62735-12010

AL11..2DS,3DS

 6
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62741-16010

AL11..3DS

W/HINGE

 1
62741-16030

AL11..3DS

 1
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62741-16010

AL11..3DS

W/HINGE

 1
62741-16030

AL11..3DS

 1
62742 - WEATHERSTRIP, QUARTER WINDOW, LH
62742-16010

AL11..3DS

W/HINGE

 1
62742-16030

AL11..3DS

 1
62742 - WEATHERSTRIP, QUARTER WINDOW, LH
62742-16010

AL11..3DS

W/HINGE

 1
62742-16030

AL11..3DS

 1
62910 - LOCK ASSY, QUARTER OR SIDE WINDOW, RH
62910-16010

AL11..2DS,3DS

 1
62920 - LOCK ASSY, QUARTER WINDOW, LH
62920-16010

AL11..2DS,3DS

 1
Common parts
90149-60004
90159-60010
90159-60011
90159-60120
90159-60121
90202-11001
90385-11001
