AL11L-ZGHDS (1979)

Toyota Tercel

Production Aug 1979 - Apr 1982
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )3FC

Click highlighted areas on diagram

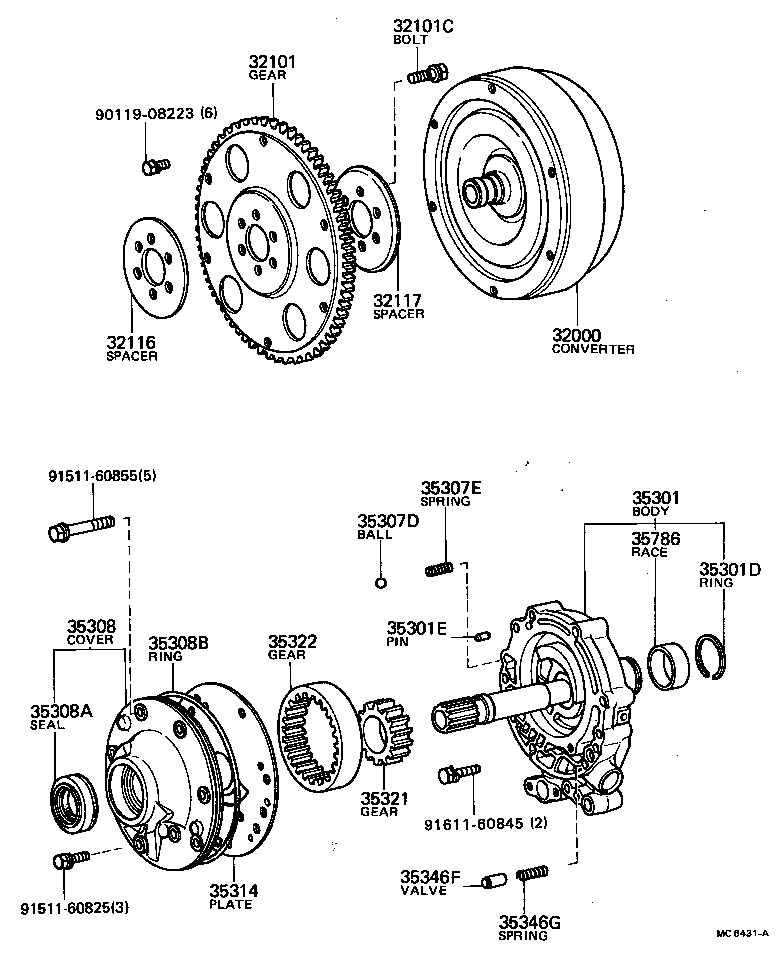

diagram 32000 32101 32101C 32116 32117 35301 35301D 35301E 35307D 35307E 35308 35308A 35308B 35314 35321 35322 35346F 35346G 35786 9011908223 9151160825 9151160855 9161160845
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-16010

AL11..3FC

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-16010

AL11..3FC

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10048

AL11..3FC

*10-1.25PX18-13

 6
90105-10016

AL11..3FC

 6
32116 - SPACER, DRIVE PLATE, FRONT
32116-12010

AL11..3FC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-12010

AL11..3FC

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-16010

AL11..3FC

 1
35301D - RING, SHAFT SNAP (FOR FRONT OIL PUMP)
90520-38001

AL11..3FC

 1
35301E - PIN, STRAIGHT (FOR FRONT OIL PUMP)
90250-10232

AL11..3FC

 4
35307D - BALL, REVERSE SHIFT RESTRICT
90360-06004

AL11..3FC

 1
35307E - SPRING, COMPRESSION (FOR REVERSE SHIFT RESTRICT)
90501-06009

AL11..3FC

 1
35308 - COVER SUB-ASSY, FRONT OIL PUMP
35308-16010

AL11..3FC

 1
35308A - SEAL, OIL (FOR FRONT OIL PUMP COVER)
90311-38129

AL11..3FC

 1
35308B - RING, TRANSMISSION CASE SEAL
90301-99012

AL11..3FC

 1
35314 - PLATE, FRONT OIL PUMP
35314-16010

AL11..3FC

 1
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-16030

AL11..3FC

T=15.272-15.286

 1
35321-16010

AL11..3FC

T=15.235-15.249

 1
35321-16020

AL11..3FC

T=15.250-15.271

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-16030

AL11..3FC

T=15.272-15.286

 1
35322-16020

AL11..3FC

T=15.250-15.271

 1
35322-16010

AL11..3FC

T=15.235-15.249

 1
35346F - VALVE, PRIMING(FOR FRONT OIL PUMP)
35346-16010

AL11..3FC

 1
35346G - SPRING, COMPRESSION(FOR PRIMING VALVE)
90501-07014

AL11..3FC

 1
35786 - RACE, DRIVE SPROCKET
35787-16010

AL11..3FC

 1
Common parts
90119-08223
91511-60825
91511-60855
91611-60845

(7908- )3FC

Click highlighted areas on diagram

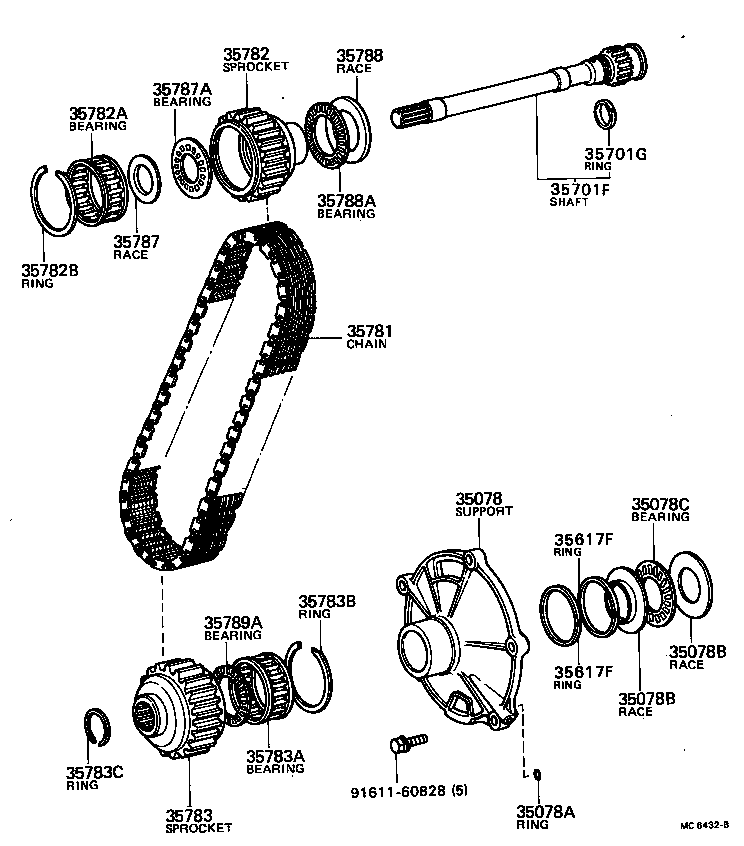

diagram 35078 35078A 35078B 35078B 35078C 35617F 35617F 35701F 35701G 35781 35782 35782A 35782B 35783 35783A 35783B 35783C 35787 35787A 35788 35788A 35789A 9161160828
Part # Description Qty Price
35078 - SUPPORT SUB-ASSY, FRONT
35078-16010

AL11..3FC

 1
35078A - RING, O (FOR FRONT SUPPORT)
90301-05002

AL11..3FC

 2
35078B - RACE, THRUST BEARING (FOR FRONT SUPPORT REAR)
35789-16040

AL11..3FC

RR

 1
35789-16060

AL11..3FC

FR

 1
35078B - RACE, THRUST BEARING (FOR FRONT SUPPORT REAR)
35789-16040

AL11..3FC

RR

 1
35789-16060

AL11..3FC

FR

 1
35078C - BEARING, THRUST NEEDLE ROLLER (FOR FRONT SUPPORT REAR)
90374-32002

AL11..3FC

 1
35617F - RING, CLUTCH DRUM OIL SEAL
35617-16010

AL11..3FC

 2
35617F - RING, CLUTCH DRUM OIL SEAL
35617-16010

AL11..3FC

 2
35701F - SHAFT SUB-ASSY, INPUT
35701-16010

AL11..3FC

 1
35701G - RING, INPUT SHAFT OIL SEAL
35712-16010

AL11..3FC

 1
35781 - CHAIN, PRIMARY DRIVE
35781-16010

AL11..3FC

 1
35782 - SPROCKET, DRIVE
35782-16010

AL11..3FC

 1
35782A - BEARING, NEEDLE ROLLER(FOR DRIVE SPROCKET)
90364-46002

AL11..3FC

KOYO

 1
90364-46001

AL11..3FC

NSK

 1
35782B - RING, HOLE SNAP(FOR DRIVE SPROCKET)
90521-55002

AL11..3FC

 1
35783 - SPROCKET, DRIVEN
35783-16010

AL11..3FC

 1
35783A - BEARING, NEEDLE ROLLER(FOR DRIVEN SPROCKET)
90364-46002

AL11..3FC

KOYO

 1
90364-46001

AL11..3FC

NSK

 1
35783B - RING, HOLE SNAP(FOR DRIVEN SPROCKET)
90521-55002

AL11..3FC

 1
35783C - RING, SHAFT SNAP(FOR DRIVEN SPROCKET SET)
90520-27001

AL11..3FC

 1
35787 - RACE, THRUST BEARING (FOR DRIVE SPROCKET FRONT)
35789-16110

AL11..3FC

 1
35787A - BEARING, THRUST NEEDLE ROLLER (FOR DRIVE SPROCKET FRONT
90374-26001

AL11..3FC

 1
35788 - RACE, THRUST BEARING (FOR DRIVE SPROCKET REAR)
35789-16150

AL11..3FC

 1
35788A - BEARING, THRUST NEEDLE ROLLER (FOR DRIVE SPROCKET REAR)
90374-37001

AL11..3FC

 1
35789A - BEARING, THRUST NEEDLE ROLLER (FOR DRIVEN SPROCKET)
90374-30004

AL11..3FC

 1
Common parts
91611-60828
