Toyota Tercel AL11 FRONT AXLE HOUSING & DIFFERENTIAL

Manufacturers Home
Toyota
GR
TERCEL
AL11L-ZEHDS (1979)
4301 - FRONT AXLE HOUSING & DIFFERENTIAL

AL11L-ZEHDS (1979)

Toyota Tercel

Production Aug 1979 - Apr 1982

Engine 2A

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(7908- )3FC

Click highlighted areas on diagram

Part #	Description	Period	Qty
41110G - SEAL, OIL (FOR DIFFERENTIAL SIDE)
90311-32004	AL11	01/1979 - 08/1979	2
90311-32006	AL11	08/1979 - 04/1982	2
41110G - SEAL, OIL (FOR DIFFERENTIAL SIDE)
90311-32004	AL11	01/1979 - 08/1979	2
90311-32006	AL11	08/1979 - 04/1982	2
41201S - FINAL GEAR KIT, DIFFERENTIAL, FRONT
41201-19295	AL11 R=41:11	01/1979 - 06/1979	1
41201-19335	AL11..3FC R=41:11	08/1979 - 08/1980	1
41201-19365	AL11..3FC R=43:12	08/1980 - 04/1982	1
41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
90368-33002	AL11	01/1979 - 04/1982	1
41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
90368-28002	AL11	01/1979 - 04/1982	1
41211C - GEAR, DIFFERENTIAL RING
90201-34002	AL11 T=1.53,T=1.53	01/1979 - 04/1982	1
90201-34003	AL11 T=1.56,T=1.56	01/1979 - 04/1982	1
90201-34004	AL11 T=1.59,T=1.59	01/1979 - 04/1982	1
90201-34011	AL11 T=1.80,T=1.80	01/1979 - 04/1982	1
90201-34006	AL11 T=1.65,T=1.65	01/1979 - 04/1982	1
90201-34010	AL11 T=1.77,T=1.77	01/1979 - 04/1982	1
90201-34001	AL11 T=1.50,T=1.50	01/1979 - 04/1982	1
90201-34013	AL11 T=1.86,T=1.86	01/1979 - 04/1982	1
90201-34005	AL11 T=1.62,T=1.62	01/1979 - 04/1982	1
90201-34009	AL11 T=1.74,T=1.74	01/1979 - 04/1982	1
90201-34007	AL11 T=1.68,T=1.68	01/1979 - 04/1982	1
90201-34012	AL11 T=1.83,T=1.83	01/1979 - 04/1982	1
90201-34016	AL11 T=1.95,T=1.95	01/1979 - 04/1982	1
90201-34014	AL11 T=1.89,T=1.89	01/1979 - 04/1982	1
90201-34015	AL11 T=1.92,T=1.92	01/1979 - 04/1982	1
90201-34008	AL11 T=1.71,T=1.71	01/1979 - 04/1982	1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11365	AL11	01/1979 - 04/1982	6
41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-16010	AL11	01/1979 - 04/1982	3
41231A - NUT, DRIVE PINION LOCK
90179-28001	AL11	01/1979 - 04/1982	1
41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41231-16010	AL11	01/1979 - 04/1982	1
41311 - CASE, FRONT DIFFERENTIAL
41311-16010	AL11	01/1979 - 06/1979	1
41311A - BEARING (FOR FRONT DIFFERENTIAL CASE)
90366-35002	AL11	01/1979 - 04/1982	2
41311A - BEARING (FOR FRONT DIFFERENTIAL CASE)
90366-35002	AL11	01/1979 - 04/1982	2
41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
90201-40005	AL11 T=2.74,T=2.74	01/1979 - 04/1982	2
90201-40004	AL11 T=2.71,T=2.71	01/1979 - 04/1982	2
90201-40002	AL11 T=2.65,T=2.65	01/1979 - 04/1982	2
90201-40001	AL11 T=2.62,T=2.62	01/1979 - 04/1982	2
90201-40003	AL11 T=2.68,T=2.68	01/1979 - 04/1982	2
90201-40007	AL11 T=2.80,T=2.80	01/1979 - 04/1982	2
90201-40010	AL11 T=2.89,T=2.89	01/1979 - 04/1982	2
90201-40022	AL11 T=3.25,T=3.25	01/1979 - 04/1982	2
90201-40018	AL11 T=3.13,T=3.13	01/1979 - 04/1982	2
90201-40019	AL11 T=3.16,T=3.16	01/1979 - 04/1982	2
90201-40006	AL11 T=2.77,T=2.77	01/1979 - 04/1982	2
90201-40013	AL11 T=2.98,T=2.98	01/1979 - 04/1982	2
90201-40024	AL11 T=3.04,T=3.04	01/1979 - 04/1982	2
90201-40017	AL11 T=3.10,T=3.10	01/1979 - 04/1982	2
90201-40008	AL11 T=2.83,T=2.83	01/1979 - 04/1982	2
90201-40011	AL11 T=2.92,T=2.92	01/1979 - 04/1982	2
90201-40023	AL11 T=3.28,T=3.28	01/1979 - 04/1982	2
90201-40012	AL11 T=2.95,T=2.95	01/1979 - 04/1982	2
90201-40009	AL11 T=2.86,T=2.86	01/1979 - 04/1982	2
90201-40014	AL11 T=3.01,T=3.01	01/1979 - 04/1982	2
90201-40021	AL11 T=3.22,T=3.22	01/1979 - 04/1982	2
90201-40020	AL11 T=3.19,T=3.19	01/1979 - 04/1982	2
90201-40016	AL11 T=3.07,T=3.07	01/1979 - 04/1982	2
41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
90201-40005	AL11 T=2.74,T=2.74	01/1979 - 04/1982	2
90201-40004	AL11 T=2.71,T=2.71	01/1979 - 04/1982	2
90201-40002	AL11 T=2.65,T=2.65	01/1979 - 04/1982	2
90201-40001	AL11 T=2.62,T=2.62	01/1979 - 04/1982	2
90201-40003	AL11 T=2.68,T=2.68	01/1979 - 04/1982	2
90201-40007	AL11 T=2.80,T=2.80	01/1979 - 04/1982	2
90201-40010	AL11 T=2.89,T=2.89	01/1979 - 04/1982	2
90201-40022	AL11 T=3.25,T=3.25	01/1979 - 04/1982	2
90201-40018	AL11 T=3.13,T=3.13	01/1979 - 04/1982	2
90201-40019	AL11 T=3.16,T=3.16	01/1979 - 04/1982	2
90201-40006	AL11 T=2.77,T=2.77	01/1979 - 04/1982	2
90201-40013	AL11 T=2.98,T=2.98	01/1979 - 04/1982	2
90201-40024	AL11 T=3.04,T=3.04	01/1979 - 04/1982	2
90201-40017	AL11 T=3.10,T=3.10	01/1979 - 04/1982	2
90201-40008	AL11 T=2.83,T=2.83	01/1979 - 04/1982	2
90201-40011	AL11 T=2.92,T=2.92	01/1979 - 04/1982	2
90201-40023	AL11 T=3.28,T=3.28	01/1979 - 04/1982	2
90201-40012	AL11 T=2.95,T=2.95	01/1979 - 04/1982	2
90201-40009	AL11 T=2.86,T=2.86	01/1979 - 04/1982	2
90201-40014	AL11 T=3.01,T=3.01	01/1979 - 04/1982	2
90201-40021	AL11 T=3.22,T=3.22	01/1979 - 04/1982	2
90201-40020	AL11 T=3.19,T=3.19	01/1979 - 04/1982	2
90201-40016	AL11 T=3.07,T=3.07	01/1979 - 04/1982	2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-16010	AL11	01/1979 - 04/1982	2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-16010	AL11	01/1979 - 04/1982	2
41341F - PINION, FRONT DIFFERENTIAL
41341-20011	AL11	01/1979 - 04/1982	2
41341F - PINION, FRONT DIFFERENTIAL
41341-20011	AL11	01/1979 - 04/1982	2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-04053	AL11	01/1979 - 04/1982	1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-16010	AL11	01/1979 - 04/1982	1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12010	AL11	01/1979 - 04/1982	2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12010	AL11	01/1979 - 04/1982	2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-12030	AL11 T=1.60,T=1.58-1.62	01/1979 - 04/1982	2
41361-12020	AL11 T=1.55,T=1.53-1.57	01/1979 - 04/1982	2
41361-12040	AL11 T=1.65,T=1.63-1.67	01/1979 - 04/1982	2
41361-12060	AL11 T=1.75,T=1.73-1.77	01/1979 - 04/1982	2
41361-12010	AL11 T=1.50,T=1.48-1.52	01/1979 - 04/1982	2
41361-12050	AL11 T=1.70,T=1.68-1.72	01/1979 - 04/1982	2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-12030	AL11 T=1.60,T=1.58-1.62	01/1979 - 04/1982	2
41361-12020	AL11 T=1.55,T=1.53-1.57	01/1979 - 04/1982	2
41361-12040	AL11 T=1.65,T=1.63-1.67	01/1979 - 04/1982	2
41361-12060	AL11 T=1.75,T=1.73-1.77	01/1979 - 04/1982	2
41361-12010	AL11 T=1.50,T=1.48-1.52	01/1979 - 04/1982	2
41361-12050	AL11 T=1.70,T=1.68-1.72	01/1979 - 04/1982	2

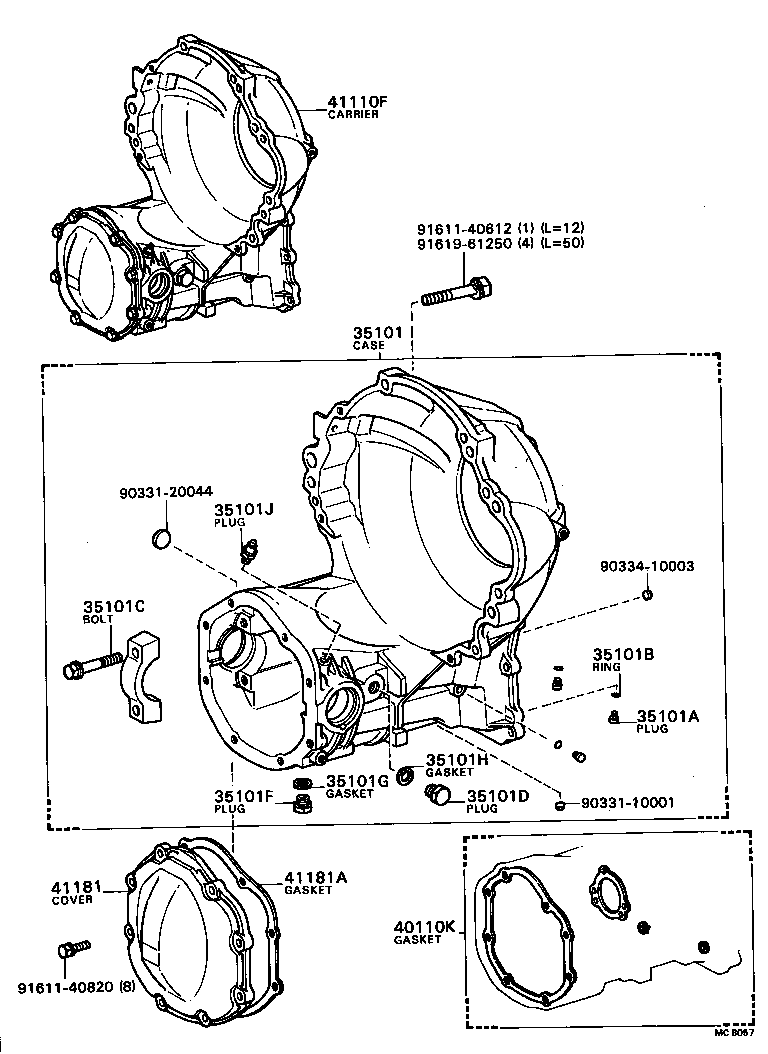

Linked diagrams
3511

(7908- )3FC

Click highlighted areas on diagram

Part #	Description	Period	Qty
35101 - CASE SUB-ASSY, TORQUE CONVERTER & DIFFERENTIAL
35101-16010	AL11..3FC	08/1979 - 04/1982	1
35101A - PLUG, STRAIGHT (FOR TORQUE CONVERTER & DIFFERENTIAL CAS
90334-07006	AL11..3FC	08/1979 - 04/1982	3
35101B - RING, O (FOR TORQUE CONVERTER & DIFFERENTIAL CASE)
90301-04002	AL11..3FC	08/1979 - 04/1982	3
35101C - BOLT, HEXAGON (FOR DIFFERENTIAL BEARING CAP SETTING)
90105-10008	AL11..3FC	08/1979 - 04/1982	4
35101D - PLUG (FOR DIFFERENTIAL FILLER)
90341-18006	AL11..3FC	08/1980 - 04/1982	1
90341-18002	AL11..3FC	08/1979 - 08/1980	1
35101F - PLUG SUB-ASSY, DRAIN (FOR AUTOMATIC TRANSMISSION CASE)
90341-18057	AL11..3FC	08/1979 - 04/1982	1
35101G - GASKET, DRAIN PLUG (FOR AUTOMATIC TRANSMISSION CASE)
12157-10010	AL11..3FC	08/1979 - 04/1982	1
35101H - GASKET (FOR DIFFERENTIAL FILLER)
12157-10010	AL11..3FC	08/1979 - 04/1982	1
35101J - PLUG, BREATHER (FOR AUTOMATIC TRANSMISSION CASE)
90930-03077	AL11..3FC	08/1979 - 04/1982	1
40110K - GASKET KIT, DIFFERENTIAL CARRIER
04412-16010	AL11..3FC	08/1979 - 04/1982	1
41110F - CARRIER ASSY, DIFFERENTIAL, FRONT
41110-16020	AL11 *AXC=Y302,R=41:11	01/1979 - 06/1979	1
41110-16070	AL11..3FC *AXC=Y372,R=3.583	08/1980 - 04/1982	1
41110-16050	AL11..3FC	08/1979 - 08/1980	1
41181 - COVER, FRONT DIFFERENTIAL CARRIER
41181-16010	AL11	01/1979 - 06/1979	1
41181A - GASKET, FRONT DIFFERENTIAL CARRIER COVER
41182-16010	AL11	01/1979 - 04/1982	1
Common parts
90331-10001
90331-20044
90334-10003
91611-40612
91611-40820
91619-61250
