AL11L-ZDHDSW (1979)
Toyota Tercel
Production
Aug 1979
-
Apr 1982
Engine
2A
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7908- )3FC

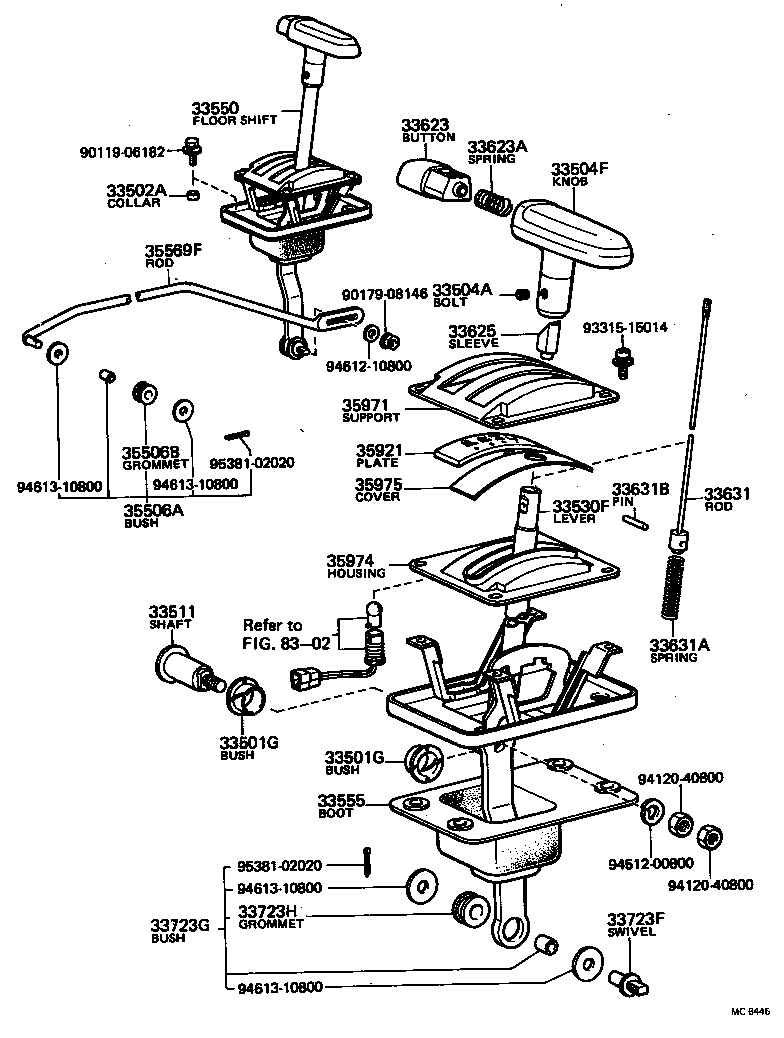

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-16045 |
AL11..3FC |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-16045 |
AL11..3FC |
2 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06005 |
AL11..3FC |
4 | ||
| 33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90113-05034 |
AL11..3FC |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-1209001 |
AL11..3FC BLACK,BLACK,TRIM2# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-16010 |
AL11..3FC |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33503-16030 |
AL11..LHD..3FC |
1 | ||
| 33530-16010 |
AL11 |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-16030 |
AL11..LHD..3FC |
1 | ||
| 33550-1607004 |
AL11..LHD..3FC BLUE,BLUE,TRIM8# |
1 | ||
| 33550-1607001 |
AL11..LHD..3FC BLACK,BLACK,TRIM2# |
1 | ||
| 33550-1607014 |
AL11..LHD..3FC BLUE,BLUE,TRIM8# |
1 | ||
| 33550-1607006 |
AL11..LHD..3FC LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-16010 |
AL11..3FC |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-12031 |
AL11..3FC |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-09009 |
AL11..3FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-22020 |
AL11..3FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-30050 |
AL11..3FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07005 |
AL11..3FC |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90254-04017 |
AL11..3FC |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
AL11..3FC |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
AL11..3FC |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
AL11..3FC |
1 | ||
| 35506A - BUSH (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90999-99017 |
AL11..3FC |
1 | ||
| 35506B - GROMMET (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90480-17177 |
AL11..3FC |
1 | ||
| 35569F - ROD, TRANSMISSION CONTROL, 1ST (FOR FLOOR SHIFT) | ||||
| 33675-16010 |
AL11..3FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-16020 |
AL11..LHD..3FC |
1 | ||
| 35921-16040 |
AL11..LHD..3FC |
1 | ||
| 35971 - SUPPORT, POSITION INDICATOR | ||||
| 35971-16010 |
AL11..3FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-16010 |
AL11..3FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-16010 |
AL11..3FC |
1 | ||
| Common parts | ||||
| 90119-06182 | ||||
| 90179-08146 | ||||
| 93315-15014 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||
| Linked diagrams | ||||
| 8302 | ||||
