RCK10L-THMSUV (1993)

Toyota T100

Production Sep 1993 - Aug 1996
Engine 3RZF
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

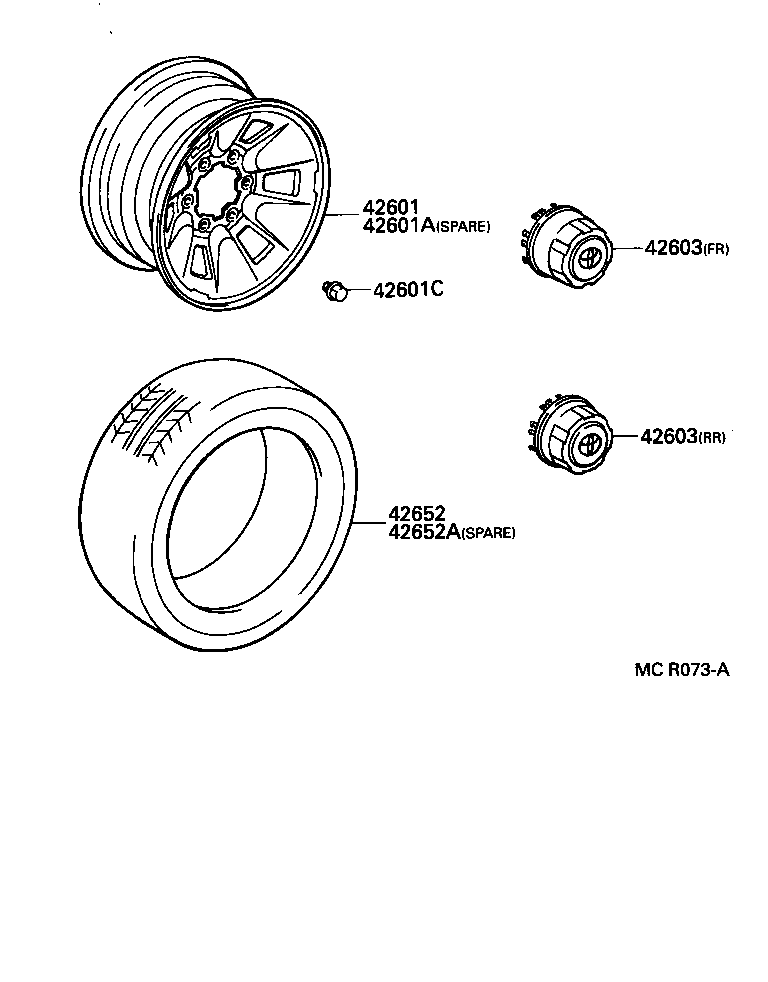

ILLUST NO. 1 OF 2(9309- )

Click highlighted areas on diagram

diagram 42601 42601A 42601C 42603 42603 42652 42652A
Part # Description Qty Price
42601 - WHEEL, DISC
42601-6043003

RCK10

16X6J,OFFSET 30, #,SILVER M.

 4
42601A - WHEEL, DISC (FOR SPARE)
42601-6043003

RCK10

16X6J,OFFSET 30, #,SILVER M.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01075

RCK10

 24
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-35510

RCK10

*STE,FR

 2
42603-35520

RCK10

*STE,RR

 2
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-35510

RCK10

*STE,FR

 2
42603-35520

RCK10

*STE,RR

 2
42652 - TIRE
42605-35291

RCK10

205R16C-6PR

 4
42652A - TIRE (FOR SPARE)
42605-35291

RCK10

205R16C-6PR

 1

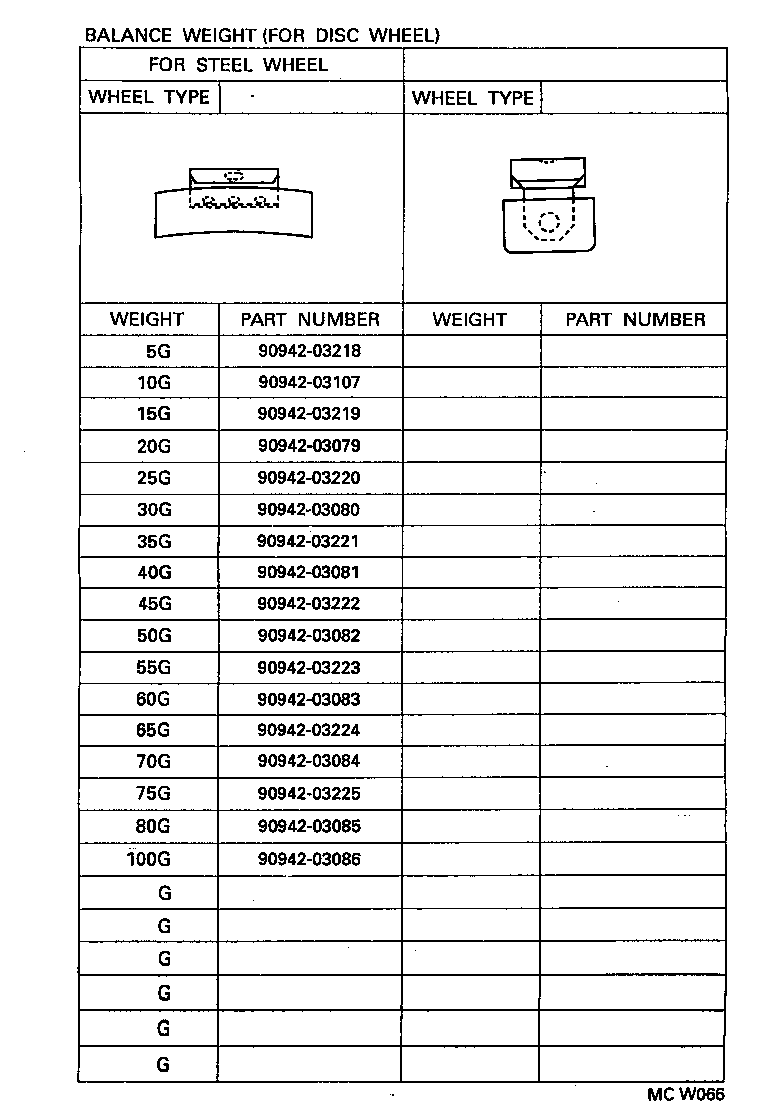

ILLUST NO. 2 OF 2(9309- )

Click highlighted areas on diagram

diagram 9094203079 9094203080 9094203081 9094203082 9094203083 9094203084 9094203085 9094203086 9094203107 9094203218 9094203219 9094203220 9094203221 9094203222 9094203223 9094203224 9094203225
Part # Description Qty Price
Common parts
90942-03079
90942-03080
90942-03081
90942-03082
90942-03083
90942-03084
90942-03085
90942-03086
90942-03107
90942-03218
90942-03219
90942-03220
90942-03221
90942-03222
90942-03223
90942-03224
90942-03225
