RCK10L-THMRUV (1993)
Toyota T100
Production
Sep 1993
-
Aug 1996
Engine
3RZF
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

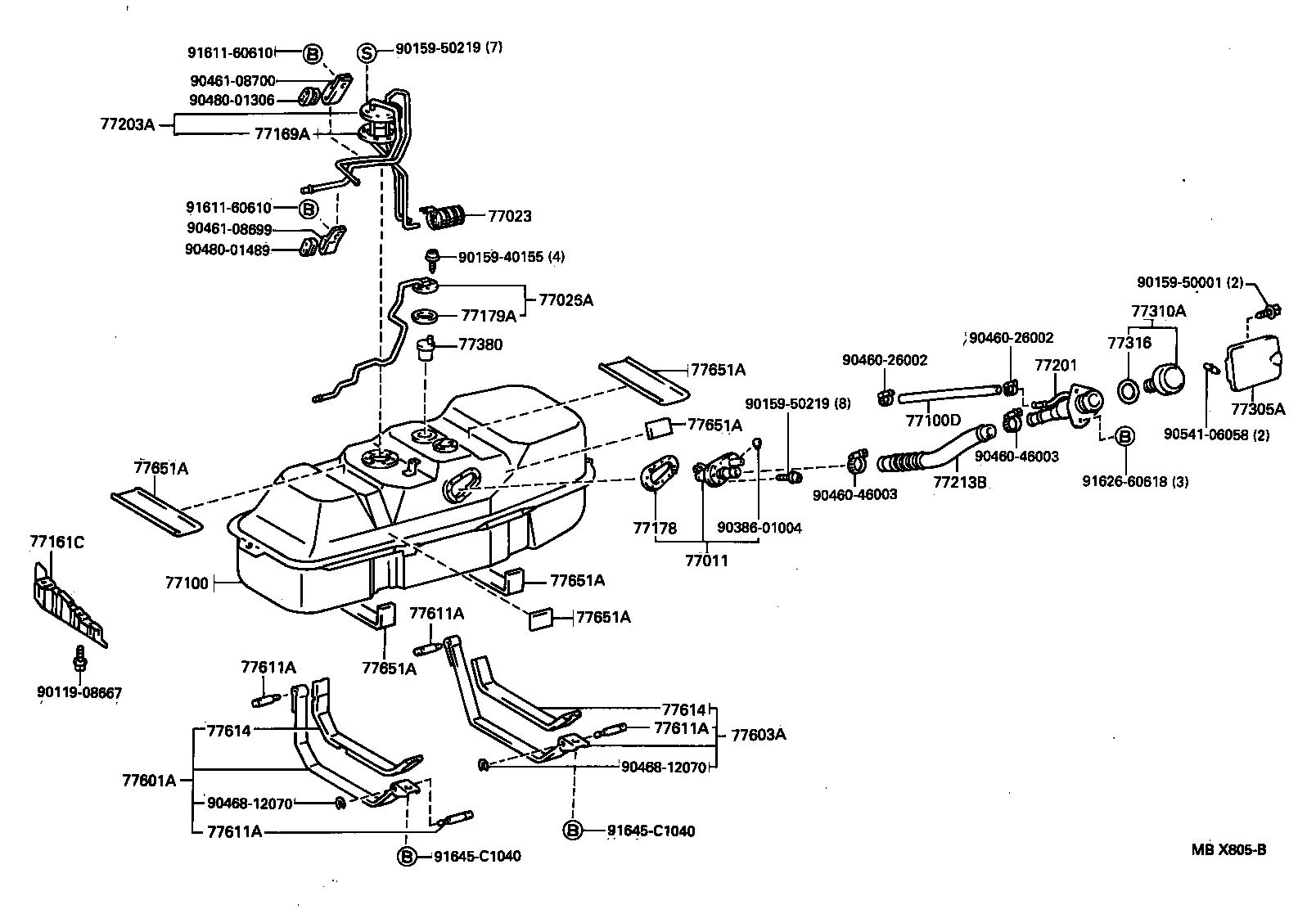

ILLUST NO. 1 OF 2(9309- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-34020 |
RCK10 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12031 |
RCK10 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-34031 |
RCK10 |
1 | ||
| 77026-34030 |
RCK10 |
1 | ||
| 77026-34020 |
RCK10 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-34020 |
RCK10 |
1 | ||
| 77001-34040 |
RCK10 |
1 | ||
| 77001-34041 |
RCK10 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-24041 |
RCK10 L=270 |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-34030 |
RCK10 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14010 |
RCK10 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-34010 |
RCK10 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
RCK10 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-34030 |
RCK10 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-34010 |
RCK10 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-34010 |
RCK10 L=280 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-34030 |
RCK10 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-35080 |
RCK10 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
RCK10 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
RCK10 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-34010 |
RCK10 |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-34010 |
RCK10 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-34010 |
RCK10 |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-34010 |
RCK10 |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-34010 |
RCK10 |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-34010 |
RCK10 |
4 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-34020 |
RCK10 RR |
1 | ||
| 77681-34010 |
RCK10 FR |
1 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-34020 |
RCK10 RR |
1 | ||
| 77681-34010 |
RCK10 FR |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-34030 |
RCK10 45X425 |
1 | ||
| 77651-34040 |
RCK10 45X490 |
1 | ||
| 77651-34020 |
RCK10 70X45 |
2 | ||
| 77651-34010 |
RCK10 70X240 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-34030 |
RCK10 45X425 |
1 | ||
| 77651-34040 |
RCK10 45X490 |
1 | ||
| 77651-34020 |
RCK10 70X45 |
2 | ||
| 77651-34010 |
RCK10 70X240 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-34030 |
RCK10 45X425 |
1 | ||
| 77651-34040 |
RCK10 45X490 |
1 | ||
| 77651-34020 |
RCK10 70X45 |
2 | ||
| 77651-34010 |
RCK10 70X240 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-34030 |
RCK10 45X425 |
1 | ||
| 77651-34040 |
RCK10 45X490 |
1 | ||
| 77651-34020 |
RCK10 70X45 |
2 | ||
| 77651-34010 |
RCK10 70X240 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-34030 |
RCK10 45X425 |
1 | ||
| 77651-34040 |
RCK10 45X490 |
1 | ||
| 77651-34020 |
RCK10 70X45 |
2 | ||
| 77651-34010 |
RCK10 70X240 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-34030 |
RCK10 45X425 |
1 | ||
| 77651-34040 |
RCK10 45X490 |
1 | ||
| 77651-34020 |
RCK10 70X45 |
2 | ||
| 77651-34010 |
RCK10 70X240 |
2 | ||
| Common parts | ||||
| 90119-08667 | ||||
| 90159-40155 | ||||
| 90159-50001 | ||||
| 90159-50219 | ||||
| 90386-01004 | ||||
| 90460-26002 | ||||
| 90460-46003 | ||||
| 90461-08699 | ||||
| 90461-08700 | ||||
| 90468-12070 | ||||
| 90480-01306 | ||||
| 90480-01489 | ||||
| 90541-06058 | ||||
| 91611-60610 | ||||
| 91626-60618 | ||||
| 91645-C1040 | ||||

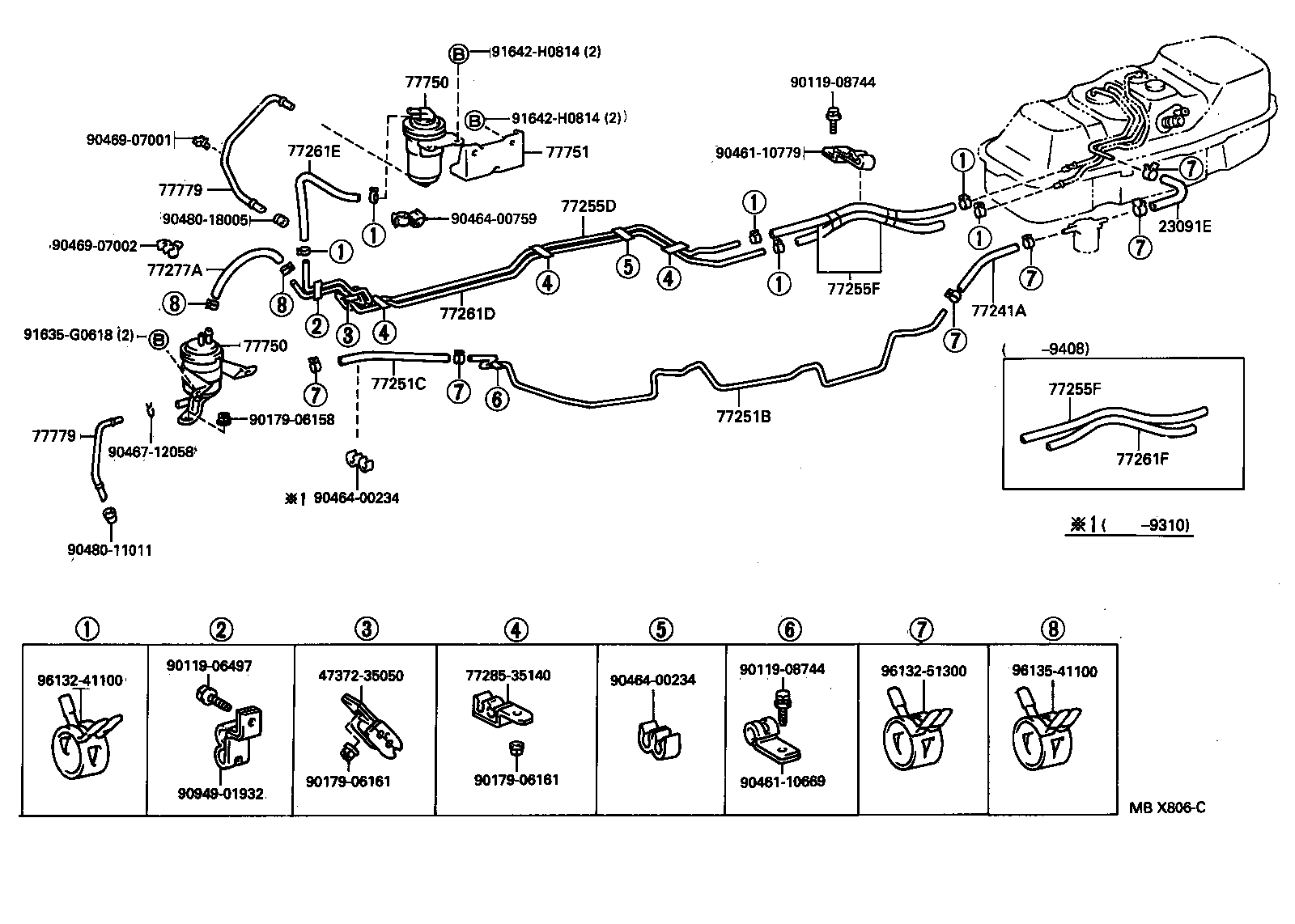

ILLUST NO. 2 OF 2(9309- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091E - TUBE SUB-ASSY, FUEL PUMP | ||||
| 95333-08020 |
3RZF..RCK10 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08030 |
RCK10 *H,L=300 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-34040 |
RCK10 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95333-08030 |
RCK10 *H,L=300 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-34021 |
RCK10 |
1 | ||
| 77255-34020 |
RCK10 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06060 |
RCK10 *H,L=600 |
1 | ||
| 77019-34030 |
RCK10 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06060 |
RCK10 *H,L=600 |
1 | ||
| 77019-34030 |
RCK10 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-34020 |
RCK10 |
1 | ||
| 77261-34021 |
RCK10 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 90445-12275 |
RCK10 L=440 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06048 |
RCK10 *H,L=480 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95334-06032 |
RCK10 *H,L=320 |
1 | ||
| 77750 - CANISTER ASSY, CHARCOAL | ||||
| 77740-34030 |
RCK10 RR |
1 | ||
| 77740-34040 |
RCK10 FR |
1 | ||
| 77750 - CANISTER ASSY, CHARCOAL | ||||
| 77740-34030 |
RCK10 RR |
1 | ||
| 77740-34040 |
RCK10 FR |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-34010 |
RCK10 |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-34020 |
RCK10 FR |
1 | ||
| 77779-34010 |
RCK10 RR |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-34020 |
RCK10 FR |
1 | ||
| 77779-34010 |
RCK10 RR |
1 | ||
| Common parts | ||||
| 47372-35050 | ||||
| 77285-35140 | ||||
| 90119-06497 | ||||
| 90119-08744 | ||||
| 90179-06158 | ||||
| 90179-06161 | ||||
| 90461-10669 | ||||
| 90461-10779 | ||||
| 90464-00234 | ||||
| 90464-00759 | ||||
| 90467-12058 | ||||
| 90469-07001 | ||||
| 90469-07002 | ||||
| 90480-11011 | ||||
| 90480-18005 | ||||
| 90949-01932 | ||||
| 91635-G0618 | ||||
| 91642-H0814 | ||||
| 96132-41100 | ||||
| 96132-51300 | ||||
| 96135-41100 | ||||
