RCK10L-THMRUV (1993)
Toyota T100
Production
Sep 1993
-
Aug 1996
Engine
3RZF
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9309- )

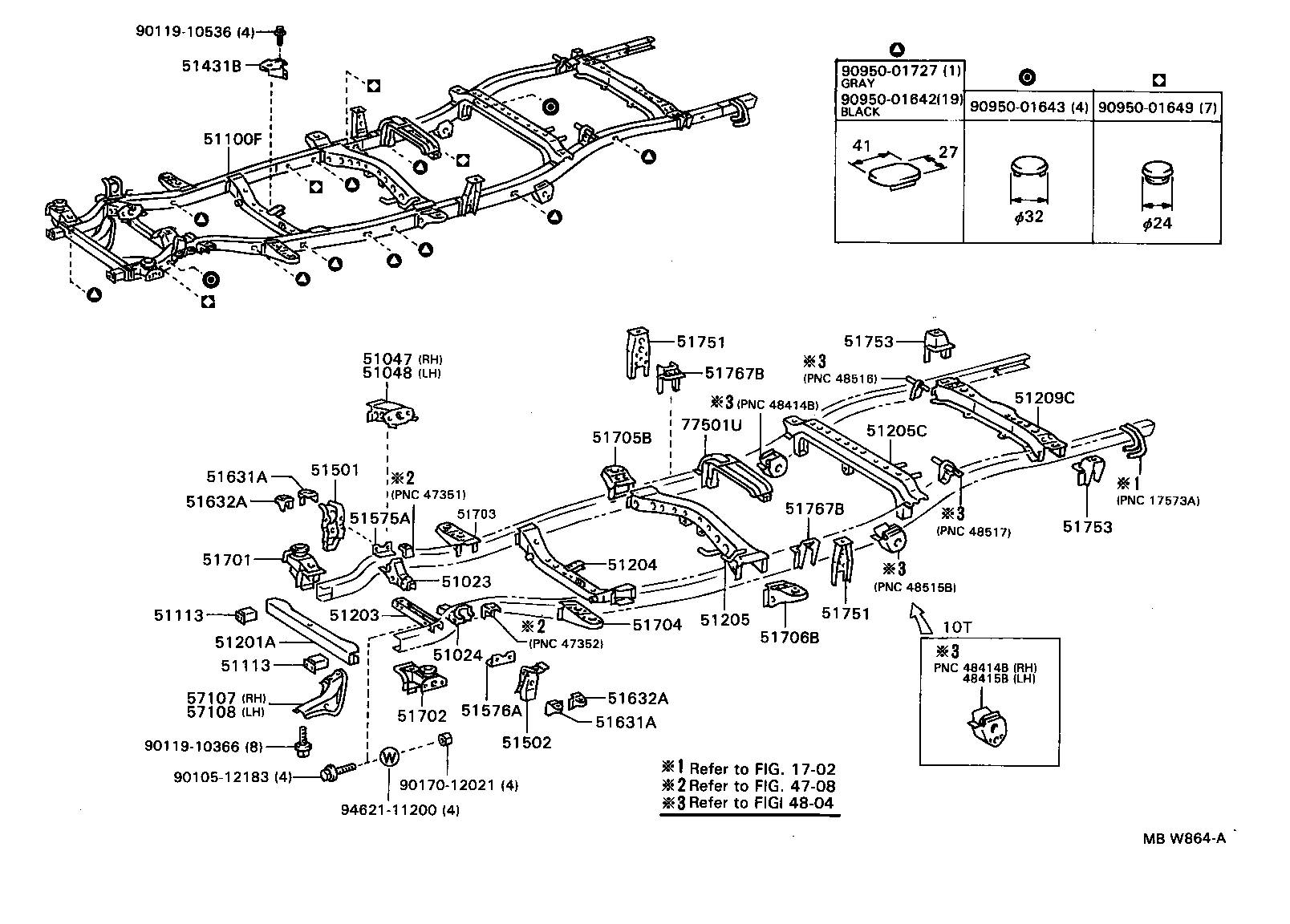

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51023 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH | ||||
| 51023-34010 |
RCK10 |
1 | ||
| 51024 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH | ||||
| 51024-34010 |
RCK10 |
1 | ||
| 51047 - BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, RH | ||||
| 51401-34010 |
RCK10 |
1 | ||
| 51048 - BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, LH | ||||
| 51402-34011 |
RCK10 |
1 | ||
| 51402-34010 |
RCK10 |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-34061 |
RCK10 |
1 | ||
| 51001-34060 |
RCK10 |
1 | ||
| 51113 - EXTENSOIN, SIDE RAIL, FRONT | ||||
| 51113-34011 |
RCK10 |
2 | ||
| 51113 - EXTENSOIN, SIDE RAIL, FRONT | ||||
| 51113-34011 |
RCK10 |
2 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-34010 |
RCK10 |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-34010 |
RCK10 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-34031 |
RCK10 |
1 | ||
| 51203-34030 |
RCK10 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-34030 |
RCK10 |
1 | ||
| 51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-34030 |
RCK10 |
1 | ||
| 51205-34020 |
RCK10 |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51209-34020 |
RCK10 |
1 | ||
| 51209-34011 |
RCK10 |
1 | ||
| 51431B - BRACKET, ENGINE REAR MOUNTING | ||||
| 51431-34030 |
RCK10 |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-34010 |
RCK10 |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-34010 |
RCK10 |
1 | ||
| 51575A - REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.2 RH | ||||
| 51575-34010 |
RCK10 |
1 | ||
| 51576A - REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.2 LH | ||||
| 51576-34010 |
RCK10 |
1 | ||
| 51631A - STOPPER, FRONT SUSPENSION REBOUND, NO.1 | ||||
| 51631-34010 |
RCK10 |
2 | ||
| 51631A - STOPPER, FRONT SUSPENSION REBOUND, NO.1 | ||||
| 51631-34010 |
RCK10 |
2 | ||
| 51632A - STOPPER, FRONT SUSPENSION REBOUND, NO.2 | ||||
| 51632-34010 |
RCK10 |
2 | ||
| 51632A - STOPPER, FRONT SUSPENSION REBOUND, NO.2 | ||||
| 51632-34010 |
RCK10 |
2 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-34010 |
RCK10 |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51702-34010 |
RCK10 |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-34010 |
RCK10 |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-34010 |
RCK10 |
1 | ||
| 51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH | ||||
| 51705-34010 |
RCK10 |
1 | ||
| 51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH | ||||
| 51706-34010 |
RCK10 |
1 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51751-34011 |
RCK10 |
2 | ||
| 51751-34012 |
RCK10 |
2 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51751-34011 |
RCK10 |
2 | ||
| 51751-34012 |
RCK10 |
2 | ||
| 51753 - BRACKET, BODY SUPPORT, NO.2 | ||||
| 51753-34010 |
RCK10 |
2 | ||
| 51753 - BRACKET, BODY SUPPORT, NO.2 | ||||
| 51753-34010 |
RCK10 |
2 | ||
| 51767B - REINFORCEMENT, BODY SUPPORT BRACKET | ||||
| 51767-34010 |
RCK10 |
2 | ||
| 51767B - REINFORCEMENT, BODY SUPPORT BRACKET | ||||
| 51767-34010 |
RCK10 |
2 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-34010 |
RCK10 |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-34010 |
RCK10 |
1 | ||
| 77501U - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-34010 |
RCK10 |
1 | ||
| Common parts | ||||
| 90105-12183 | ||||
| 90119-10366 | ||||
| 90119-10536 | ||||
| 90170-12021 | ||||
| 90950-01642 | ||||
| 90950-01643 | ||||
| 90950-01649 | ||||
| 90950-01727 | ||||
| 94621-11200 | ||||
| Linked diagrams | ||||
| 1702 | ||||
| 4708 | ||||
| 4804 | ||||
