MA70R-BLPVZQ (1988)

Toyota Supra

Production Aug 1988 - May 1993
Engine 7MGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

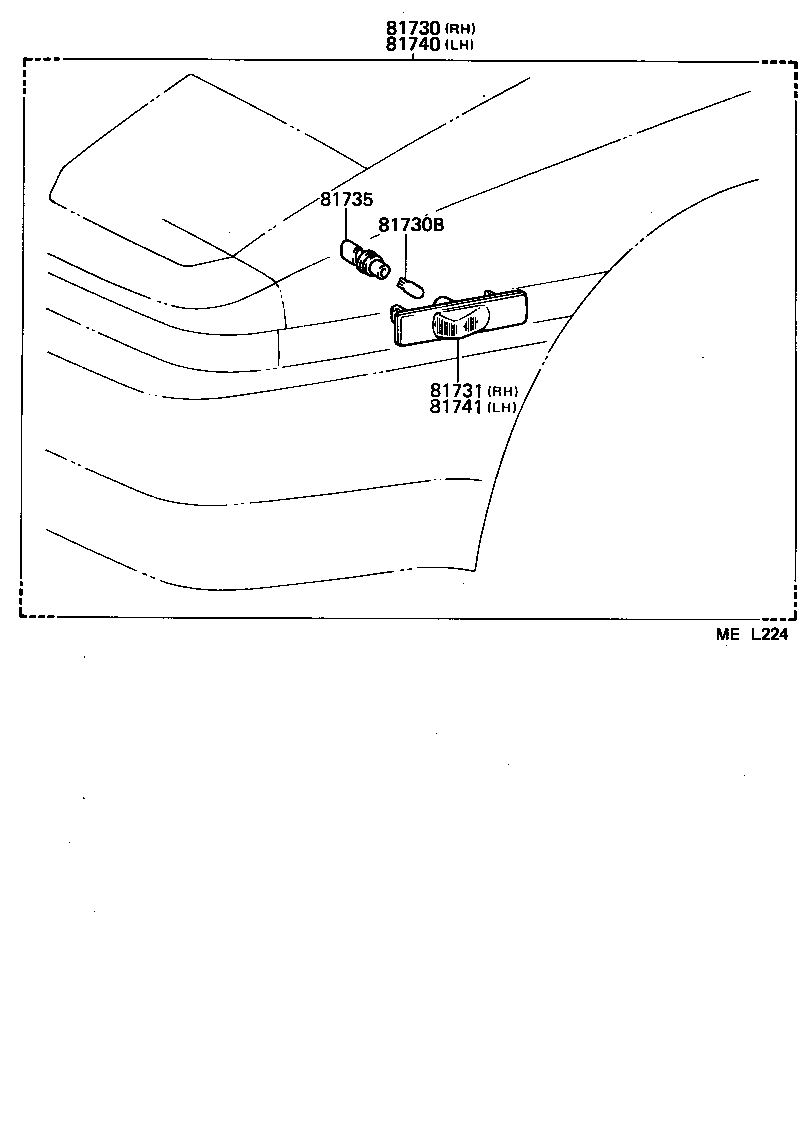

Click highlighted areas on diagram

diagram 81730 81730B 81731 81735 81740 81741
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-14160

MA70..ARL,C

 1
81730-20131

MA70

 1
81730-20131

MA70..GEN,V

 1
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-12050

MA70

12V 5W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-20131

MA70

 1
81731-20131

MA70..GEN,V

 1
81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP
81735-12180

MA70

 2
81735-12180

MA70..GEN,V

 2
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81740-20131

MA70

 1
81740-20131

MA70..GEN,V

 1
81740-14150

MA70..ARL,C

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81741-20131

MA70..GEN,V

 1
81741-20131

MA70

 1
