MA70R-BLPVZC (1988)

Toyota Supra

Production Aug 1988 - May 1993
Engine 7MGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

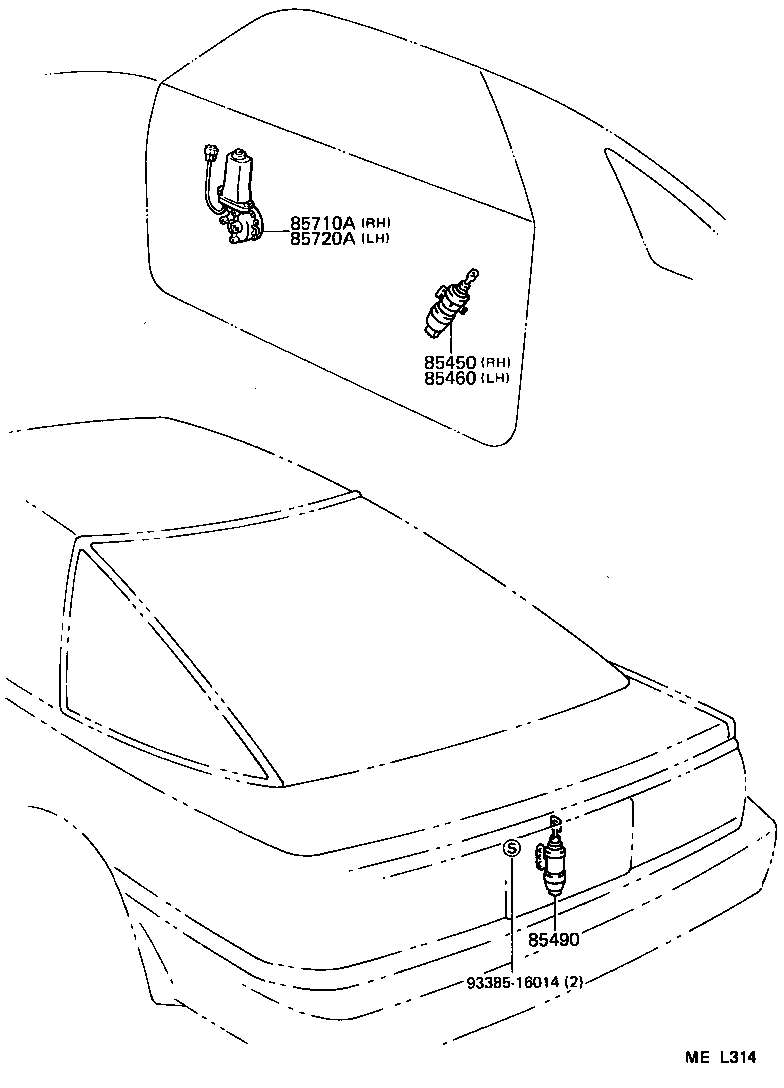

Click highlighted areas on diagram

diagram 85450 85460 85490 85710A 85720A 9338516014
Part # Description Qty Price
85450 - SOLENOID ASSY, DOOR CONTROL, FRONT RH
85450-14250

MA70

 1
85460 - SOLENOID ASSY, DOOR CONTROL, FRONT LH
85450-14260

MA70

 1
85490 - SOLENOID ASSY, DOOR CONTROL BACK
85450-14290

MA70..C,EUR

 1
85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH
85710-20060

MA70

 1
85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH
85720-20060

MA70

 1
Common parts
93385-16014
