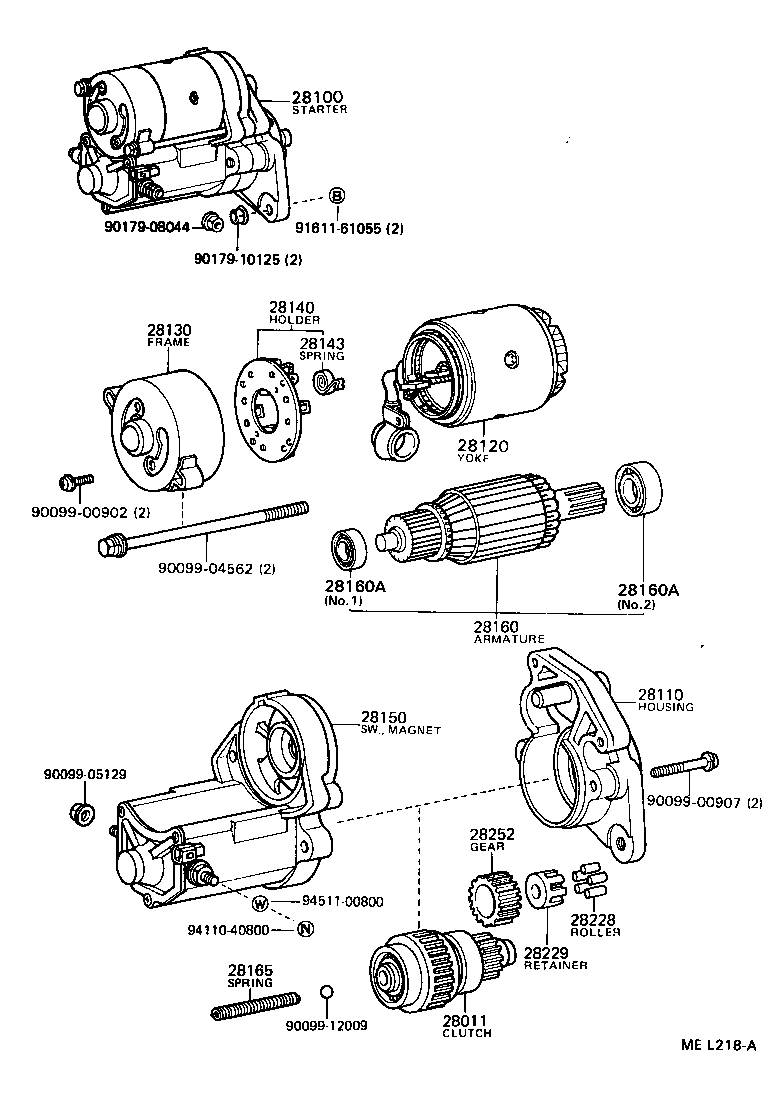

MA70R-BLPVZC (1988)
Toyota Supra
(8808- )
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
7MG#..MA70 |
1 | ||
| 28011-26042 |
7MG#..MA70 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-42040 |
7MG#..MA70 12V 1.0KW |
1 | ||
| 28100-42040 |
7MG#..MA70 12V 1.0KW |
1 | ||
| 28100-41060 |
7MG#..MA70 12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-41060 |
7MG#..MA70 |
1 | ||
| 28110-41060 |
7MG#..MA70 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
7MG#..MA70 |
1 | ||
| 28120-26071 |
7MG#..MA70 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-15020 |
7MG#..MA70 |
1 | ||
| 28130-15020 |
7MG#..MA70 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
7MG#..MA70 |
1 | ||
| 28140-26070 |
7MG#..MA70 |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
7MG#..MA70 |
4 | ||
| 90099-17112 |
7MG#..MA70 |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-41060 |
7MG#..MA70 |
1 | ||
| 28150-41060 |
7MG#..MA70 |
1 | ||
| 28150-42040 |
7MG#..MA70 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26070 |
7MG#..MA70 |
1 | ||
| 28160-26071 |
7MG#..MA70 |
1 | ||
| 28160-26071 |
7MG#..MA70 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
7MG#..MA70 NO.1 |
1 | ||
| 90099-10113 |
7MG#..MA70 NO.2 |
1 | ||
| 28253-45020 |
7MG#..MA70 NO.1 |
1 | ||
| 90099-10113 |
7MG#..MA70 NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
7MG#..MA70 NO.1 |
1 | ||
| 90099-10113 |
7MG#..MA70 NO.2 |
1 | ||
| 28253-45020 |
7MG#..MA70 NO.1 |
1 | ||
| 90099-10113 |
7MG#..MA70 NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
7MG#..MA70 |
1 | ||
| 28165-26040 |
7MG#..MA70 |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
7MG#..MA70 |
5 | ||
| 28228-26040 |
7MG#..MA70 |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
7MG#..MA70 |
1 | ||
| 28229-26040 |
7MG#..MA70 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
7MG#..MA70 |
1 | ||
| 28254-45020 |
7MG#..MA70 |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08044 | ||||
| 90179-10125 | ||||
| 91611-61055 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

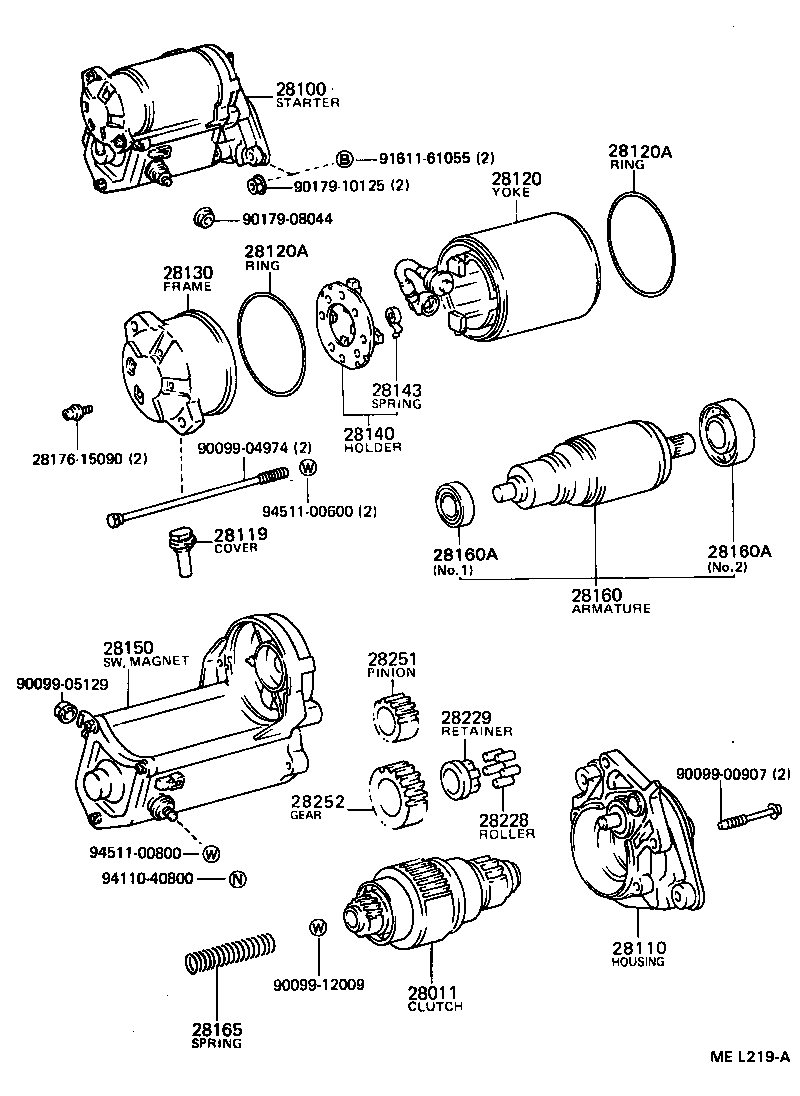

(8808- )
12V 1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
7MG#..MA70 |
1 | ||
| 28011-26042 |
7MG#..MA70 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-42040 |
7MG#..MA70 12V 1.0KW |
1 | ||
| 28100-42040 |
7MG#..MA70 12V 1.0KW |
1 | ||
| 28100-41060 |
7MG#..MA70 12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-41060 |
7MG#..MA70 |
1 | ||
| 28110-41060 |
7MG#..MA70 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
7MG#..MA70 |
1 | ||
| 28120-26071 |
7MG#..MA70 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-15020 |
7MG#..MA70 |
1 | ||
| 28130-15020 |
7MG#..MA70 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
7MG#..MA70 |
1 | ||
| 28140-26070 |
7MG#..MA70 |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
7MG#..MA70 |
4 | ||
| 90099-17112 |
7MG#..MA70 |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-41060 |
7MG#..MA70 |
1 | ||
| 28150-41060 |
7MG#..MA70 |
1 | ||
| 28150-42040 |
7MG#..MA70 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26070 |
7MG#..MA70 |
1 | ||
| 28160-26071 |
7MG#..MA70 |
1 | ||
| 28160-26071 |
7MG#..MA70 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
7MG#..MA70 NO.1 |
1 | ||
| 90099-10113 |
7MG#..MA70 NO.2 |
1 | ||
| 28253-45020 |
7MG#..MA70 NO.1 |
1 | ||
| 90099-10113 |
7MG#..MA70 NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
7MG#..MA70 NO.1 |
1 | ||
| 90099-10113 |
7MG#..MA70 NO.2 |
1 | ||
| 28253-45020 |
7MG#..MA70 NO.1 |
1 | ||
| 90099-10113 |
7MG#..MA70 NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
7MG#..MA70 |
1 | ||
| 28165-26040 |
7MG#..MA70 |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
7MG#..MA70 |
5 | ||
| 28228-26040 |
7MG#..MA70 |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
7MG#..MA70 |
1 | ||
| 28229-26040 |
7MG#..MA70 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
7MG#..MA70 |
1 | ||
| 28254-45020 |
7MG#..MA70 |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00907 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08044 | ||||
| 90179-10125 | ||||
| 91611-61055 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
