MA70R-BLPVFQ (1988)
Toyota Supra

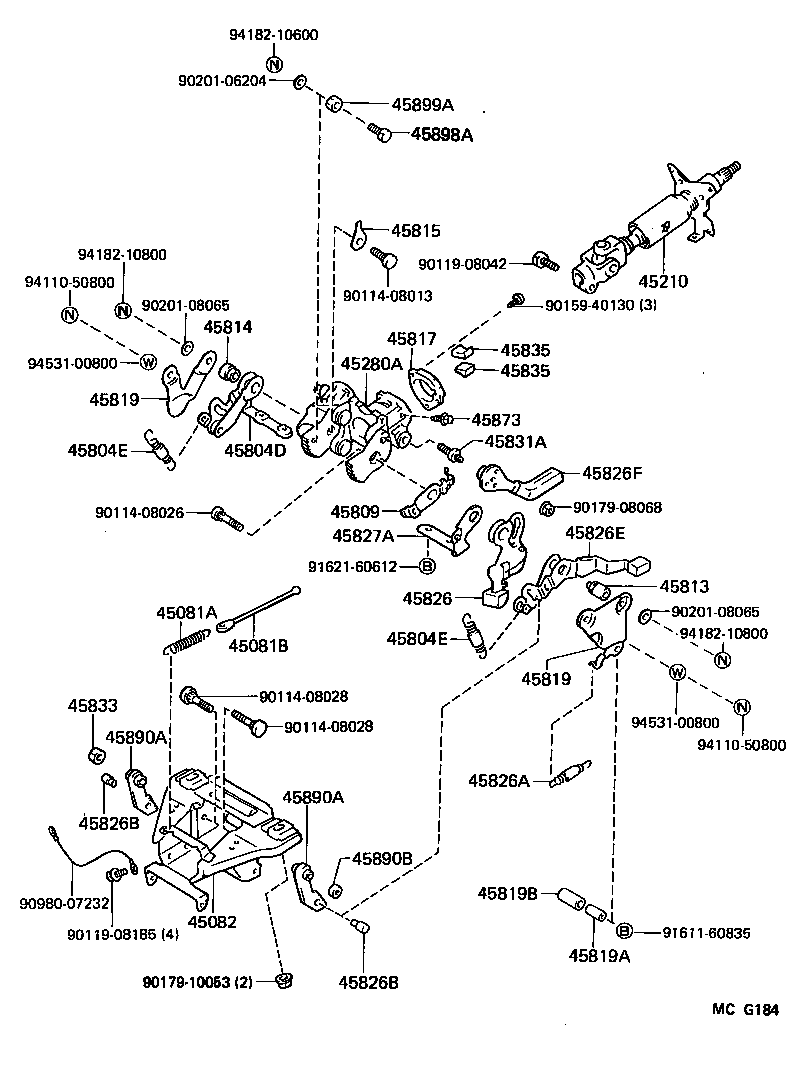

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-32003 |
MA70 |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02052 |
MA70 L=122 |
2 | ||
| 90945-02086 |
MA70 L=121 |
2 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-14060 |
MA70 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-14150 |
MA70..RHD |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-20351 |
MA70 |
1 | ||
| 45804D - LEVER SUB-ASSY, STEERING TILT(FOR TILT UP CONTROL) | ||||
| 45804-20040 |
MA70 |
1 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-13002 |
MA70 |
2 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-13002 |
MA70 |
2 | ||
| 45809 - COVER SUB-ASSY, ADJUSTER MEMORY | ||||
| 45809-20060 |
MA70 |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-20020 |
MA70 OD=17.996-18.003 |
1 | ||
| 45813-20060 |
MA70 OD=17.989-17.996 |
1 | ||
| 45813-20040 |
MA70 OD=18.010-18.017 |
1 | ||
| 45813-20030 |
MA70 OD=18.003-18.010 |
1 | ||
| 45813-20050 |
MA70 OD=18.017-18.024 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-20040 |
MA70 OD=18.017-18.024 |
1 | ||
| 45814-20020 |
MA70 OD=18.003-18.010 |
1 | ||
| 45814-20030 |
MA70 OD=18.010-18.017 |
1 | ||
| 45814-20050 |
MA70 OD=17.989-17.996 |
1 | ||
| 45814-20010 |
MA70 OD=17.996-18.003 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-20050 |
MA70 T=1.8 |
1 | ||
| 45815-20020 |
MA70 T=0.5 |
1 | ||
| 45815-20010 |
MA70 T=0.2 |
1 | ||
| 45815-20030 |
MA70 T=0.8 |
1 | ||
| 45815-20040 |
MA70 T=1.4 |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-14010 |
MA70 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-14020 |
MA70 LH |
1 | ||
| 45819-20020 |
MA70 RH |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-14020 |
MA70 LH |
1 | ||
| 45819-20020 |
MA70 RH |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08046 |
MA70 |
1 | ||
| 45819B - CUSHION(FOR TILT LEVER RETAINER) | ||||
| 90540-11007 |
MA70 |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-1403011 |
MA70..ARL BLACK,TRIM3#,8# |
1 | ||
| 45826-1403011 |
MA70..ARL,GEN BLACK,TRIM1#,3#,4#,8# |
1 | ||
| 45826-1403011 |
MA70..C,EUR BLACK,TRIM1#,4#,8# |
1 | ||
| 45826-1403011 |
MA70..V BLACK,TRIM1#,3#,8# |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-09005 |
MA70 |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 90241-06039 |
MA70 |
2 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 90241-06039 |
MA70 |
2 | ||
| 45826E - LEVER, STEERING TILT(FOR TILT ADJUST) | ||||
| 45804-14010 |
MA70 |
1 | ||
| 45826F - LEVER, STEERING TELESCOPIC | ||||
| 45804-20060 |
MA70 |
1 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45805-20010 |
MA70 |
1 | ||
| 45831A - BOLT, TELESCOPE LEVER LOCK | ||||
| 45831-20020 |
MA70 |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-20020 |
MA70 |
1 | ||
| 45835 - WEDGE, LOCK | ||||
| 45835-20050 |
MA70 BOLT SIDE |
1 | ||
| 45835-20040 |
MA70 TUBE SIDE |
1 | ||
| 45835 - WEDGE, LOCK | ||||
| 45835-20050 |
MA70 BOLT SIDE |
1 | ||
| 45835-20040 |
MA70 TUBE SIDE |
1 | ||
| 45873 - STOPPER, STEERING COLUMN TUBE | ||||
| 45873-20031 |
MA70 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20080 |
MA70 RH |
1 | ||
| 45890-20070 |
MA70 LH |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20080 |
MA70 RH |
1 | ||
| 45890-20070 |
MA70 LH |
1 | ||
| 45890B - SPACER(FOR TILT STEERING PAWL) | ||||
| 90560-13008 |
MA70 |
1 | ||
| 45898A - BOLT, RETURN SPRING SET | ||||
| 45898-22010 |
MA70 |
1 | ||
| 45899A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
MA70 |
1 | ||
| Common parts | ||||
| 90114-08013 | ||||
| 90114-08026 | ||||
| 90114-08028 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90159-40130 | ||||
| 90179-08068 | ||||
| 90179-10053 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90980-07232 | ||||
| 91611-60835 | ||||
| 91621-60612 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94531-00800 | ||||

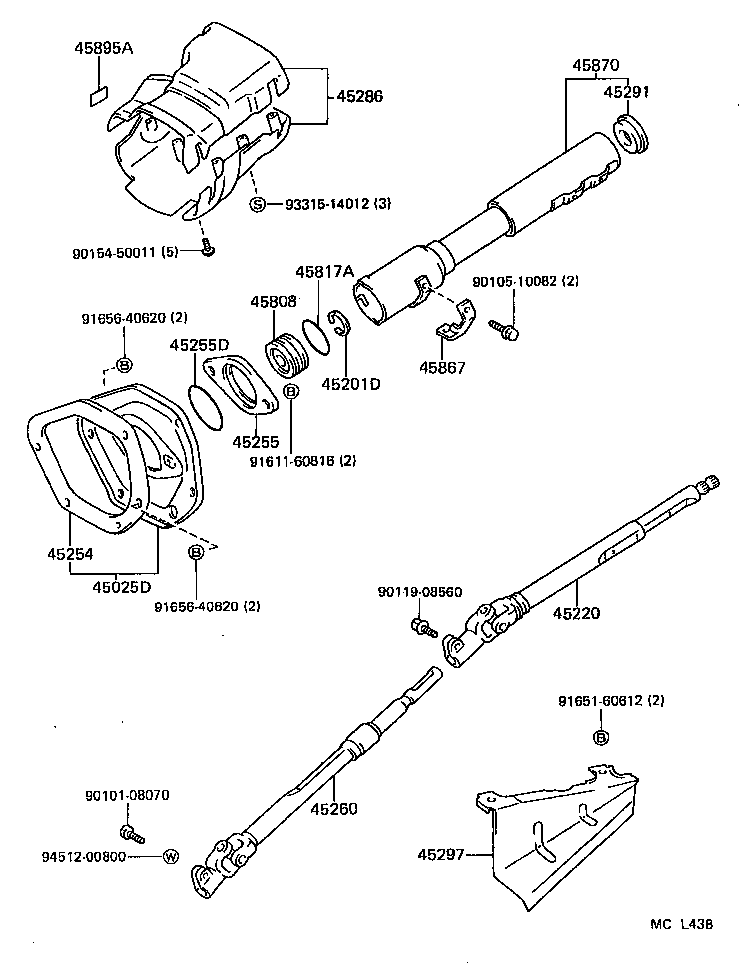

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-14150 |
MA70..RHD |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
MA70 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-14200 |
MA70..ARL W(TEMS) |
1 | ||
| 45220-14190 |
MA70 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-14050 |
MA70..RHD |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12030 |
MA70 |
1 | ||
| 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) | ||||
| 90301-59001 |
MA70 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-14280 |
MA70..RHD..(ARL,C,EUR) |
1 | ||
| 45260-14270 |
MA70..V |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-1492901 |
MA70..RHD..(C,EUR) BLACK,TRIM1#,4#,8# |
1 | ||
| 45286-1492901 |
MA70..SPR..5F..ARL;MA70..4FC..TWC..ARL BLACK,TRIM3#,8# |
1 | ||
| 45286-1492901 |
MA70..RHD..(ARL,GEN) BLACK,TRIM1#,3#,4#,8# |
1 | ||
| 45286-1493201 |
MA70..V BLACK,TRIM1#,3#,8# |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
MA70 |
1 | ||
| 45297 - INSULATOR, STEERING YOKE HEAT | ||||
| 45297-14030 |
MA70..RHD |
1 | ||
| 45808 - STOPPER SUB-ASSY, STEERING SHAFT THRUST | ||||
| 45808-12030 |
MA70 |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96711-24053 |
MA70 |
1 | ||
| 45867 - RETAINER, STEERING MAIN SHAFT STOPPER | ||||
| 45867-12010 |
MA70 |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-14160 |
MA70..ARL W(TEMS) |
1 | ||
| 45870-14150 |
MA70 |
1 | ||
| 45895A - PLATE, TILT STEERING CAUTION | ||||
| 45895-20080 |
MA70 |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90105-10082 | ||||
| 90119-08560 | ||||
| 90154-50011 | ||||
| 91611-60816 | ||||
| 91651-60612 | ||||
| 91656-40620 | ||||
| 93315-14012 | ||||
| 94512-00800 | ||||
