MA70R-BLPVFQ (1988)

Toyota Supra

Production Aug 1988 - Aug 1989
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

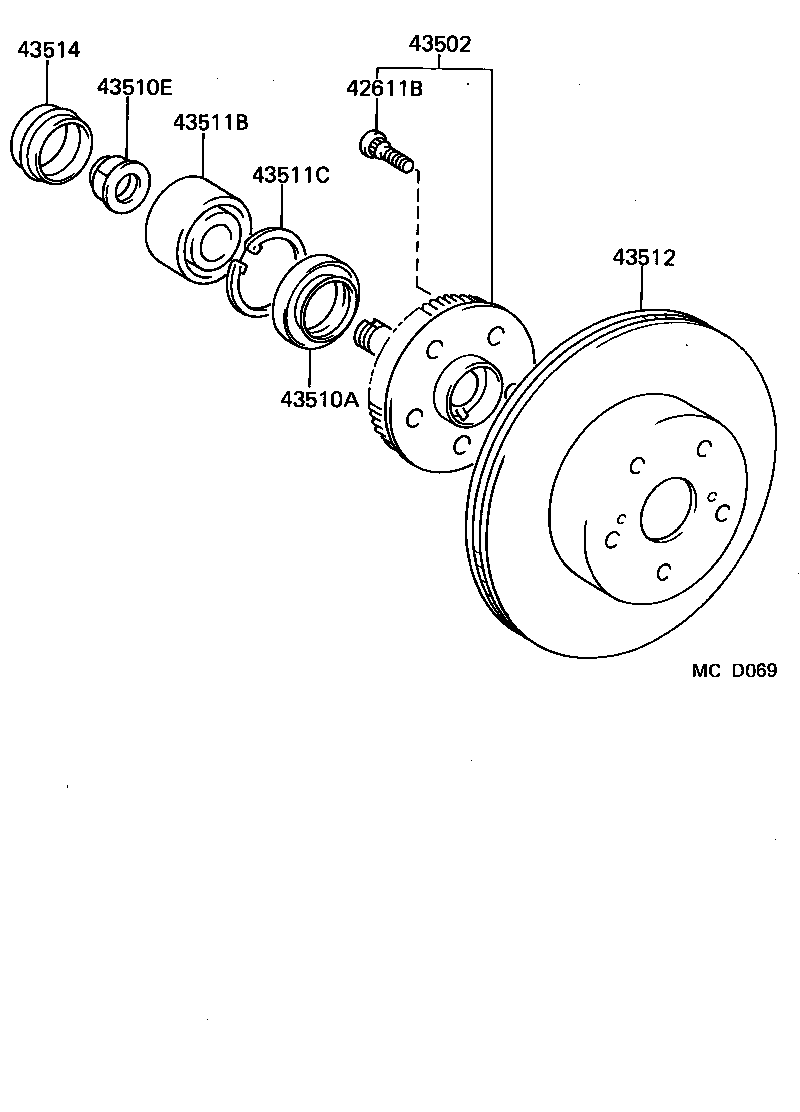

Click highlighted areas on diagram

diagram 42611B 43502 43510A 43510E 43511B 43511C 43512 43514
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02049

MA70

 10
43502 - HUB SUB-ASSY, FRONT AXLE
43502-14040

MA70..LHD..C;MA70..ARL,EUR,GEN,V

 2
43503-14020

MA70..RHD..C

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-50008

MA70

 2
43510E - NUT (FOR STEERING KNUCKLE)
90179-24005

MA70

 2
43511B - BEARING (FOR FRONT AXLE HUB)
90369-35034

MA70

 2
43511C - RING, HOLE SNAP (FOR FRONT AXLE HUB)
90521-82001

MA70

T=2.5

 2
43512 - DISC, FRONT
43512-14120

MA70..ARL,GEN

 2
43512-14141

MA70..C,EUR,V

 2
43514 - CAP, FRONT HUB GREASE
43514-14020

MA70

 2
