MA70R-BLPVF (1986)

Toyota Supra

Production Jan 1986 - Aug 1988
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )

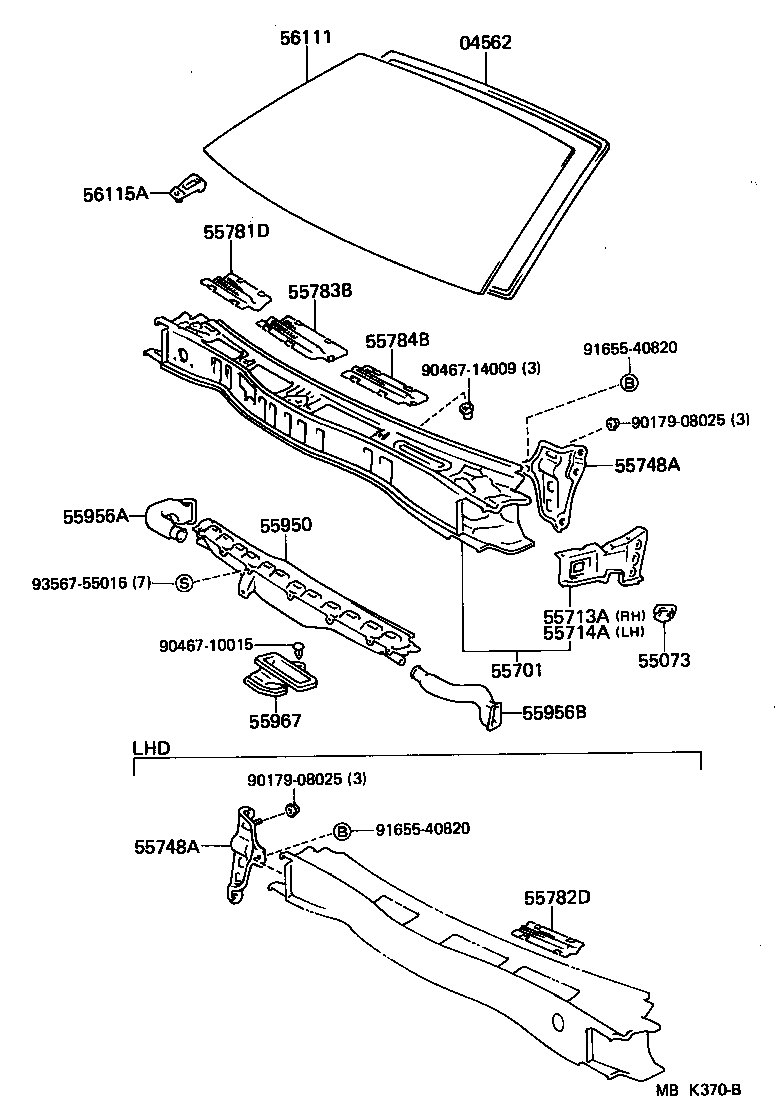

Click highlighted areas on diagram

diagram 04562 55073 55701 55713A 55714A 55748A 55748A 55781D 55782D 55783B 55784B 55950 55956A 55956B 55967 56111 56115A 9017908025 9017908025 9046710015 9046714009 9165540820 9165540820 9356755016
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-30040

MA70

 1
55073 - NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT
55073-20020

MA70

 2
55701 - PANEL SUB-ASSY, COWL
55700-14770

MA70..RHD

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-14100

MA70

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-14100

MA70

 1
55748A - BRACE, COWL TOP INNER TO PILLAR
55748-14040

MA70..RHD

 1
55748A - BRACE, COWL TOP INNER TO PILLAR
55748-14040

MA70..RHD

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-14130

MA70..RHD

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-14090

MA70..RHD

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-14110

MA70..RHD

 1
55950 - NOZZLE ASSY, DEFROSTER
55951-14170

MA70..RHD

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-14040

MA70

 1
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-14050

MA70

 1
55967 - NOZZLE, DEFROSTER, LOWER
55967-14010

MA70..RHD

 1
56111 - GLASS, WINDSHIELD
56111-14420

MA70..GEN

*TL,T=5.3,*TL,T=5.3

 1
56111-14410

MA70..GEN

*TZT,T=5.0,*TZT,T=5.0

 1
56111-14430

MA70..RHD..GEN

*LAM,T=5.3,*LAM,T=5.3,SUN SHADE

 1
56111-14411

MA70..GEN

*TZT,T=5.0,*TZT,T=5.0

 1
56111-14441

MA70..GCC,GEN,SA

*TL,T=5.3,*TL,T=5.3,SUN SHADE

 1
56111-14431

MA70..RHD..GEN

*LAM,T=5.3,*LAM,T=5.3,SUN SHADE

 1
56111-14421

MA70..GEN

*TL,T=5.3,*TL,T=5.3

 1
56111-14440

MA70..GCC,GEN,SA

*TL,T=5.3,*TL,T=5.3,SUN SHADE

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-14010

MA70

 2
Common parts
90179-08025
90467-10015
90467-14009
91655-40820
93567-55016
