MA70R-BLPVF (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )7MGE..LHD..EUG ; (8601- )7MGE..LHD..GCC,GEN ; (8601- )7MGE..RHD..E

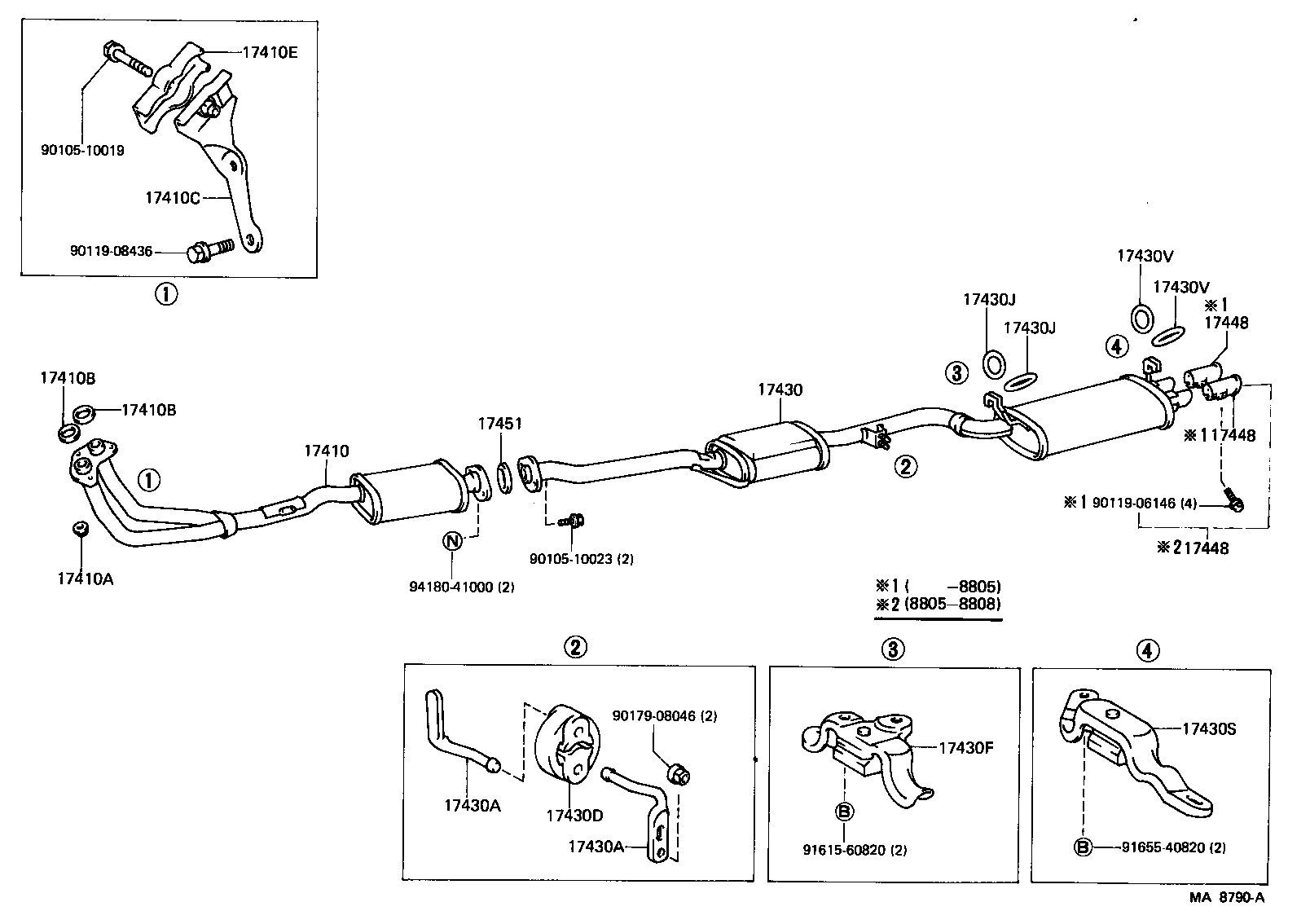

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-42060 |
7MGE..MA70..LHD..EUG;7MGE..MA70..LHD..(GCC,GEN);7MGE..MA70..RHD..(EUR,GEN,SA) |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
7MG#..MA70 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
7MGE..MA70 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
7MGE..MA70 |
2 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-41080 |
7MGE..MA70 |
1 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90917-04041 |
7MGE..MA70 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-42070 |
7MGE..MA70..LHD..EUG;7MGE..MA70..LHD..(GCC,GEN);7MGE..MA70..RHD..(EUR,GEN,SA) |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17561-70020 |
7MG#..MA70 LWR |
1 | ||
| 17572-70030 |
7MG#..MA70 UPR |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17561-70020 |
7MG#..MA70 LWR |
1 | ||
| 17572-70030 |
7MG#..MA70 UPR |
1 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-16020 |
7MG#..MA70 |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17508-13010 |
7MG#..MA70 |
1 | ||
| 17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 90301-36001 |
7MG#..MA70 |
2 | ||
| 17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 90301-36001 |
7MG#..MA70 |
2 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17508-26100 |
7MG#..MA70 |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-36001 |
7MG#..MA70 |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-36001 |
7MG#..MA70 |
2 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17448-74030 |
7MG#..MA70 |
2 | ||
| 17448-79015 |
7MG#..MA70 |
2 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17448-74030 |
7MG#..MA70 |
2 | ||
| 17448-79015 |
7MG#..MA70 |
2 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17448-74030 |
7MG#..MA70 |
2 | ||
| 17448-79015 |
7MG#..MA70 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06031 |
7MG#..MA70 FR |
1 | ||
| 90917-06032 |
7MG#..MA70 RR |
1 | ||
| Common parts | ||||
| 90105-10019 | ||||
| 90105-10023 | ||||
| 90119-06146 | ||||
| 90119-08436 | ||||
| 90179-08046 | ||||
| 91615-60820 | ||||
| 91655-40820 | ||||
| 94180-41000 | ||||
