MA70R-BLPVF (1988)
Toyota Supra
(8808- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-14060 |
MA70..RHD |
1 | ||
| 47159-14060 |
MA70..RHD |
1 | ||
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-14060 |
MA70..RHD..(ARL,GEN) |
1 | ||
| 47190-14080 |
MA70..RHD..C |
1 | ||
| 47190-14080 |
MA70..RHD..(C,EUR) |
1 | ||
| 47190-14060 |
MA70..RHD..(ARL,GEN) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-14340 |
MA70..RHD |
1 | ||
| 47311-14410 |
MA70..RHD..C W(*66) |
1 | ||
| 47311-14380 |
MA70..RHD..(C,EUR) W(*66) |
1 | ||
| 47311-14380 |
MA70..RHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10200 |
MA70..RHD |
1 | ||
| 90412-10180 |
MA70..RHD..C W(*66) |
1 | ||
| 90412-10137 |
MA70..RHD..(C,EUR) W(*66) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-14200 |
MA70..RHD |
1 | ||
| 47312-14210 |
MA70..RHD..(C,EUR) W(*66) |
1 | ||
| 47312-14240 |
MA70..RHD..C W(*66) |
1 | ||
| 47312-14200 |
MA70..RHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-14241 |
MA70..RHD |
1 | ||
| 47313-14271 |
MA70..RHD..C W(*66) |
1 | ||
| 47313-14270 |
MA70..RHD..(C,EUR) W(*66) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02489 |
MA70 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02489 |
MA70 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
MA70 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
MA70 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
MA70 |
4 | ||
| 90430-10074 |
MA70 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
MA70 |
4 | ||
| 90430-10074 |
MA70 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
MA70 |
4 | ||
| 90430-10074 |
MA70 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
MA70 |
4 | ||
| 90430-10074 |
MA70 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-14190 |
MA70..RHD..(C,EUR) W(*66) |
1 | ||
| 47314-14161 |
MA70..RHD |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02493 |
MA70 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02493 |
MA70 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-14200 |
MA70..RHD |
1 | ||
| 47321-14210 |
MA70..RHD |
1 | ||
| 47321-14210 |
MA70..RHD..(C,EUR) W(*66) |
1 | ||
| 47321-14240 |
MA70..RHD..C W(*66) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10116 |
MA70 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-14320 |
MA70..RHD..(C,EUR) W(*66) |
1 | ||
| 47322-14310 |
MA70..RHD |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10004 |
MA70 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-14130 |
MA70 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-14010 |
MA70 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-14010 |
MA70 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-14041 |
MA70 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-14021 |
MA70 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-14021 |
MA70..RHD;MA70..LHD..(C,EUR) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-14010 |
MA70..RHD |
1 | ||
| 47371-14010 |
MA70..RHD..(C,EUR) W(*66) |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-30010 |
MA70 |
1 | ||
| Common parts | ||||
| 90119-08561 | ||||
| 90461-06055 | ||||
| 90468-08034 | ||||
| 90523-12004 | ||||
| 90949-01501 | ||||
| 91611-60614 | ||||
| 91616-40614 | ||||
| 91651-40616 | ||||
| 91651-60640 | ||||
| 96991-10080 | ||||

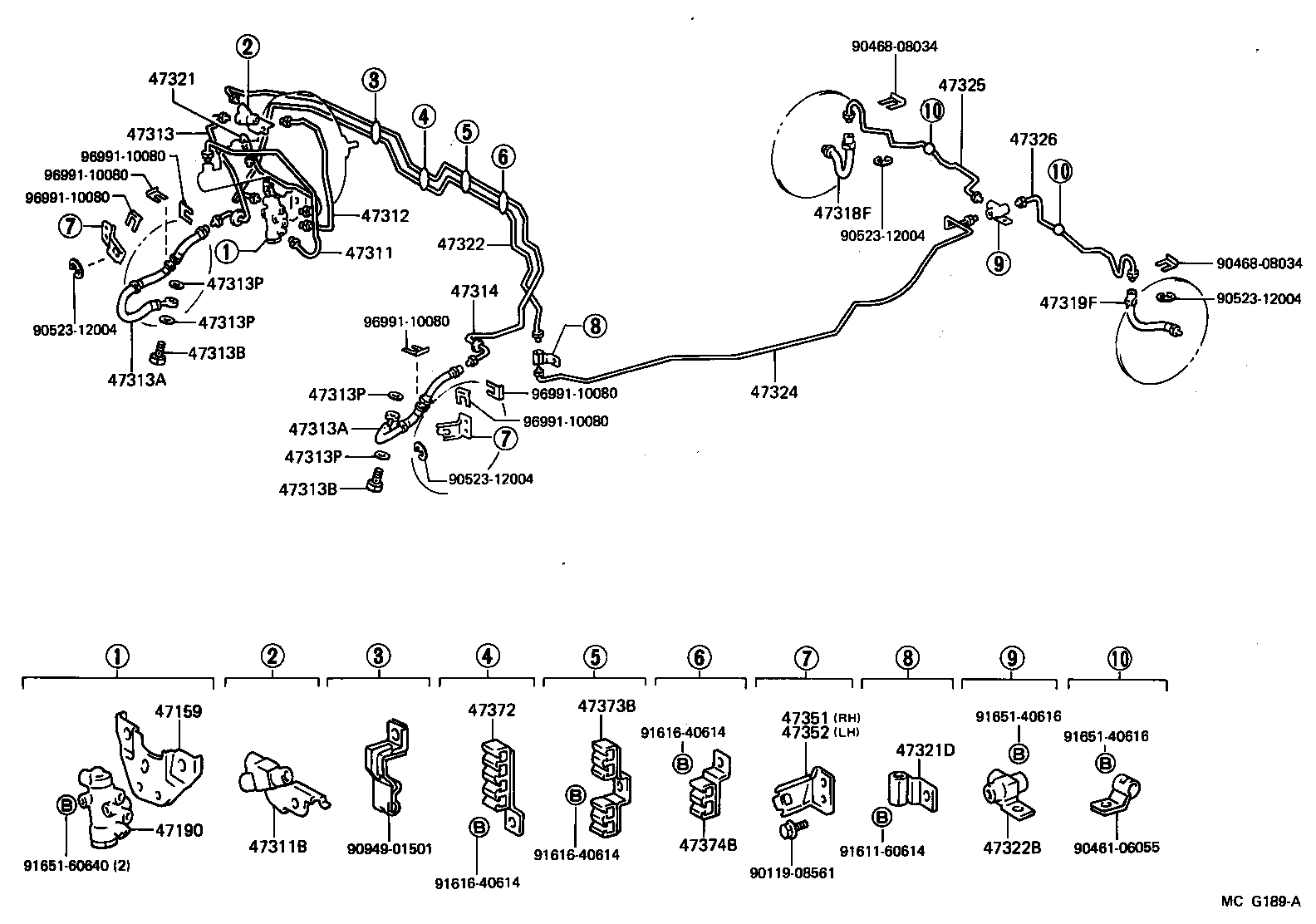

ILLUST NO. 1 OF 2(8808- )RHD
W(ANTI-LOCK BRAKE SYSTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-14060 |
MA70..RHD |
1 | ||
| 47159-14060 |
MA70..RHD |
1 | ||
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-14060 |
MA70..RHD..(ARL,GEN) |
1 | ||
| 47190-14080 |
MA70..RHD..C |
1 | ||
| 47190-14080 |
MA70..RHD..(C,EUR) |
1 | ||
| 47190-14060 |
MA70..RHD..(ARL,GEN) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-14340 |
MA70..RHD |
1 | ||
| 47311-14410 |
MA70..RHD..C W(*66) |
1 | ||
| 47311-14380 |
MA70..RHD..(C,EUR) W(*66) |
1 | ||
| 47311-14380 |
MA70..RHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10200 |
MA70..RHD |
1 | ||
| 90412-10180 |
MA70..RHD..C W(*66) |
1 | ||
| 90412-10137 |
MA70..RHD..(C,EUR) W(*66) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-14200 |
MA70..RHD |
1 | ||
| 47312-14210 |
MA70..RHD..(C,EUR) W(*66) |
1 | ||
| 47312-14240 |
MA70..RHD..C W(*66) |
1 | ||
| 47312-14200 |
MA70..RHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-14241 |
MA70..RHD |
1 | ||
| 47313-14271 |
MA70..RHD..C W(*66) |
1 | ||
| 47313-14270 |
MA70..RHD..(C,EUR) W(*66) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02489 |
MA70 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02489 |
MA70 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
MA70 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
MA70 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
MA70 |
4 | ||
| 90430-10074 |
MA70 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
MA70 |
4 | ||
| 90430-10074 |
MA70 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
MA70 |
4 | ||
| 90430-10074 |
MA70 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
MA70 |
4 | ||
| 90430-10074 |
MA70 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-14190 |
MA70..RHD..(C,EUR) W(*66) |
1 | ||
| 47314-14161 |
MA70..RHD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47312-14220 |
MA70..RHD..(C,EUR) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02493 |
MA70 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02493 |
MA70 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-14200 |
MA70..RHD |
1 | ||
| 47321-14210 |
MA70..RHD |
1 | ||
| 47321-14210 |
MA70..RHD..(C,EUR) W(*66) |
1 | ||
| 47321-14240 |
MA70..RHD..C W(*66) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10116 |
MA70 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-14320 |
MA70..RHD..(C,EUR) W(*66) |
1 | ||
| 47322-14310 |
MA70..RHD |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10004 |
MA70 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-14100 |
MA70..RHD..(C,EUR) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-14130 |
MA70 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-14010 |
MA70 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-14010 |
MA70 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-14041 |
MA70 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-14021 |
MA70 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-14021 |
MA70..RHD;MA70..LHD..(C,EUR) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-14010 |
MA70..RHD |
1 | ||
| 47371-14010 |
MA70..RHD..(C,EUR) W(*66) |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-30010 |
MA70 |
1 | ||
| Common parts | ||||
| 90119-08561 | ||||
| 90461-06055 | ||||
| 90468-08034 | ||||
| 90523-12004 | ||||
| 90949-01501 | ||||
| 91611-60614 | ||||
| 91616-40614 | ||||
| 91651-40616 | ||||
| 91651-60640 | ||||
| 96991-10080 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-14030 |
MA70..RHD..C |
1 | ||
| 44510-14030 |
MA70..RHD..(C,EUR) |
1 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-14010 |
MA70..RHD..C;MA70..LHD..TWT |
2 | ||
| 44543-14010 |
MA70..C,EUR |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-22070 |
MA70..RHD..C;MA70..LHD..TWT |
3 | ||
| 44545-22070 |
MA70..C,EUR |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-22070 |
MA70..RHD..C;MA70..LHD..TWT |
3 | ||
| 44545-22070 |
MA70..C,EUR |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-22070 |
MA70..RHD..C;MA70..LHD..TWT |
3 | ||
| 44545-22070 |
MA70..C,EUR |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
MA70..C,EUR |
3 | ||
| 44546-22070 |
MA70..RHD..C;MA70..LHD..TWT |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
MA70..C,EUR |
3 | ||
| 44546-22070 |
MA70..RHD..C;MA70..LHD..TWT |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
MA70..C,EUR |
3 | ||
| 44546-22070 |
MA70..RHD..C;MA70..LHD..TWT |
3 | ||
| 44547 - CASE, RELAY(FOR BRAKE ACTUATOR) | ||||
| 44547-14030 |
MA70..RHD..(C,EUR) |
1 | ||
| 44547-14030 |
MA70..RHD..C |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-14030 |
MA70..RHD..C |
1 | ||
| 44591-14030 |
MA70..RHD..(C,EUR) |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-14010 |
MA70..RHD..C |
1 | ||
| 44592-14010 |
MA70..RHD..(C,EUR) |
1 | ||
| Common parts | ||||
| 90099-05223 | ||||
| 90462-08047 | ||||
| 90949-01334 | ||||
| 90949-01486 | ||||
| 91611-40610 | ||||
| 93315-15025 | ||||
| 94110-40600 | ||||
| 94511-00800 | ||||
| 94614-10600 | ||||
| Linked diagrams | ||||
| 8414 | ||||
