MA70R-BLPVF (1988)
Toyota Supra
(8808- )7MGE

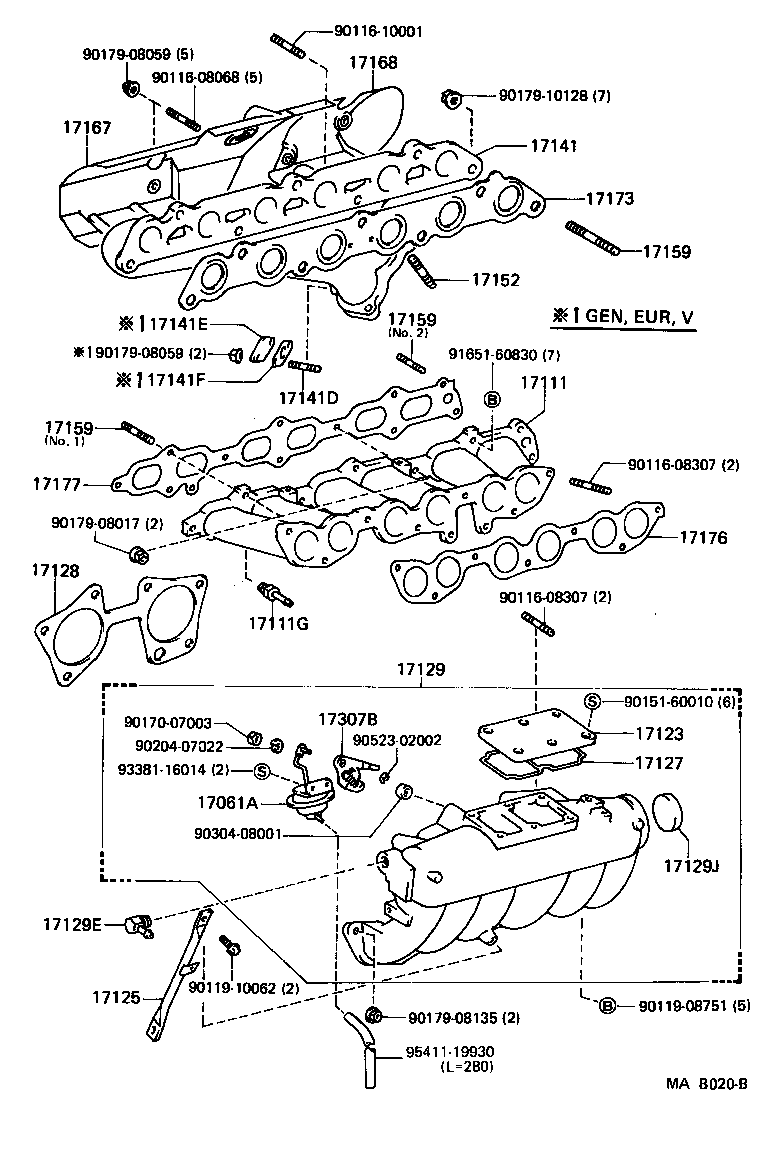

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061A - DIAPHRAGM SUB-ASSY | ||||
| 17061-42010 |
7MGE..MA70 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-42020 |
7MG#..MA70 |
1 | ||
| 17111G - UNION(FOR INTAKE MANIFOLD WATER) | ||||
| 90404-51096 |
7MG#..MA70 |
1 | ||
| 17123 - COVER, SURGE TANK | ||||
| 17123-42020 |
7MGE..MA70 |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-42010 |
7MGE..MA70;7MGTE..MA70..LB;7MGTE..MA70..SPR..C;7MGTE..MA70..SPR..5F..ARL |
1 | ||
| 17125-42020 |
7MG#..MA70 |
1 | ||
| 17125-42010 |
7MG#..MA70 |
1 | ||
| 17127 - GASKET, SURGE TANK COVER | ||||
| 17127-42010 |
7MGE..MA70 |
1 | ||
| 17128 - GASKET, SURGE TANK | ||||
| 17128-42010 |
7MGE..MA70 |
1 | ||
| 17128-42020 |
7MGE..MA70 |
1 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-42060 |
7MGE..MA70 |
1 | ||
| 17129E - UNION, NO.3 | ||||
| 90404-54039 |
7MG#..MA70 |
1 | ||
| 90404-54033 |
7MG#..MA70 |
1 | ||
| 17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK) | ||||
| 90331-55001 |
7MGE..MA70 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-43010 |
7MGE..MA70 |
1 | ||
| 17141D - BOLT, STUD(FOR OXYGEN SENSOR) | ||||
| 90116-08128 |
7MG#..MA70 |
2 | ||
| 17141E - PLATE, EXHAUST MANIFOLD | ||||
| 17148-41010 |
7MGE..MA70..EUR,GEN,V |
1 | ||
| 17141F - GASKET(FOR EXHAUST MANIFOLD PLATE) | ||||
| 89466-30010 |
7MGE..MA70..EUR,GEN,V |
1 | ||
| 89466-20020 |
7MGE..MA70..GEN,V |
1 | ||
| 89466-20020 |
7MGE..MA70 |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
7MG#..MA70 |
3 | ||
| 90116-10146 |
7MG#..MA70 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08178 |
7MG#..MA70 INTAKE MANIFOLD,NO.2 |
2 | ||
| 90116-08230 |
7MG#..MA70 INTAKE MANIFOLD,NO.1 |
2 | ||
| 90116-10025 |
7MG#..MA70 EXHAUST MANIFOLD |
7 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08178 |
7MG#..MA70 INTAKE MANIFOLD,NO.2 |
2 | ||
| 90116-08230 |
7MG#..MA70 INTAKE MANIFOLD,NO.1 |
2 | ||
| 90116-10025 |
7MG#..MA70 EXHAUST MANIFOLD |
7 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08178 |
7MG#..MA70 INTAKE MANIFOLD,NO.2 |
2 | ||
| 90116-08230 |
7MG#..MA70 INTAKE MANIFOLD,NO.1 |
2 | ||
| 90116-10025 |
7MG#..MA70 EXHAUST MANIFOLD |
7 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-42020 |
7MGE..MA70 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-42020 |
7MGE..MA70 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-43040 |
7MGE..MA70 |
1 | ||
| 17173-43020 |
7MGE..MA70 |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-42010 |
7MG#..MA70 |
1 | ||
| 17176-42010 |
7MG#..MA70 |
1 | ||
| 17176-42020 |
7MG#..MA70 |
1 | ||
| 17176-42010 |
7MGE..MA70;7MGTE..MA70..LB;7MGTE..MA70..SPR..C;7MGTE..MA70..SPR..5F..ARL |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-42010 |
7MG#..MA70 |
1 | ||
| 17177-42020 |
7MG#..MA70 |
1 | ||
| 17307B - LEVER SUB-ASSY, INTAKE AIR CONTROL | ||||
| 17307-42020 |
7MGE..MA70 |
1 | ||
| Common parts | ||||
| 90116-08068 | ||||
| 90116-08307 | ||||
| 90116-10001 | ||||
| 90119-08751 | ||||
| 90119-10062 | ||||
| 90151-60010 | ||||
| 90170-07003 | ||||
| 90179-08017 | ||||
| 90179-08059 | ||||
| 90179-08135 | ||||
| 90179-10128 | ||||
| 90204-07022 | ||||
| 90304-08001 | ||||
| 90523-02002 | ||||
| 91651-60830 | ||||
| 93381-16014 | ||||
| 95411-19930 | ||||
