MA70R-BLMVZC (1988)
Toyota Supra

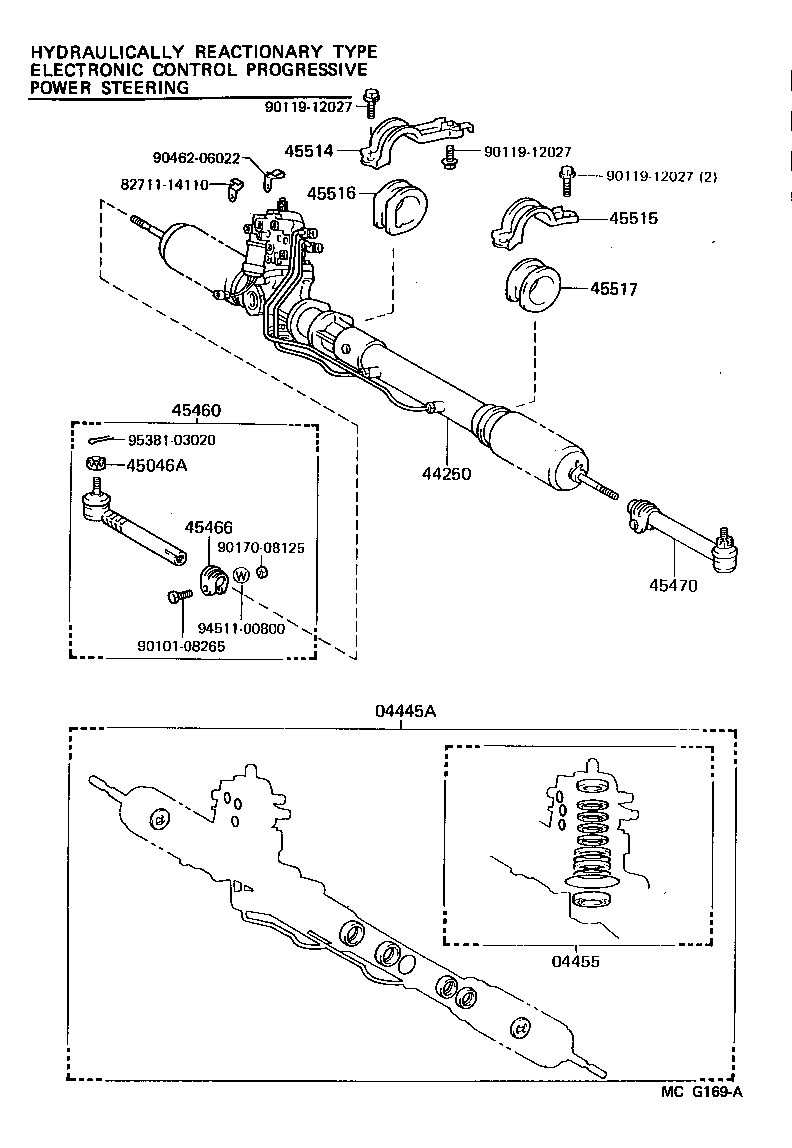

ILLUST NO. 1 OF 2(8808- )RHD..ARL,C,EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-20040 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
1 | ||
| 04445-14020 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-20050 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
1 | ||
| 04455-14010 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-14161 |
MA70..RHD..(ARL,C) |
1 | ||
| 44250-14160 |
MA70..RHD..(ARL,C,EUR) |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
MA70 |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-19225 |
MA70 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
MA70 |
2 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-19225 |
MA70 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14050 |
MA70..RHD;MA70..LHD..C |
1 | ||
| 45514-14050 |
MA70..RHD |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14070 |
MA70..RHD;MA70..LHD..C |
1 | ||
| 45515-14070 |
MA70..RHD |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-14010 |
MA70..GEN,V;MA70..LHD..(C,EUR) |
1 | ||
| 45516-14010 |
MA70 |
1 | ||
| 45516-14020 |
MA70..RHD..(ARL,C,EUR) |
1 | ||
| 45516-14021 |
MA70 |
1 | ||
| 45516-14020 |
MA70 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-14030 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
1 | ||
| 45517-24020 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90101-08265 | ||||
| 90119-12027 | ||||
| 90170-08125 | ||||
| 90462-06022 | ||||
| 94511-00800 | ||||
| 95381-03020 | ||||

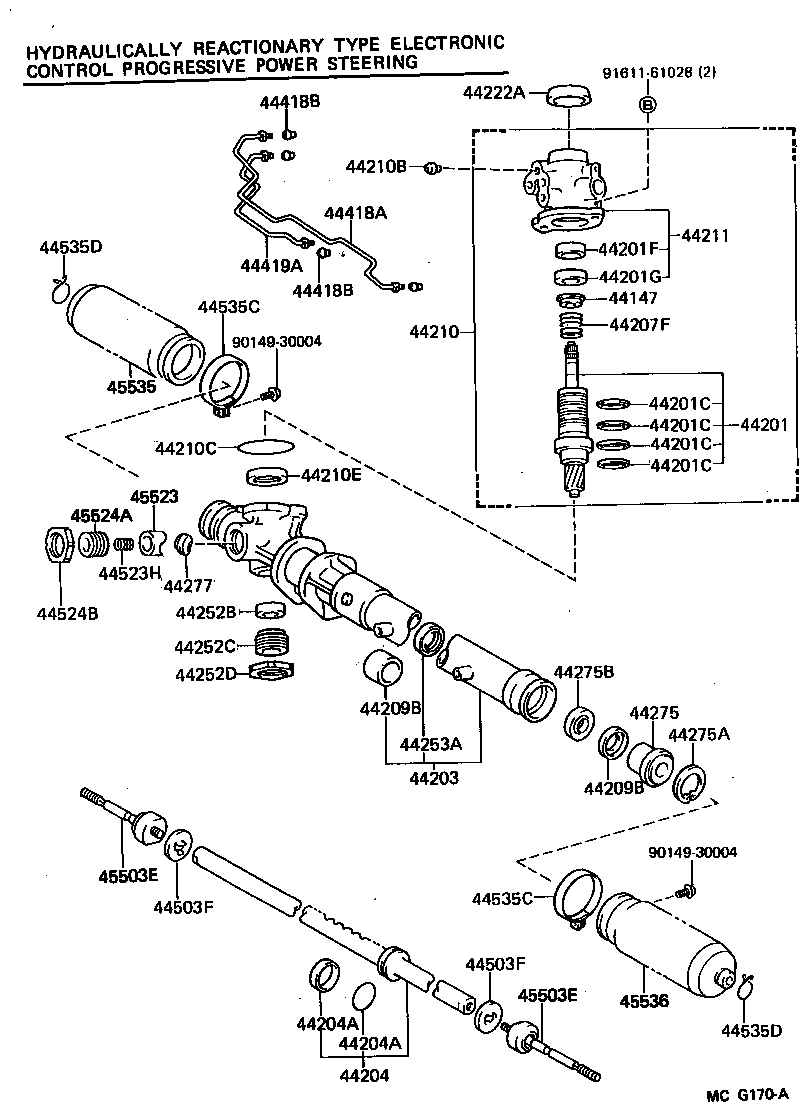

ILLUST NO. 2 OF 2(8808- )RHD..ARL,C,EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44147 - SEAT, SPOOL VALVE SPRING | ||||
| 44147-24020 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-14140 |
MA70..RHD..(ARL,C,EUR) |
1 | ||
| 44201-14141 |
MA70..RHD..(ARL,C) |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
4 | ||
| 90562-50001 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) |
2 | ||
| 90562-33005 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) OD=36.4 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
4 | ||
| 90562-50001 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) |
2 | ||
| 90562-33005 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) OD=36.4 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
4 | ||
| 90562-50001 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) |
2 | ||
| 90562-33005 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) OD=36.4 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-50001 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) |
2 | ||
| 90562-38001 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
4 | ||
| 90562-33005 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) OD=36.4 |
4 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19006 |
MA70 |
1 | ||
| 44201G - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19002 |
MA70 |
1 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-24021 |
MA70..RHD..(ARL,C) |
1 | ||
| 44203-24020 |
MA70..RHD..(ARL,C,EUR) |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-24020 |
MA70..RHD..(ARL,C,EUR) |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-40001 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) OUTER |
1 | ||
| 90562-40002 |
MA70..LHD..TWT;MA70..RHD..(ARL,C) OUTER |
1 | ||
| 90301-36004 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) INNER |
1 | ||
| 90301-33003 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) INNER |
1 | ||
| 90562-37001 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-40001 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) OUTER |
1 | ||
| 90562-40002 |
MA70..LHD..TWT;MA70..RHD..(ARL,C) OUTER |
1 | ||
| 90301-36004 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) INNER |
1 | ||
| 90301-33003 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) INNER |
1 | ||
| 90562-37001 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) OUTER |
1 | ||
| 44207F - SPRING, CONICAL(FOR VALVE CAP SUB-ASSY) | ||||
| 90502-15001 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
1 | ||
| 44209B - SPACER(FOR POWER STEERING CYLINDER HOUSING) | ||||
| 90560-27009 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) RH |
1 | ||
| 90560-27007 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) LH |
1 | ||
| 44209B - SPACER(FOR POWER STEERING CYLINDER HOUSING) | ||||
| 90560-27009 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) RH |
1 | ||
| 90560-27007 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) LH |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-14171 |
MA70..RHD..(ARL,C) |
1 | ||
| 44210-14170 |
MA70..RHD..(ARL,C,EUR) |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06002 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 96711-24060 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
1 | ||
| 90301-11009 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) ID=11.8 |
3 | ||
| 90301-57003 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) ID=57.5 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90310-31001 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-24020 |
MA70..RHD..(ARL,C,EUR) |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-32020 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) |
1 | ||
| 45222-20020 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
1 | ||
| 44252B - BEARING(FOR POWER STEERING PINION) | ||||
| 90363-13002 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
1 | ||
| 44252C - CAP(FOR POWER STEERING PINION) | ||||
| 45524-16010 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
1 | ||
| 44252D - NUT(FOR POWER STEERING PINION CAP) | ||||
| 90179-36002 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-26003 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
1 | ||
| 90310-30005 |
MA70..RHD |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-20041 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
1 | ||
| 44275-24020 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-50002 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
1 | ||
| 90521-53002 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-26002 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
1 | ||
| 90310-26012 |
MA70..GEN,V;MA70..LHD..TWC..C |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-20020 |
MA70 |
1 | ||
| 44277-50011 |
MA70 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-24020 |
MA70..RHD..(ARL,C,EUR) |
1 | ||
| 44418-14070 |
MA70..RHD..(ARL,C) |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04003 |
MA70..LHD..C;MA70..RHD..(ARL,C,EUR) |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04003 |
MA70..LHD..C;MA70..RHD..(ARL,C,EUR) |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-24020 |
MA70..RHD..(ARL,C,EUR) |
1 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14007 |
MA70 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14007 |
MA70 |
2 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-26080 |
MA70 |
1 | ||
| 90501-26038 |
MA70 |
1 | ||
| 90501-23007 |
MA70 |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
MA70 |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90949-01082 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) RH |
1 | ||
| 90461-10709 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) LH |
1 | ||
| 90949-01081 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90949-01082 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) RH |
1 | ||
| 90461-10709 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) LH |
1 | ||
| 90949-01081 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
MA70 |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
MA70 |
2 | ||
| 45503E - END SUB-ASSY, STEERING RACK | ||||
| 45503-29175 |
MA70 |
2 | ||
| 45503E - END SUB-ASSY, STEERING RACK | ||||
| 45503-29175 |
MA70 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-50011 |
MA70 |
1 | ||
| 45523-20020 |
MA70 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 45524-16010 |
MA70 |
1 | ||
| 45524-50010 |
MA70 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-14040 |
MA70 |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-14040 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
1 | ||
| 45535-24020 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91611-61028 | ||||
