MA70R-BLMVZC (1988)
Toyota Supra

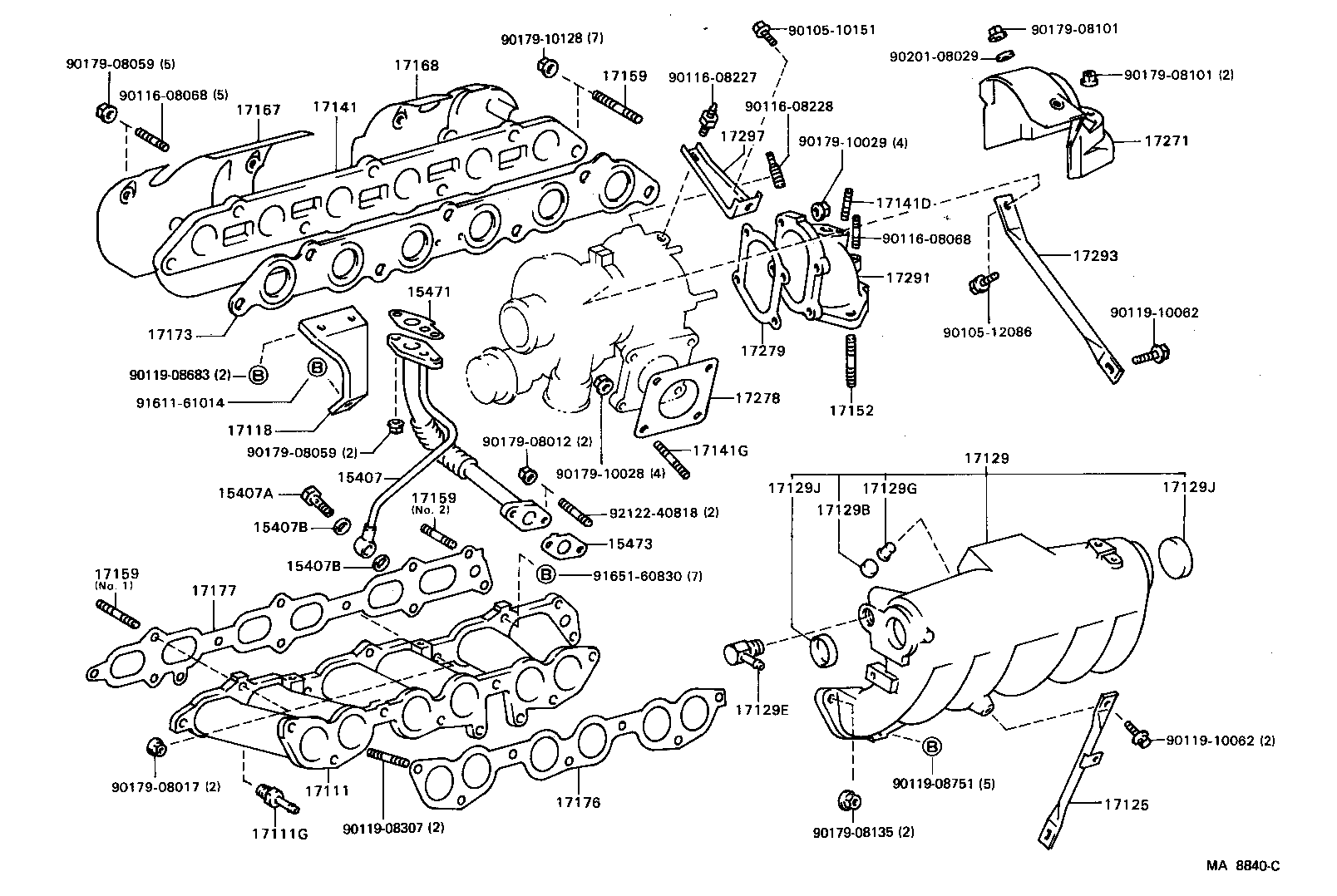

ILLUST NO. 1 OF 2(8808- )7MGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-42010 |
7MGTE..MA70 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-12097 |
7MGTE..MA70 |
1 | ||
| 90401-12021 |
7MGTE..MA70 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-12005 |
7MGTE..MA70 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-12005 |
7MGTE..MA70 |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-54010 |
7MGTE..MA70 |
1 | ||
| 15471-54020 |
7MGTE..MA70 |
1 | ||
| 15471-58010 |
7MGTE..MA70 |
1 | ||
| 15473 - GASKET, TURBO OIL OUTLET, NO.2 | ||||
| 15473-41010 |
7MGTE..MA70 |
1 | ||
| 15473-42010 |
7MGTE..MA70 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-42020 |
7MG#..MA70 |
1 | ||
| 17111G - UNION(FOR INTAKE MANIFOLD WATER) | ||||
| 90404-51096 |
7MG#..MA70 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-42020 |
7MGTE..MA70 |
1 | ||
| 17118-42010 |
7MGTE..MA70 |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-42010 |
7MGE..MA70;7MGTE..MA70..LB;7MGTE..MA70..SPR..C;7MGTE..MA70..SPR..5F..ARL |
1 | ||
| 17125-42020 |
7MG#..MA70 |
1 | ||
| 17125-42010 |
7MG#..MA70 |
1 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-42020 |
7MGTE..MA70 |
1 | ||
| 17109-42020 |
7MGTE..MA70..LB;7MGTE..MA70..SPR..C;7MGTE..MA70..SPR..5F..ARL |
1 | ||
| 17109-42020 |
7MGTE..MA70 |
1 | ||
| 17129B - PLUG | ||||
| 96411-41800 |
7MGTE..MA70 |
1 | ||
| 96411-41800 |
7MGTE..MA70 |
1 | ||
| 96411-41800 |
7MGTE..MA70..LB;7MGTE..MA70..SPR..C;7MGTE..MA70..SPR..5F..ARL |
1 | ||
| 17129E - UNION, NO.3 | ||||
| 90404-54039 |
7MG#..MA70 |
1 | ||
| 90404-54033 |
7MG#..MA70 |
1 | ||
| 17129G - TUBE, EGR INLET | ||||
| 25619-43010 |
7MGTE..MA70 |
1 | ||
| 25619-43010 |
7MGTE..MA70 |
1 | ||
| 25619-43010 |
7MGTE..MA70..LB;7MGTE..MA70..SPR..C;7MGTE..MA70..SPR..5F..ARL |
1 | ||
| 17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK) | ||||
| 96411-44000 |
7MGTE..MA70 OD=40,FR |
2 | ||
| 96411-45000 |
7MGTE..MA70 OD=50,RR |
1 | ||
| 96411-44000 |
7MGTE..MA70 OD=40,FR |
2 | ||
| 96411-44000 |
7MGTE..MA70..LB;7MGTE..MA70..SPR..C;7MGTE..MA70..SPR..5F..ARL OD=40,FR |
2 | ||
| 96411-45000 |
7MGTE..MA70 OD=50,RR |
1 | ||
| 96411-45000 |
7MGTE..MA70..LB;7MGTE..MA70..SPR..C;7MGTE..MA70..SPR..5F..ARL OD=50,RR |
1 | ||
| 17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK) | ||||
| 96411-44000 |
7MGTE..MA70 OD=40,FR |
2 | ||
| 96411-45000 |
7MGTE..MA70 OD=50,RR |
1 | ||
| 96411-44000 |
7MGTE..MA70 OD=40,FR |
2 | ||
| 96411-44000 |
7MGTE..MA70..LB;7MGTE..MA70..SPR..C;7MGTE..MA70..SPR..5F..ARL OD=40,FR |
2 | ||
| 96411-45000 |
7MGTE..MA70 OD=50,RR |
1 | ||
| 96411-45000 |
7MGTE..MA70..LB;7MGTE..MA70..SPR..C;7MGTE..MA70..SPR..5F..ARL OD=50,RR |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-42010 |
7MGTE..MA70 |
1 | ||
| 17141D - BOLT, STUD(FOR OXYGEN SENSOR) | ||||
| 90116-08128 |
7MG#..MA70 |
2 | ||
| 17141G - BOLT, STUD(FOR TURBOCHARGER) | ||||
| 90116-10127 |
7MGTE..MA70 |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
7MG#..MA70 |
3 | ||
| 90116-10146 |
7MG#..MA70 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08178 |
7MG#..MA70 INTAKE MANIFOLD,NO.2 |
2 | ||
| 90116-08230 |
7MG#..MA70 INTAKE MANIFOLD,NO.1 |
2 | ||
| 90116-10025 |
7MG#..MA70 EXHAUST MANIFOLD |
7 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08178 |
7MG#..MA70 INTAKE MANIFOLD,NO.2 |
2 | ||
| 90116-08230 |
7MG#..MA70 INTAKE MANIFOLD,NO.1 |
2 | ||
| 90116-10025 |
7MG#..MA70 EXHAUST MANIFOLD |
7 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08178 |
7MG#..MA70 INTAKE MANIFOLD,NO.2 |
2 | ||
| 90116-08230 |
7MG#..MA70 INTAKE MANIFOLD,NO.1 |
2 | ||
| 90116-10025 |
7MG#..MA70 EXHAUST MANIFOLD |
7 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-42040 |
7MGTE..MA70 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-42030 |
7MGTE..MA70 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-42010 |
7MGTE..MA70 |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-42010 |
7MG#..MA70 |
1 | ||
| 17176-42010 |
7MG#..MA70 |
1 | ||
| 17176-42020 |
7MG#..MA70 |
1 | ||
| 17176-42010 |
7MGE..MA70;7MGTE..MA70..LB;7MGTE..MA70..SPR..C;7MGTE..MA70..SPR..5F..ARL |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-42010 |
7MG#..MA70 |
1 | ||
| 17177-42020 |
7MG#..MA70 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-42020 |
7MGTE..MA70 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-42010 |
7MGTE..MA70 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-42010 |
7MGTE..MA70 |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-42010 |
7MGTE..MA70 |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-42010 |
7MGTE..MA70 |
1 | ||
| 17293-42011 |
7MGTE..MA70 |
1 | ||
| 17297 - STAY, TURBOCHARGER, NO.2 | ||||
| 17297-42010 |
7MGTE..MA70 |
1 | ||
| Common parts | ||||
| 90105-10151 | ||||
| 90105-12086 | ||||
| 90116-08068 | ||||
| 90116-08227 | ||||
| 90116-08228 | ||||
| 90119-08307 | ||||
| 90119-08683 | ||||
| 90119-08751 | ||||
| 90119-10062 | ||||
| 90179-08012 | ||||
| 90179-08017 | ||||
| 90179-08059 | ||||
| 90179-08101 | ||||
| 90179-08135 | ||||
| 90179-10028 | ||||
| 90179-10029 | ||||
| 90179-10128 | ||||
| 90201-08029 | ||||
| 91611-61014 | ||||
| 91651-60830 | ||||
| 92122-40818 | ||||

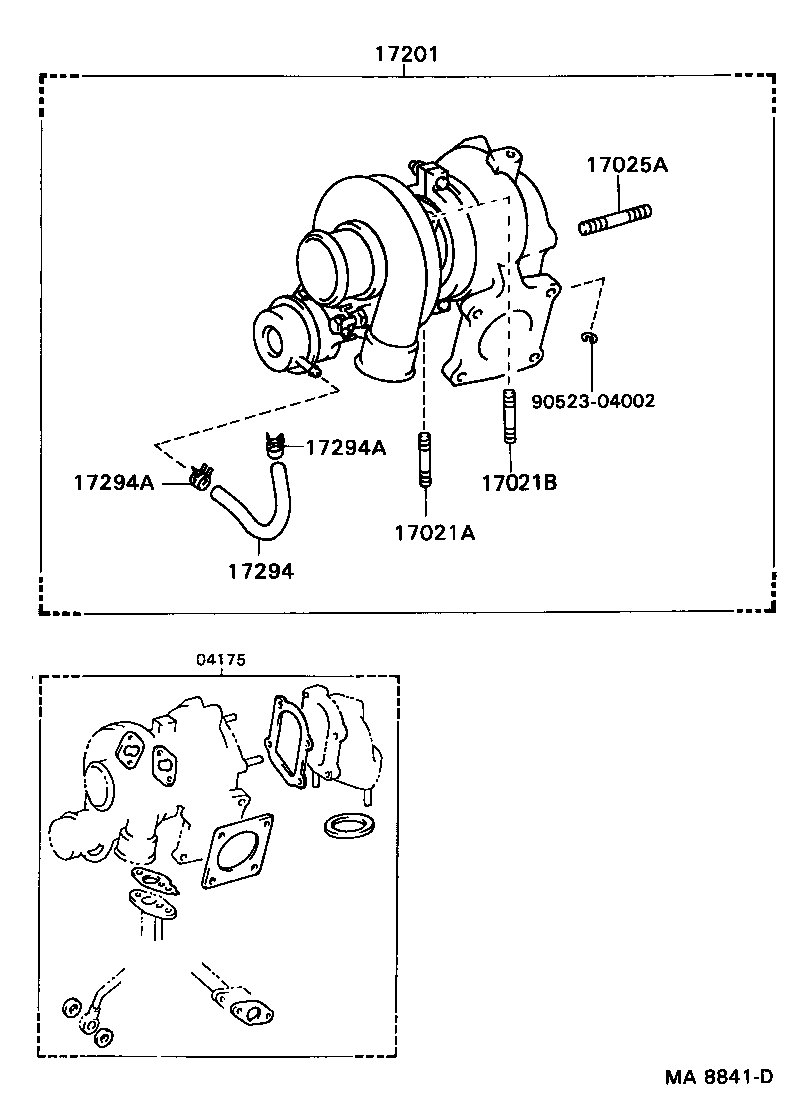

ILLUST NO. 2 OF 2(8808- )7MGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-42011 |
7MGTE..MA70 |
1 | ||
| 04175-42010 |
7MGTE..MA70 |
1 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-08158 |
7MGTE..MA70 |
2 | ||
| 17021B - BOLT, STUD | ||||
| 90116-06048 |
7MGTE..MA70 |
4 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90116-10125 |
7MGTE..MA70 |
4 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-42020 |
7MGTE..MA70 |
1 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 17294-28010 |
7MGTE..MA70 |
1 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-30600 |
7MGTE..MA70 |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-30600 |
7MGTE..MA70 |
2 | ||
| Common parts | ||||
| 90523-04002 | ||||
