MA70R-BLMVFW (1986)

Toyota Supra

Production Jan 1986 - Aug 1988
Engine 7MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )LB

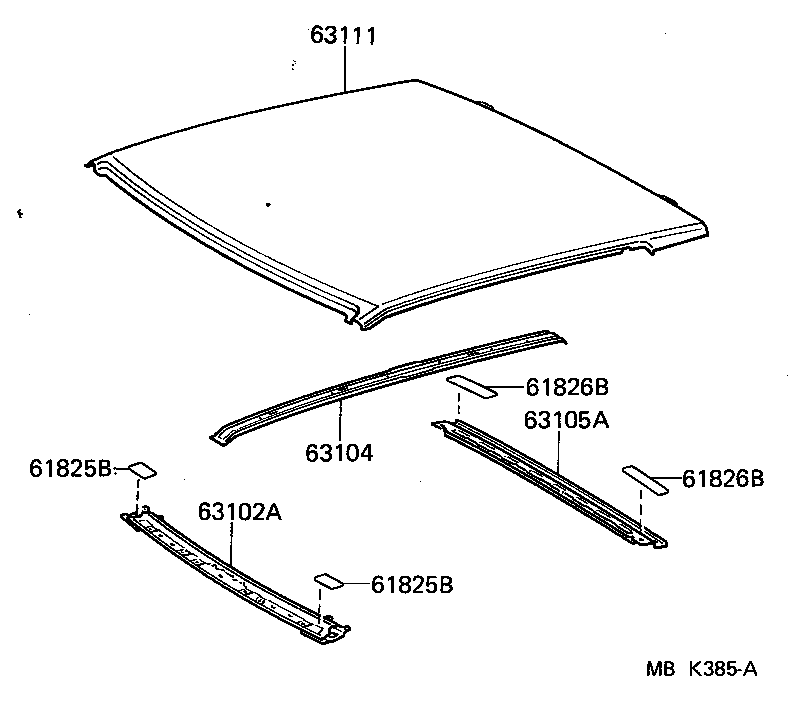

Click highlighted areas on diagram

diagram 61825B 61825B 61826B 61826B 63102A 63104 63105A 63111
Part # Description Qty Price
61825B - PLATE, NOISE CONTROL, NO.2
61825-14010

MA70

 2
61825B - PLATE, NOISE CONTROL, NO.2
61825-14010

MA70

 2
61826B - PLATE, NOISE CONTROL, NO.3
61826-14010

MA70

 2
61826B - PLATE, NOISE CONTROL, NO.3
61826-14010

MA70

 2
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-14100

MA70..LB

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-14080

MA70..LB

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-14050

MA70

 1
63111 - PANEL, ROOF
63111-14200

MA70..LB

 1
