MA70R-BLMVFN (1986)

Toyota Supra

Production Jan 1986 - Aug 1988
Engine 7MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )

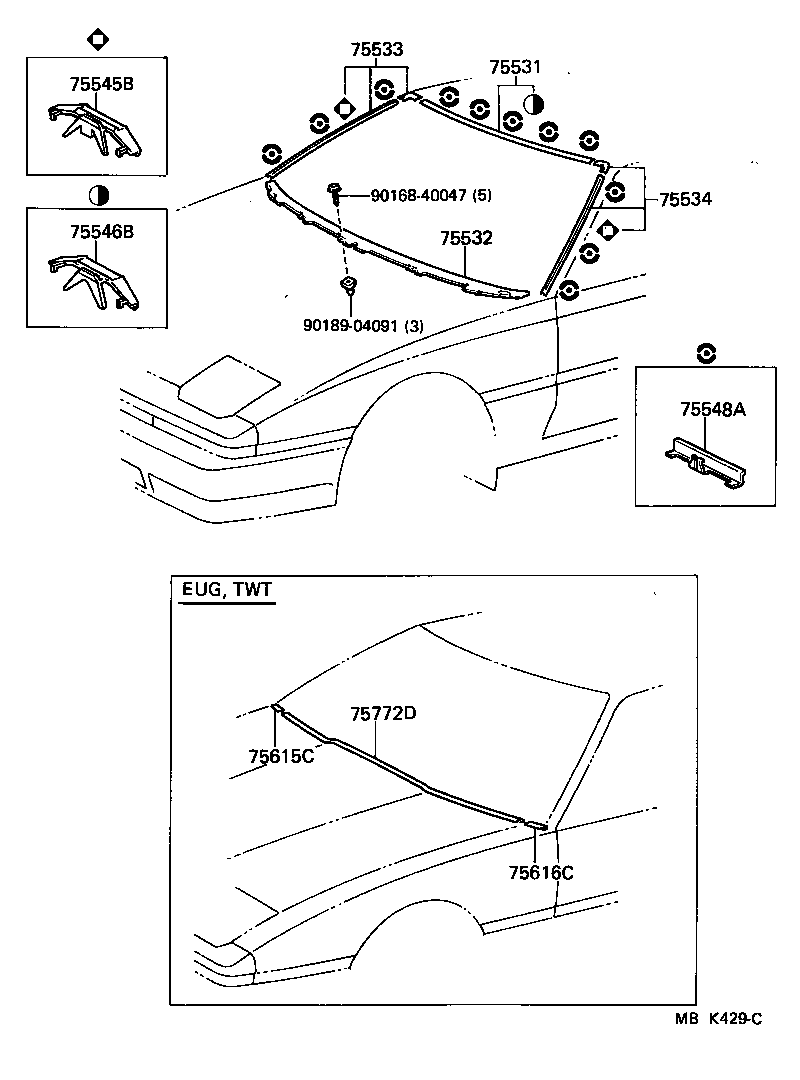

Click highlighted areas on diagram

diagram 75531 75532 75533 75534 75545B 75546B 75548A 75615C 75616C 75772D 9016840047 9018904091
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-14150

MA70

 1
75532 - MOULDING, WINDSHIELD, LOWER
75535-14200

MA70..RHD

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-14170

MA70

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-14140

MA70

 1
75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75545-14090

MA70

 6
75546B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.2
75546-14050

MA70

 6
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-24050

MA70

 12
75548-20060

MA70

 12
Common parts
90168-40047
90189-04091
