MA70R-BLMVF (1986)

Toyota Supra

Production Jan 1986 - Aug 1988
Engine 7MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )

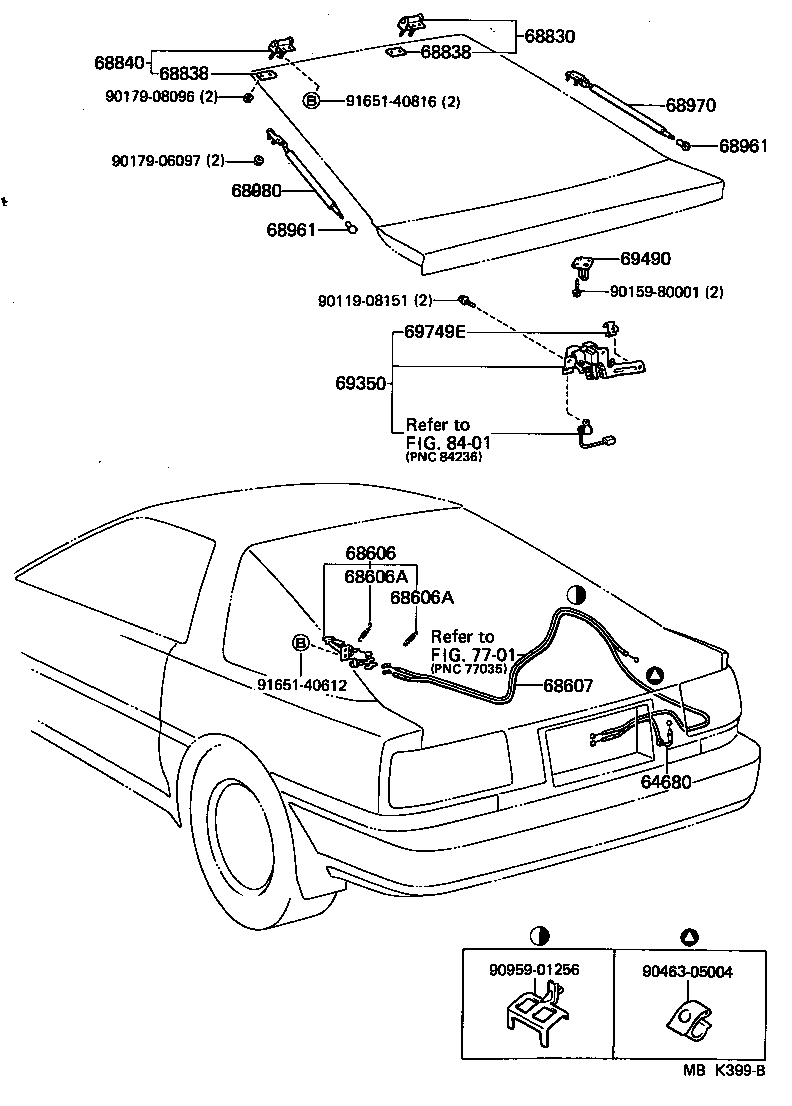

Click highlighted areas on diagram

diagram 64680 68606 68606A 68606A 68607 68830 68838 68838 68840 68961 68961 68970 68980 69350 69490 69749E 7701 8401 9011908151 9015980001 9017906097 9017908096 9046305004 9095901256 9165140612 9165140816
Part # Description Qty Price
64680 - CABLE ASSY, BACK DOOR LOCK CONTROL
64680-14030

MA70..SDZ;MA70..ARL,GCC,GEN

*LPL=SIDE

 1
64680-14020

MA70..EUR,GEN,SA

*LPL=LOWER

 1
68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN
64606-14070

MA70..RHD..(ARL,GEN)

 1
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09004

MA70..SDZ;MA70..ARL,GCC,GEN

 2
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09004

MA70..SDZ;MA70..ARL,GCC,GEN

 2
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-14240

MA70..RHD..(ARL,GEN)

 1
68830 - HINGE ASSY, BACK DOOR, RH
68801-14040

MA70

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-14030

MA70

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-14030

MA70

 2
68840 - HINGE ASSY, BACK DOOR, LH
68801-14040

MA70

 1
68961 - BOLT, BACK DOOR STAY
68961-14030

MA70

 2
68961-20060

MA70

 2
68961 - BOLT, BACK DOOR STAY
68961-14030

MA70

 2
68961-20060

MA70

 2
68970 - STAY ASSY, BACK DOOR, RH
68905-14030

MA70

W/O SPOILER

 1
68905-14040

MA70

W/SPOILER

 1
68905-14041

MA70

W/SPOILER

 1
68905-14031

MA70

W/O SPOILER

 1
68980 - STAY ASSY, BACK DOOR
68906-14011

MA70

W/O SPOILER

 1
68906-14010

MA70

W/O SPOILER

 1
68906-14020

MA70

W/SPOILER

 1
68906-14021

MA70

W/SPOILER

 1
69350 - LOCK ASSY, BACK DOOR
69350-14130

MA70

 1
69350-14120

MA70..SDZ;MA70..ARL,GCC,GEN

*LPL=SIDE

 1
69350-14130

MA70..EUR,GEN,SA

*LPL=LOWER

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-14090

MA70

 1
69749E - CLAMP, BACK DOOR LOCK LINK
69749-12030

MA70

 1
Common parts
90119-08151
90159-80001
90179-06097
90179-08096
90463-05004
90959-01256
91651-40612
91651-40816
Linked diagrams
7701
8401
