MA70R-BLMVF (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )

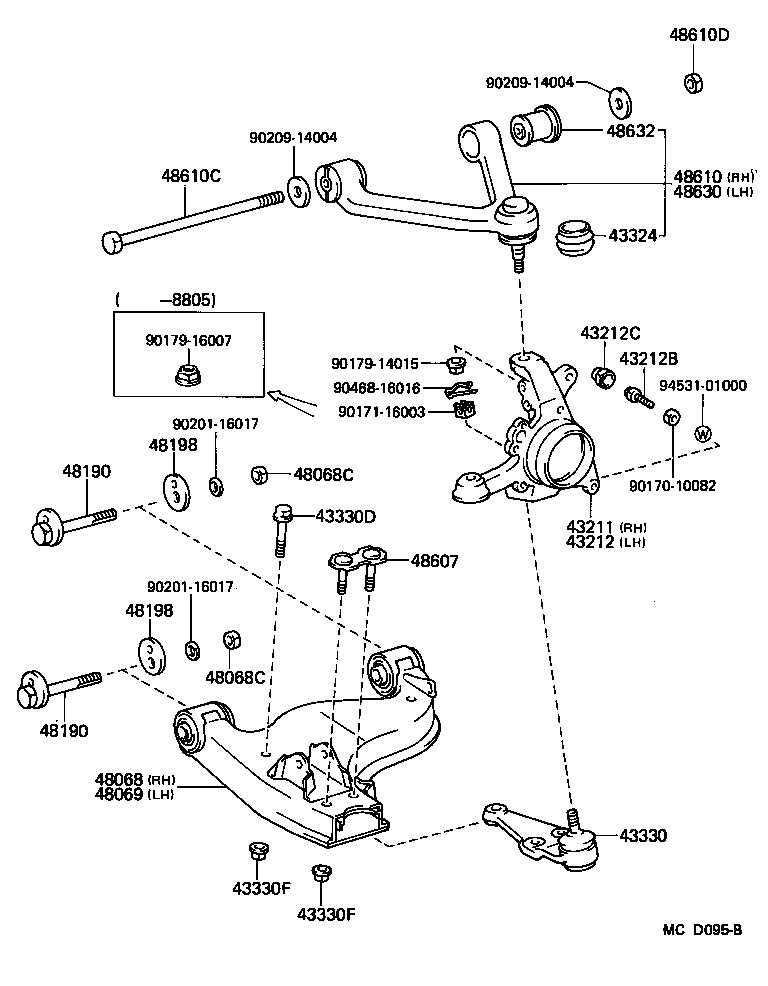

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-14061 |
MA70 |
1 | ||
| 43211-14051 |
MA70..EUR,GCC,GEN,SA W/*66 |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-14031 |
MA70 |
1 | ||
| 43212-14021 |
MA70..EUR,GCC,GEN,SA W/*66 |
1 | ||
| 43212B - BOLT (FOR FRONT KNUCKLE STOPPER) | ||||
| 90106-10002 |
MA70 |
2 | ||
| 43212C - COVER, FRONT KNUCKLE STOPPER | ||||
| 45619-14020 |
MA70 |
2 | ||
| 43324 - COVER, UPPER JOINT DUST | ||||
| 43324-14010 |
MA70 |
2 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43330-19055 |
MA70 |
2 | ||
| 43330-19056 |
MA70 |
2 | ||
| 43330D - BOLT (FOR FRONT LOWER BALL JOINT) | ||||
| 90105-14045 |
MA70 |
2 | ||
| 43330F - NUT (FOR FRONT LOWER BALL JOINT SETTING) | ||||
| 90179-14025 |
MA70 |
6 | ||
| 43330F - NUT (FOR FRONT LOWER BALL JOINT SETTING) | ||||
| 90179-14025 |
MA70 |
6 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-14041 |
MA70 |
1 | ||
| 48068-14040 |
MA70 |
1 | ||
| 48068C - NUT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 94115-71600 |
MA70 |
4 | ||
| 48068C - NUT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 94115-71600 |
MA70 |
4 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-14040 |
MA70 |
1 | ||
| 48069-14041 |
MA70 |
1 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-14030 |
MA70 FR |
2 | ||
| 48190-14020 |
MA70 RR |
2 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-14030 |
MA70 FR |
2 | ||
| 48190-14020 |
MA70 RR |
2 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-14020 |
MA70 RR |
2 | ||
| 48198-14030 |
MA70 FR |
2 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-14020 |
MA70 RR |
2 | ||
| 48198-14030 |
MA70 FR |
2 | ||
| 48607 - PLATE SUB-ASSY, LOWER ARM ATTACHMENT | ||||
| 48607-14011 |
MA70 |
1 | ||
| 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH | ||||
| 48610-14010 |
MA70 |
1 | ||
| 48610C - BOLT(FOR SUSPENSION UPPER ARM) | ||||
| 90101-14029 |
MA70 |
2 | ||
| 48610D - NUT(FOR SUSPENSION UPPER ARM) | ||||
| 90170-14006 |
MA70 |
2 | ||
| 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48630-14010 |
MA70 |
1 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48632-14010 |
MA70 |
4 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 90171-16003 | ||||
| 90179-14015 | ||||
| 90179-16007 | ||||
| 90201-16017 | ||||
| 90209-14004 | ||||
| 90468-16016 | ||||
| 94531-01000 | ||||
