MA70R-BLMVF (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )5F..TWC

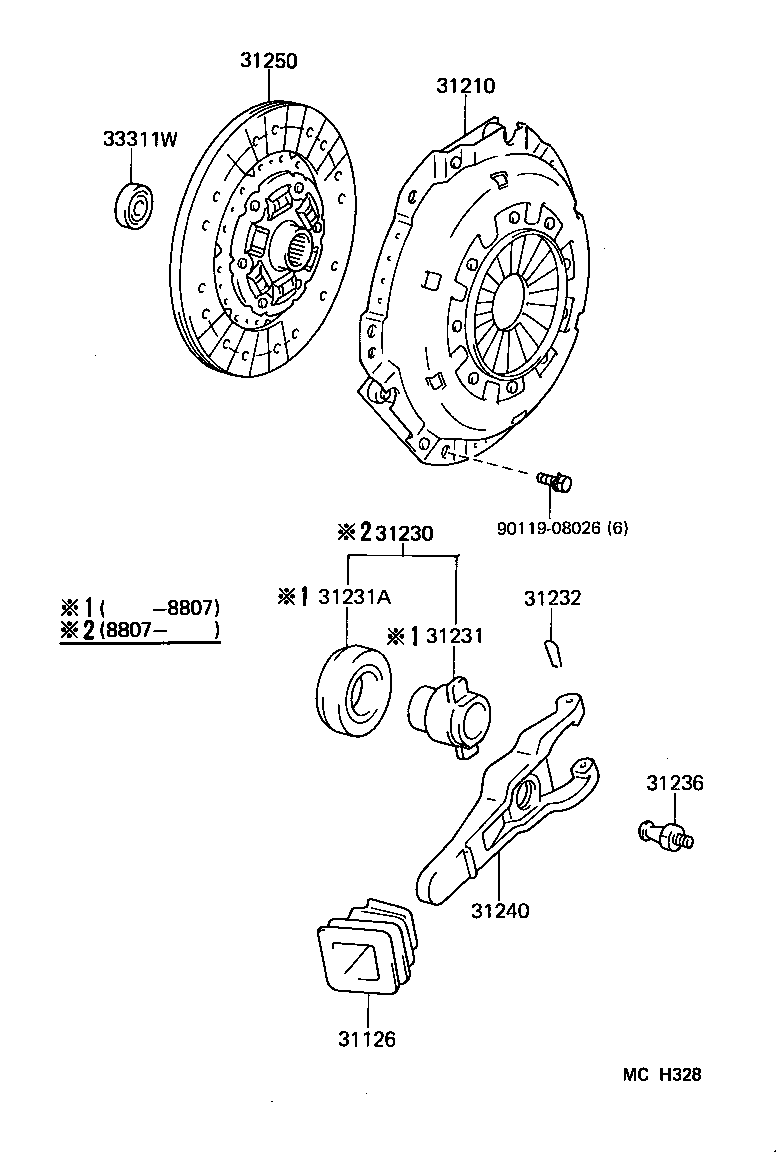

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-14010 |
MA70..5F..TWC |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-14140 |
MA70..5F..TWC |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-14030 |
MA70..5F..TWC |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-36070 |
MA70..5F..TWC |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-40022 |
MA70..5F..TWC |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-14010 |
MA70..5F..TWC |
1 | ||
| 31232-20010 |
MA70..5F..TWC |
1 | ||
| 31236 - BALL, RELEASE FORK | ||||
| 31236-14010 |
MA70..5F..TWC |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31204-14020 |
MA70..5F..TWC |
1 | ||
| 31204-14021 |
MA70..5F..TWC |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-14130 |
MA70..5F |
1 | ||
| 31250-14160 |
MA70..5F..TWC |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-12002 |
MA70..5F |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
