MA70R-BLMVF (1988)
Toyota Supra

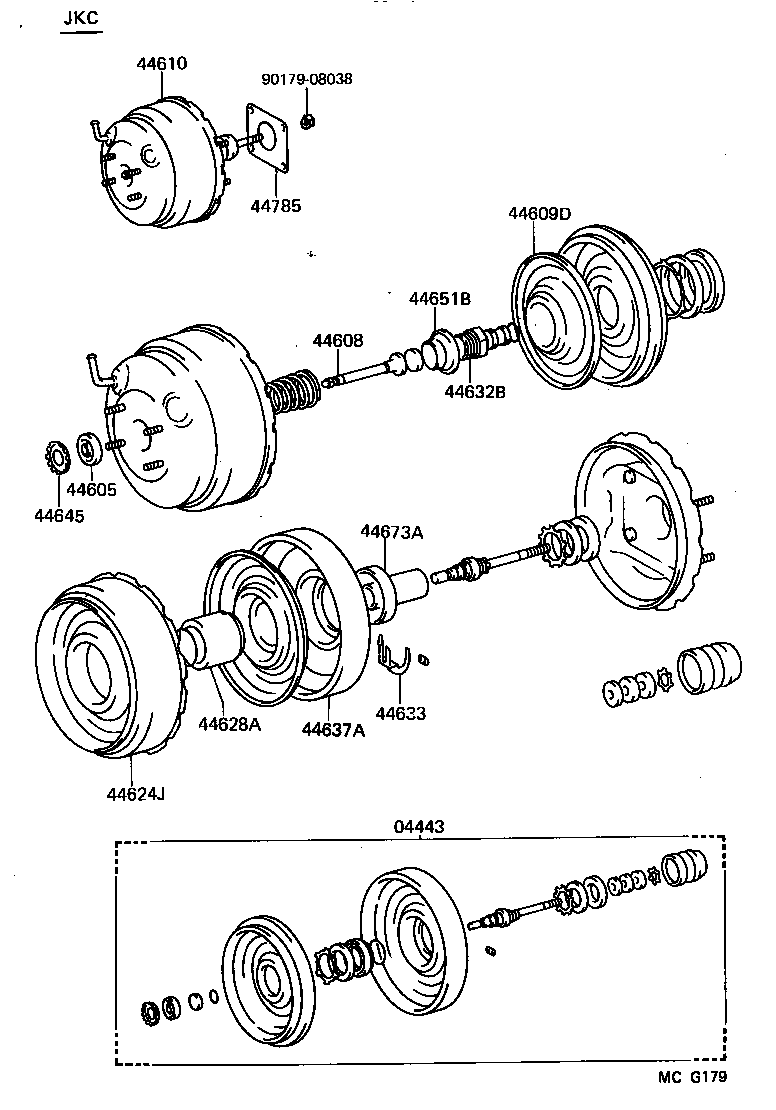

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-14510 |
MA70..RHD..(ARL,GEN) |
1 | ||
| 04443-14530 |
MA70..RHD..(C,EUR) |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-20800 |
MA70..RHD;MA70..LHD..(C,V) |
1 | ||
| 44606-20800 |
MA70..RHD;MA70..LHD..(C,EUR,V) |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-14690 |
MA70..C,EUR,V |
1 | ||
| 44610-14670 |
MA70..RHD..(ARL,GEN) |
1 | ||
| 44610-14810 |
MA70..C,V |
1 | ||
| 44610-14830 |
MA70..RHD..(ARL,GEN) |
1 | ||
| 44624J - PLATE, BOOSTER CENTER | ||||
| 44624-20800 |
MA70..RHD..TWC;MA70..LHD..(C,EUR,V) |
1 | ||
| 44624-20800 |
MA70..RHD..TWC;MA70..LHD..(C,V) |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
MA70 |
1 | ||
| 44785-30020 |
MA70 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-14510 |
MA70..RHD..(ARL,GEN) |
1 | ||
| 04443-14530 |
MA70..RHD..(C,EUR) |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-20800 |
MA70..RHD;MA70..LHD..(C,V) |
1 | ||
| 44606-20800 |
MA70..RHD;MA70..LHD..(C,EUR,V) |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-14690 |
MA70..C,EUR,V |
1 | ||
| 44610-14670 |
MA70..RHD..(ARL,GEN) |
1 | ||
| 44610-14810 |
MA70..C,V |
1 | ||
| 44610-14830 |
MA70..RHD..(ARL,GEN) |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-14030 |
MA70 |
1 | ||
| 44621-14030 |
MA70 |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
MA70 |
1 | ||
| 44626-60010 |
MA70 |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
MA70 |
1 | ||
| 44628-60010 |
MA70 |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-20800 |
MA70 |
1 | ||
| 44635-20800 |
MA70 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-20800 |
MA70 |
1 | ||
| 44642-20800 |
MA70 |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-20800 |
MA70 |
1 | ||
| 44643-20800 |
MA70 |
1 | ||
| 44657D - CASE, REACTION DISC | ||||
| 44657-20800 |
MA70..ARL,GEN |
1 | ||
| 44657-22630 |
MA70..C,V |
1 | ||
| 44657-22630 |
MA70..C,EUR,V |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
MA70 |
1 | ||
| 44785-30020 |
MA70 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 91661-60616 | ||||

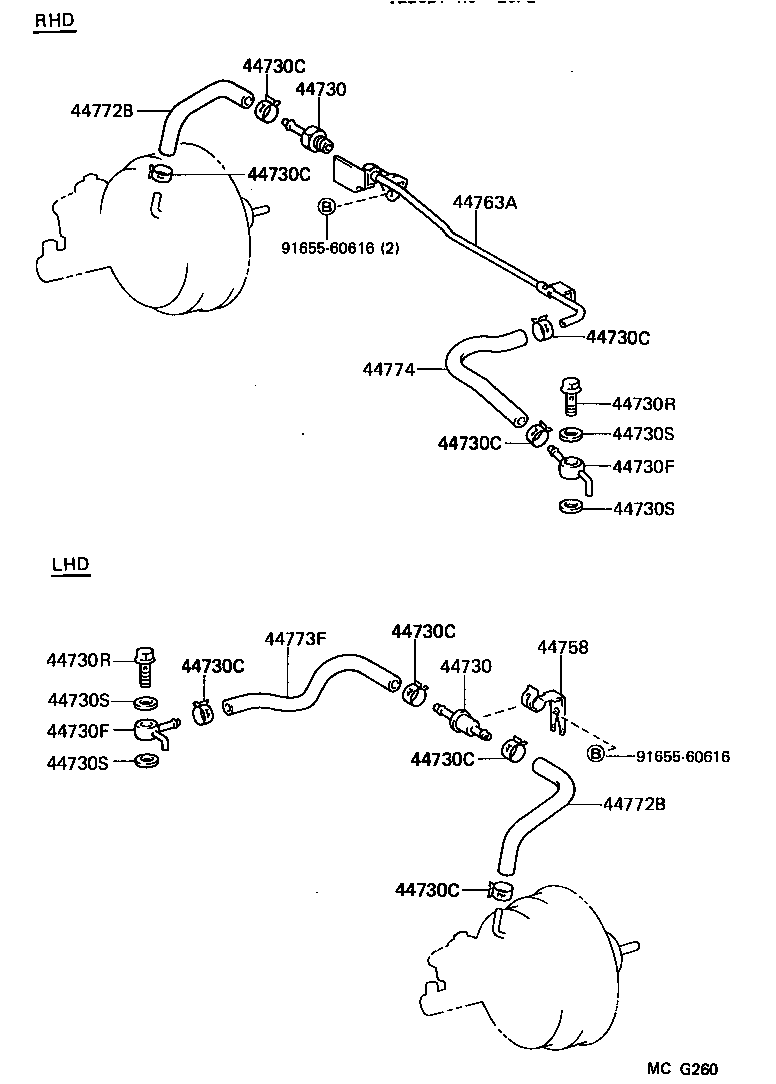

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44580-22030 |
MA70..RHD |
1 | ||
| 44580-22030 |
MA70..RHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44580-22030 |
MA70..RHD |
1 | ||
| 44580-22030 |
MA70..RHD |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16017 |
MA70 |
4 | ||
| 90467-16002 |
MA70 |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16017 |
MA70 |
4 | ||
| 90467-16002 |
MA70 |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16017 |
MA70 |
4 | ||
| 90467-16002 |
MA70 |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16017 |
MA70 |
4 | ||
| 90467-16002 |
MA70 |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16017 |
MA70 |
4 | ||
| 90467-16002 |
MA70 |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16017 |
MA70 |
4 | ||
| 90467-16002 |
MA70 |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16017 |
MA70 |
4 | ||
| 90467-16002 |
MA70 |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16017 |
MA70 |
4 | ||
| 90467-16002 |
MA70 |
4 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90405-09120 |
MA70..RHD |
1 | ||
| 90405-09120 |
MA70..RHD |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90405-09120 |
MA70..RHD |
1 | ||
| 90405-09120 |
MA70..RHD |
1 | ||
| 44730R - BOLT, UNION(FOR VACUUM HOSE UNION) | ||||
| 90401-12012 |
MA70 |
1 | ||
| 90401-12012 |
MA70 |
1 | ||
| 44730R - BOLT, UNION(FOR VACUUM HOSE UNION) | ||||
| 90401-12012 |
MA70 |
1 | ||
| 90401-12012 |
MA70 |
1 | ||
| 44730S - GASKET(FOR VACUUM HOSE UNION) | ||||
| 90430-12005 |
MA70 |
2 | ||
| 90430-12005 |
MA70 |
2 | ||
| 44730S - GASKET(FOR VACUUM HOSE UNION) | ||||
| 90430-12005 |
MA70 |
2 | ||
| 90430-12005 |
MA70 |
2 | ||
| 44730S - GASKET(FOR VACUUM HOSE UNION) | ||||
| 90430-12005 |
MA70 |
2 | ||
| 90430-12005 |
MA70 |
2 | ||
| 44730S - GASKET(FOR VACUUM HOSE UNION) | ||||
| 90430-12005 |
MA70 |
2 | ||
| 90430-12005 |
MA70 |
2 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-14040 |
MA70..RHD |
1 | ||
| 44763-14040 |
MA70..RHD |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-14180 |
MA70..RHD |
1 | ||
| 44772-14180 |
MA70..RHD |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-14180 |
MA70..RHD |
1 | ||
| 44772-14180 |
MA70..RHD |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44774-14070 |
MA70..RHD..C;MA70..TWT..ARL |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-14030 |
MA70..RHD..TWC..(ARL,EUR,GEN) |
1 | ||
| 44774-14030 |
MA70..RHD..GEN |
1 | ||
| Common parts | ||||
| 91655-60616 | ||||
