MA70R-BLMVF (1988)

Toyota Supra

Production Aug 1988 - May 1993
Engine 7MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

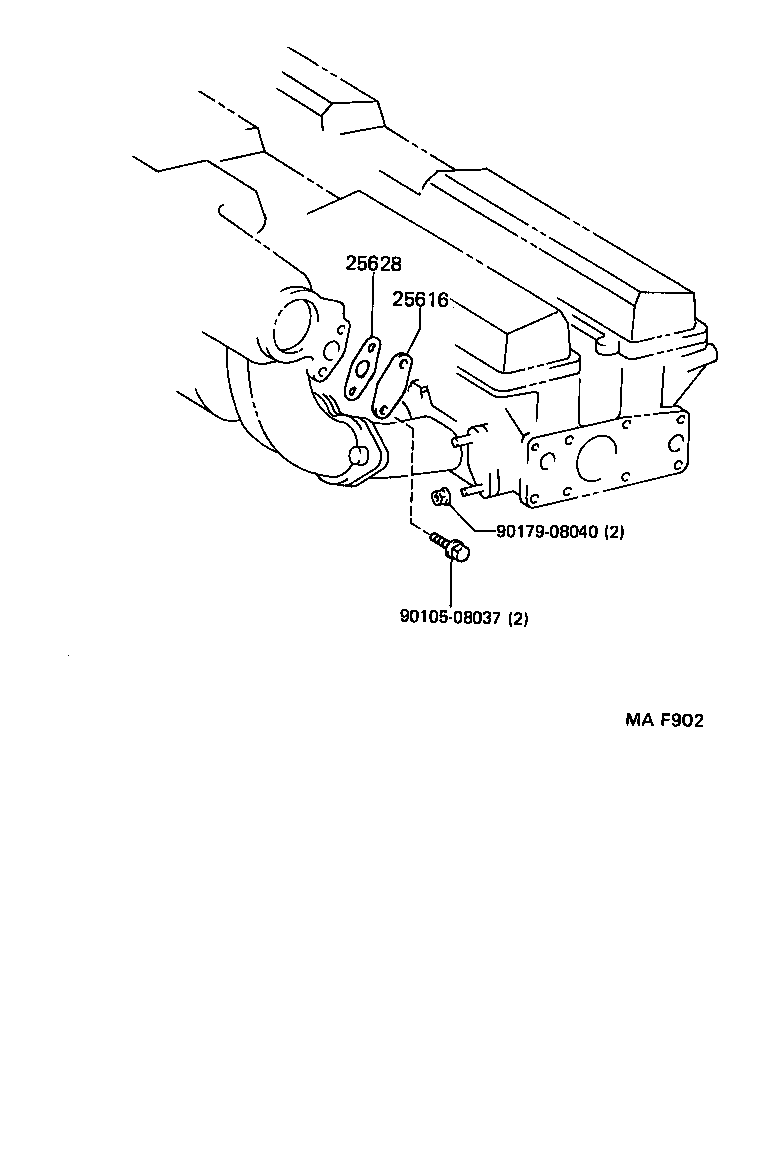

(8808-8908)7MGE

Click highlighted areas on diagram

diagram 25616 25628 9010508037 9017908040
Part # Description Qty Price
25616 - PLATE, HOLE COVER(FOR EGR PIPE)
25617-42010

7MGE..MA70

 1
25628 - GASKET, EGR INLET
25628-42010

7MG#..MA70

 1
25628-42020

7MG#..MA70..ARL,C

 1
Common parts
90105-08037
90179-08040

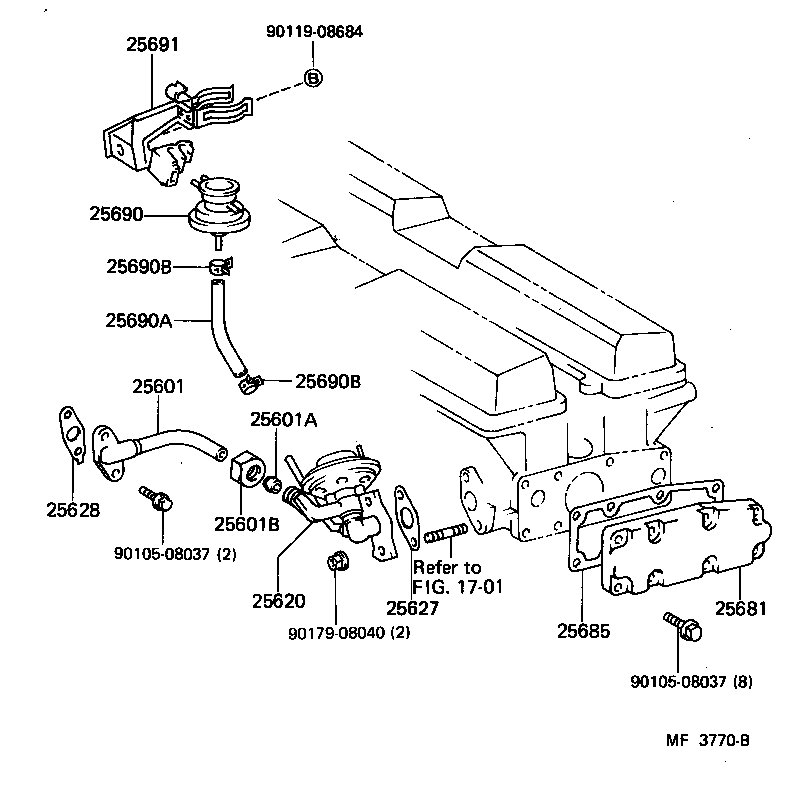

(8808- )7MGTE ; (8808- )7MGE..C

Click highlighted areas on diagram

diagram 1701 25601 25601A 25601B 25620 25627 25628 25681 25685 25690 25690A 25690B 25690B 25691 9010508037 9010508037 9011908684 9017908040
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-42010

7MGTE..MA70;7MGE..MA70..C

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-14003

7MG#..MA70..ARL,C

 1
90410-14001

7MGTE..MA70;7MGE..MA70..C

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-22076

7MGTE..MA70;7MGE..MA70..C

 1
90402-22013

7MG#..MA70..ARL,C

 1
25620 - VALVE ASSY, EGR
25620-42020

7MGE..MA70..C

 1
25627 - GASKET, EGR VALVE
25627-42030

7MG#..MA70..ARL,C

 1
25628 - GASKET, EGR INLET
25628-42010

7MG#..MA70

 1
25628-42020

7MG#..MA70..ARL,C

 1
25681 - COOLER, EGR, NO.1
25681-42010

7MGTE..MA70;7MGE..MA70..C

 1
25685 - GASKET, EGR COOLER, NO.1
25685-42011

7MGTE..MA70;7MGE..MA70..C

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-42010

7MGE..MA70..C

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
25695-42010

7MGTE..MA70;7MGE..MA70..C

 1
25690B - CLIP(FOR EGR VACUUM MODULATOR)
90467-11009

7MGTE..MA70;7MGE..MA70..C

 2
25690B - CLIP(FOR EGR VACUUM MODULATOR)
90467-11009

7MGTE..MA70;7MGE..MA70..C

 2
25691 - BRACKET, EGR VACUUM MODULATOR
25691-42040

7MGTE..MA70;7MGE..MA70..RHD..C

 1
Common parts
90105-08037
90119-08684
90179-08040
Linked diagrams
1701
