MA70R-BLMVF (1988)

Toyota Supra

Production Aug 1988 - May 1993

Engine 7MGE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8808- )

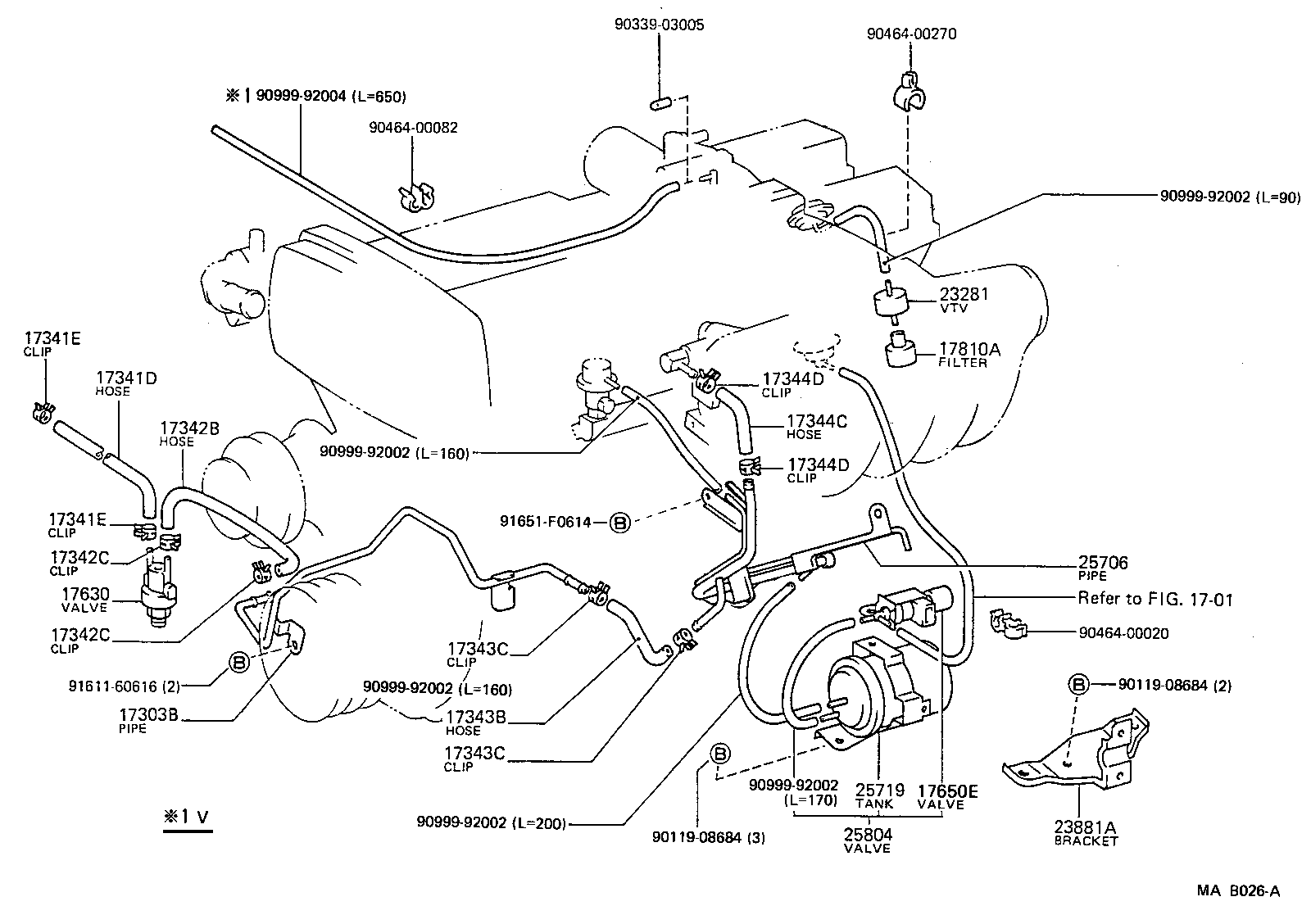

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

(8808-8908)7MGE..EUR,GEN,V ; (8908- )7MGE..GEN,V

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-42020	7MG#..MA70	08/1988 - 05/1993	1
17341D - HOSE, NO.1(FOR IDLE-UP)
90910-05186	7MG#..MA70	08/1988 - 05/1993	1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400	7MG#..MA70	08/1988 - 05/1993	2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400	7MG#..MA70	08/1988 - 05/1993	2
17342B - HOSE, NO.2(FOR IDLE-UP)
90445-10022	7MG#..MA70	08/1988 - 05/1993	1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400	7MG#..MA70	08/1988 - 05/1993	2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400	7MG#..MA70	08/1988 - 05/1993	2
17343B - HOSE, NO.3(FOR IDLE-UP)
90910-05185	7MG#..MA70	08/1988 - 05/1993	1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400	7MG#..MA70	08/1988 - 05/1993	2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400	7MG#..MA70	08/1988 - 05/1993	2
17344C - HOSE, NO.4(FOR IDLE-UP)
90910-05190	7MGTE..MA70;7MGE..MA70..ARL,EUR,GEN,V	08/1988 - 05/1993	1
17344D - CLIP, NO.4(FOR IDLE-UP HOSE)
96132-41300	7MG#..MA70	03/1989 - 05/1993	2
96132-40800	7MG#..MA70	08/1988 - 03/1989	2
17344D - CLIP, NO.4(FOR IDLE-UP HOSE)
96132-41300	7MG#..MA70	03/1989 - 05/1993	2
96132-40800	7MG#..MA70	08/1988 - 03/1989	2
17630 - VALVE ASSY, AIR CONTROL
17630-70010	7MG#..MA70	08/1988 - 05/1993	1
17650E - VALVE, VACUUM SWITCHING
90910-12010	7MGE..MA70..C NO.2	08/1989 - 05/1993	1
90910-12032	7MGE..MA70 NO.1	08/1988 - 05/1993	1
17810A - FILTER ASSY, AIR
90925-06006	7MG#..MA70	08/1988 - 05/1993	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014	7MG#..MA70	08/1988 - 05/1993	1
23881A - BRACKET, VACUUM CONTROL VALVE SET
23881-42010	7MGE..MA70	08/1988 - 05/1993	1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-42030	7MGE..MA70..4FC..V;7MGE..MA70..LB..5F..V;7MGE..MA70..ARL,C,EUR,GEN	08/1988 - 05/1993	1
25719 - TANK, VACUUM SURGE
25719-42010	7MGE..MA70	08/1988 - 05/1993	1
25804 - VALVE SET, VACUUM CONTROL
25804-42010	7MGE..MA70	08/1988 - 05/1993	1
Common parts
90119-08684
90339-03005
90464-00020
90464-00082
90464-00270
90999-92002
90999-92004
91611-60616
91651-F0614
Linked diagrams
1701

(8908- )7MGE..C

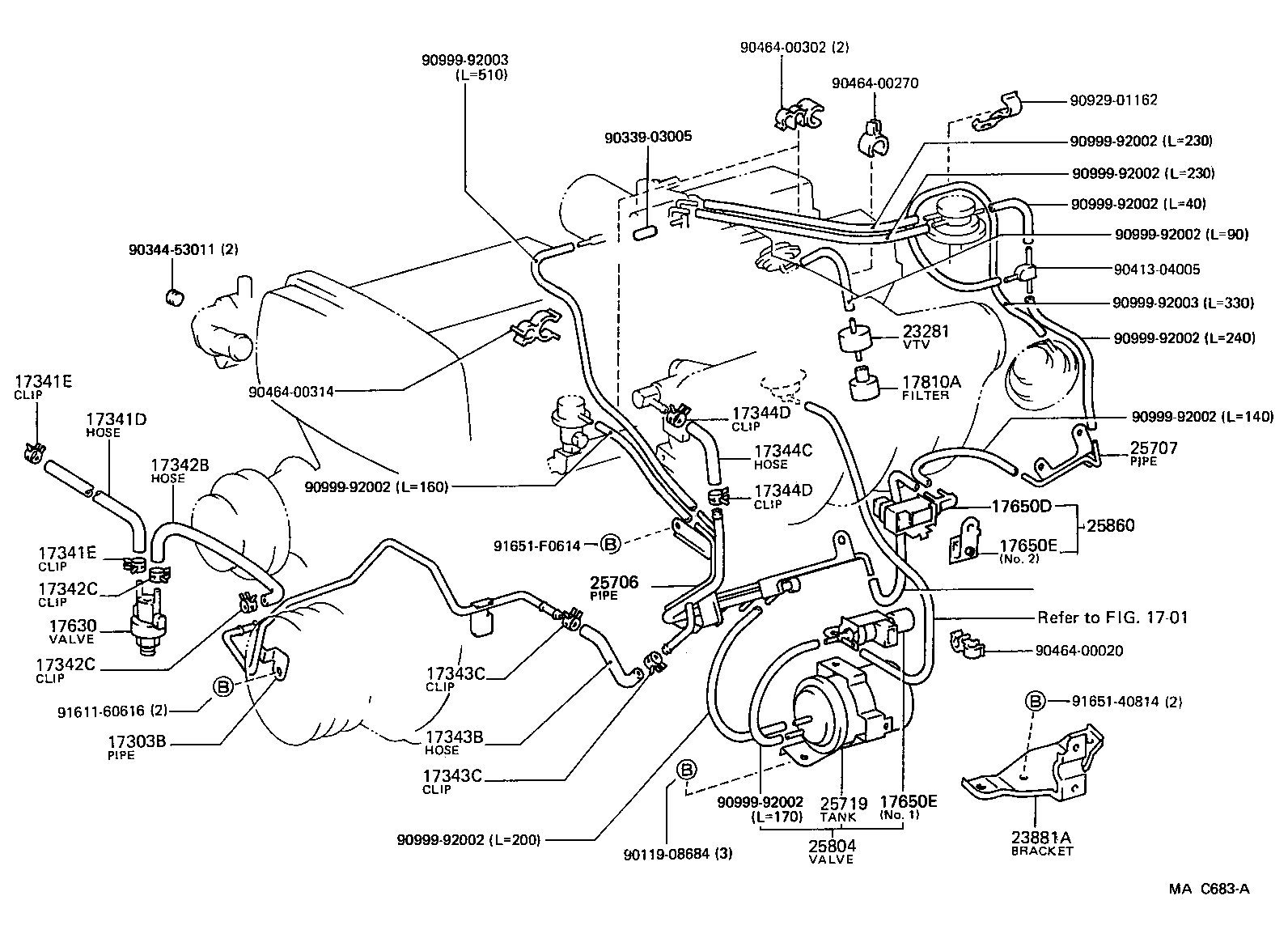

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-42020	7MG#..MA70	08/1988 - 05/1993	1
17341D - HOSE, NO.1(FOR IDLE-UP)
90910-05186	7MG#..MA70	08/1988 - 05/1993	1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400	7MG#..MA70	08/1988 - 05/1993	2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400	7MG#..MA70	08/1988 - 05/1993	2
17342B - HOSE, NO.2(FOR IDLE-UP)
90445-10022	7MG#..MA70	08/1988 - 05/1993	1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400	7MG#..MA70	08/1988 - 05/1993	2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400	7MG#..MA70	08/1988 - 05/1993	2
17343B - HOSE, NO.3(FOR IDLE-UP)
90910-05185	7MG#..MA70	08/1988 - 05/1993	1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400	7MG#..MA70	08/1988 - 05/1993	2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400	7MG#..MA70	08/1988 - 05/1993	2
17344C - HOSE, NO.4(FOR IDLE-UP)
90910-05190	7MGTE..MA70;7MGE..MA70..ARL,EUR,GEN,V	08/1988 - 05/1993	1
17344D - CLIP, NO.4(FOR IDLE-UP HOSE)
96132-41300	7MG#..MA70	03/1989 - 05/1993	2
96132-40800	7MG#..MA70	08/1988 - 03/1989	2
17344D - CLIP, NO.4(FOR IDLE-UP HOSE)
96132-41300	7MG#..MA70	03/1989 - 05/1993	2
96132-40800	7MG#..MA70	08/1988 - 03/1989	2
17630 - VALVE ASSY, AIR CONTROL
17630-70010	7MG#..MA70	08/1988 - 05/1993	1
17650D - BRACKET, VACUUM SWITCHING VALVE
25861-42010	7MGE..MA70..C	08/1989 - 05/1993	1
17650E - VALVE, VACUUM SWITCHING
90910-12010	7MGE..MA70..C NO.2	08/1989 - 05/1993	1
90910-12032	7MGE..MA70 NO.1	08/1988 - 05/1993	1
17650E - VALVE, VACUUM SWITCHING
90910-12010	7MGE..MA70..C NO.2	08/1989 - 05/1993	1
90910-12032	7MGE..MA70 NO.1	08/1988 - 05/1993	1
17810A - FILTER ASSY, AIR
90925-06006	7MG#..MA70	08/1988 - 05/1993	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014	7MG#..MA70	08/1988 - 05/1993	1
23881A - BRACKET, VACUUM CONTROL VALVE SET
23881-42010	7MGE..MA70	08/1988 - 05/1993	1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-42030	7MGE..MA70..4FC..V;7MGE..MA70..LB..5F..V;7MGE..MA70..ARL,C,EUR,GEN	08/1988 - 05/1993	1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-42010	7MGTE..MA70;7MGE..MA70..C	08/1988 - 05/1993	1
25719 - TANK, VACUUM SURGE
25719-42010	7MGE..MA70	08/1988 - 05/1993	1
25804 - VALVE SET, VACUUM CONTROL
25804-42010	7MGE..MA70	08/1988 - 05/1993	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-42010	7MGE..MA70..C	08/1989 - 05/1993	1
Common parts
90119-08684
90339-03005
90344-53011
90413-04005
90464-00020
90464-00270
90464-00302
90464-00314
90929-01162
90999-92002
90999-92003
91611-60616
91651-40814
91651-F0614
Linked diagrams
1701

MA70R-BLMVF (1988)

(8808- )

(8808-8908)7MGE..EUR,GEN,V ; (8908- )7MGE..GEN,V

(8908- )7MGE..C
