MA70R-BJMVZQ (1988)
Toyota Supra
Production
Aug 1988
-
Aug 1989
Engine
7MGTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )ARL

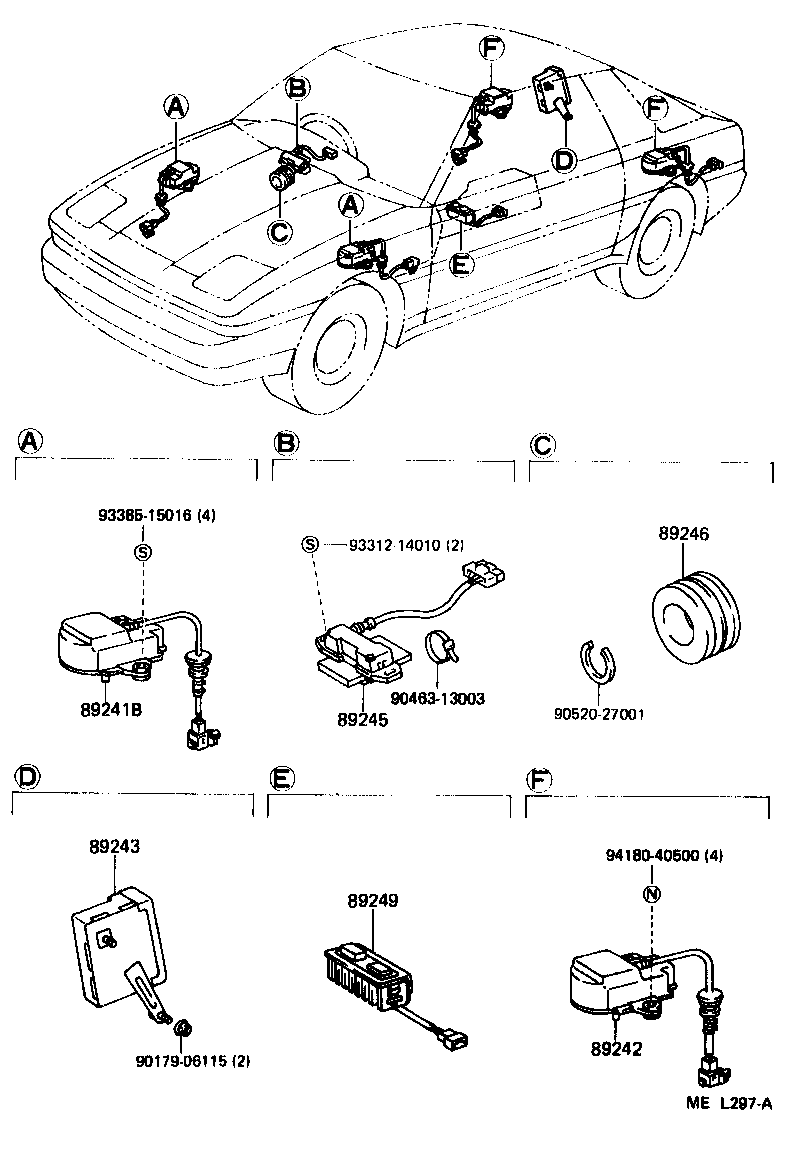

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89241B - ACTUATOR, ABSORBER CONTROL | ||||
| 89241-14010 |
MA70..ARL |
2 | ||
| 89242 - ACTUATOR, ABSORBER CONTROL, RR | ||||
| 89242-14010 |
MA70..ARL |
2 | ||
| 89243 - COMPUTER, ABSORBER CONTROL | ||||
| 89243-14030 |
MA70..ARL |
1 | ||
| 89245 - SENSOR, STEERING | ||||
| 89245-24020 |
MA70..ARL |
1 | ||
| 89246 - DISC, SENSOR STEERING | ||||
| 89246-22010 |
MA70..ARL |
1 | ||
| 89249 - SWITCH, ABSORBER CONTROL | ||||
| 89249-14010 |
MA70..ARL |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| 90463-13003 | ||||
| 90520-27001 | ||||
| 93312-14010 | ||||
| 93385-15016 | ||||
| 94180-40500 | ||||
