MA70L-BLPVZC (1988)

Toyota Supra

Production Aug 1988 - May 1993
Engine 7MGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

Click highlighted areas on diagram

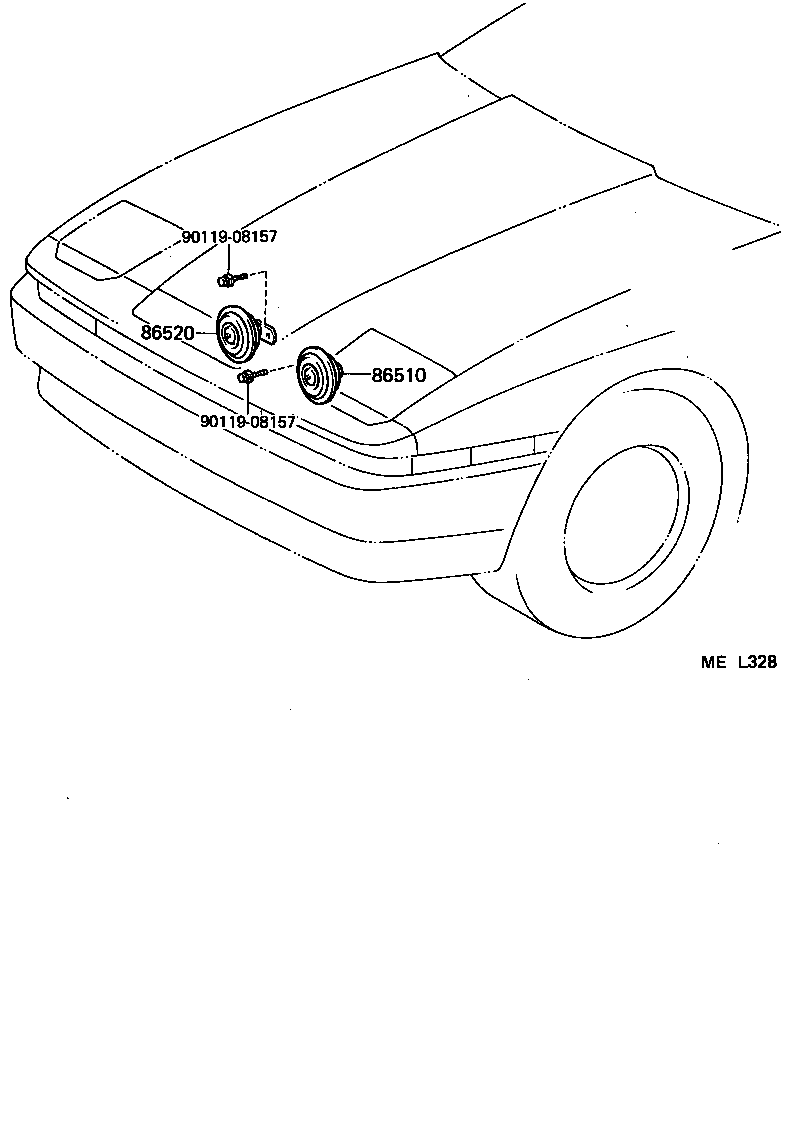

diagram 86510 86520 9011908157 9011908157
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-14230

MA70..C,EUR

 1
86510-14240

MA70..GEN,V

 1
86520 - HORN ASSY, LOW PITCHED
86520-14240

MA70..GEN,V

 1
86520-14230

MA70..C,EUR

 1
Common parts
90119-08157
