MA70L-BLPVFW (1988)
Toyota Supra

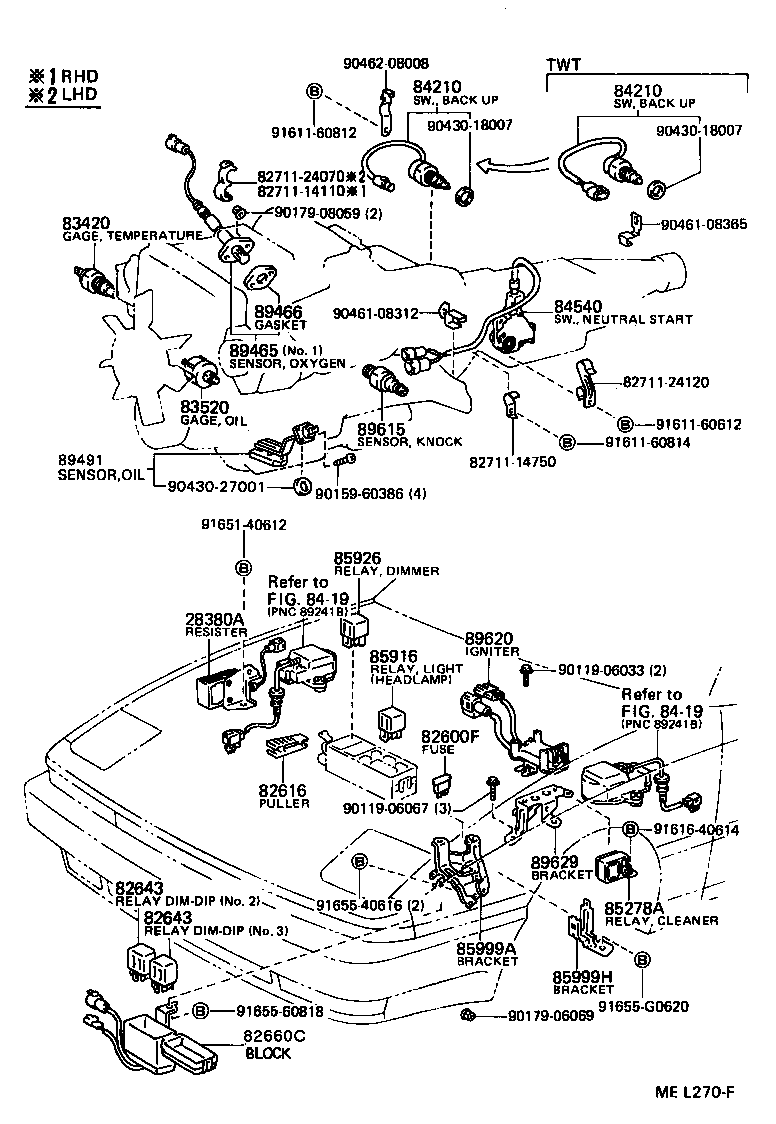

ILLUST NO. 1 OF 4(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-70010 |
7MG#..MA70 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
MA70..LHD..(C,EUR) 5A |
1 | ||
| 90982-09005 |
MA70 7.5A |
4 | ||
| 90982-09002 |
MA70 10A |
3 | ||
| 90982-09003 |
MA70 15A |
5 | ||
| 90982-09004 |
MA70 20A,YELLOW |
1 | ||
| 90982-07011 |
MA70 30A,GREEN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
MA70 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
MA70 |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-14023 |
MA70 NIPPONDENSO |
1 | ||
| 83520-55011 |
MA70 YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30240 |
MA70..4FC |
1 | ||
| 85278A - RELAY ASSY, HEADLAMP CLEANER CONTROL | ||||
| 85276-14060 |
MA70..C,EUR |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
MA70 HEADLAMP |
1 | ||
| 90987-02002 |
MA70 MARUKO,TAIL LAMP |
1 | ||
| 90987-02004 |
MA70 *ND,TAIL LAMP |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
MA70..C,EUR |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-24020 |
MA70 |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-24030 |
MA70 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
MA70..ARL,C NO.1 |
1 | ||
| 89466-20020 |
MA70..ARL,C NO.1 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-30020 |
MA70..TWC |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-14430 |
MA70..TWC |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-14050 |
MA70 |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-14750 | ||||
| 82711-24070 | ||||
| 82711-24120 | ||||
| 90119-06033 | ||||
| 90119-06067 | ||||
| 90159-60386 | ||||
| 90179-06069 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90430-27001 | ||||
| 90461-08312 | ||||
| 90461-08365 | ||||
| 90462-08008 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91611-60814 | ||||
| 91616-40614 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
| 91655-60818 | ||||
| 91655-G0620 | ||||
| Linked diagrams | ||||
| 8419 | ||||

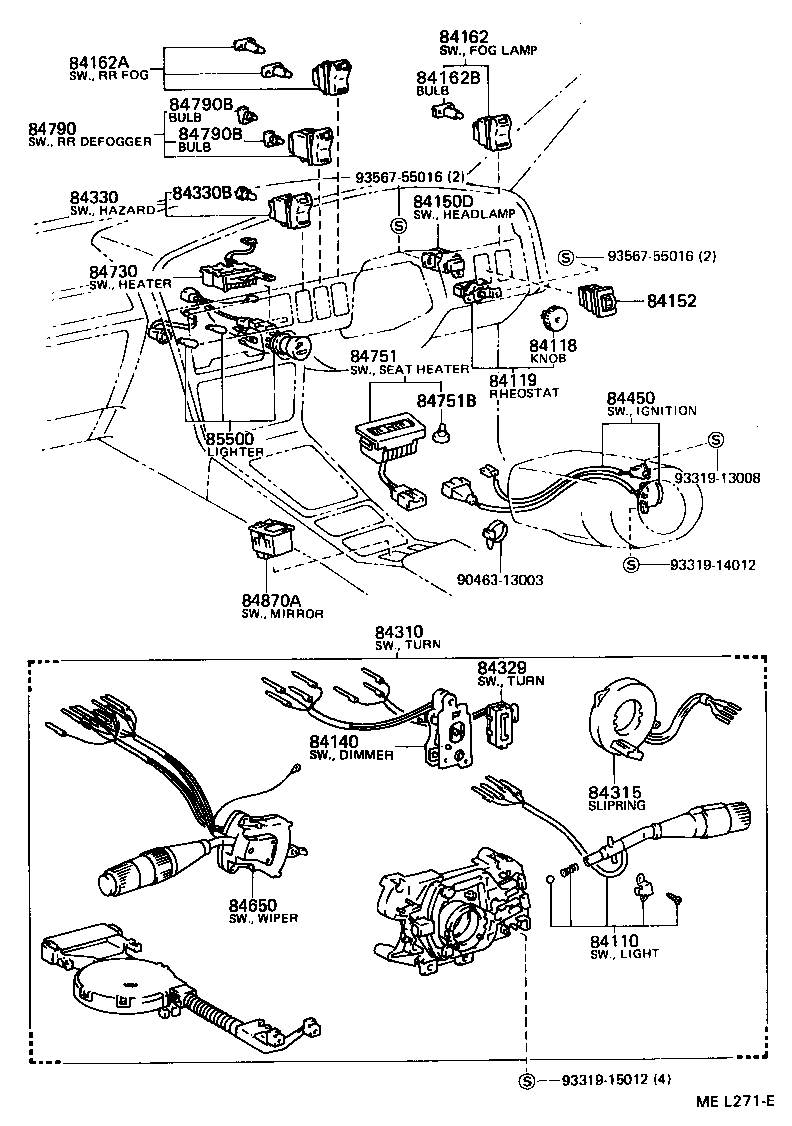

ILLUST NO. 2 OF 4(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80019 |
MA70..LHD |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-14020 |
MA70..C,EUR,GEN,V |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-14140 |
MA70..C,EUR,GEN,V |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20240 |
MA70..LHD TOKAIRIKA |
1 | ||
| 84140-20270 |
MA70..LHD MATSUSHITA |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-14010 |
MA70..RHD..TWT..C;MA70..TWC..(C,EUR) |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-14090 |
MA70..C,EUR,GEN,V |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84160-14100 |
MA70..C,EUR |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10120 |
MA70 12V 0.7W |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1B090 |
MA70..LHD |
1 | ||
| 84315 - SLIPRING, HORN CONTACT | ||||
| 84315-14070 |
MA70..LHD TOKAIRIKA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-20020 |
MA70..LHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-14140 |
MA70 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10110 |
MA70 12V 1.12W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-14070 |
MA70 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-14590 |
MA70..LHD MATSUSHITA |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-14200 |
MA70 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-14020 |
MA70..LHD..(C,EUR) |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 90981-11014 |
MA70..LHD..(C,EUR) 14V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-14250 |
MA70..GEN,V;MA70..LHD..(C,EUR) |
1 | ||
| 84790-14240 |
MA70..LHD..(C,EUR) COLD SPEC |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10120 |
MA70..GEN,V;MA70..LHD..(C,EUR) 12V 0.7W |
2 | ||
| 84999-10200 |
MA70..LHD..(C,EUR) 14V 0.56W |
2 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10120 |
MA70..GEN,V;MA70..LHD..(C,EUR) 12V 0.7W |
2 | ||
| 84999-10200 |
MA70..LHD..(C,EUR) 14V 0.56W |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20080 |
MA70 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-14151 |
MA70..C,EUR,GEN,V |
1 | ||
| 85500-14151 |
MA70 |
1 | ||
| Common parts | ||||
| 90463-13003 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93567-55016 | ||||

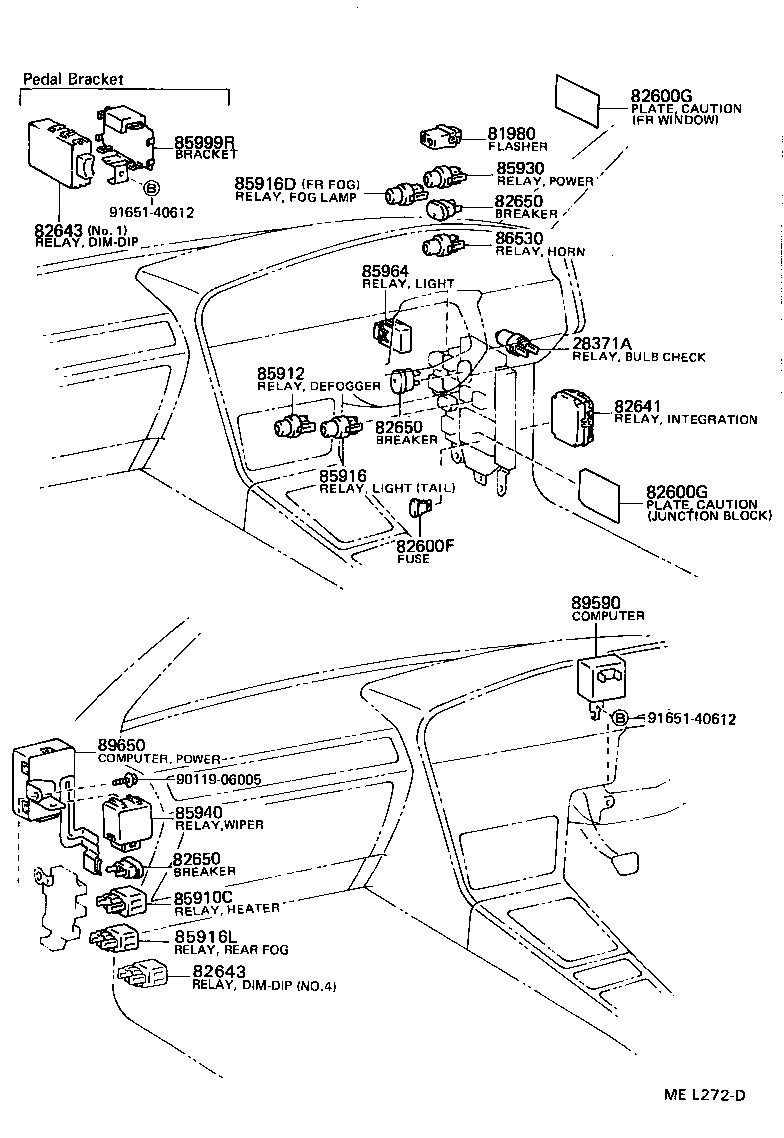

ILLUST NO. 3 OF 4(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
MA70 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
MA70..LHD..(C,EUR) 5A |
1 | ||
| 90982-09005 |
MA70 7.5A |
4 | ||
| 90982-09002 |
MA70 10A |
3 | ||
| 90982-09003 |
MA70 15A |
5 | ||
| 90982-09004 |
MA70 20A,YELLOW |
1 | ||
| 90982-07011 |
MA70 30A,GREEN |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82685-14020 |
MA70..ARL,GEN,V FR WINDOW |
1 | ||
| 82683-14120 |
MA70..LHD..(C,EUR) |
1 | ||
| 82683-14110 |
MA70..LHD..(GEN,V) |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82685-14020 |
MA70..ARL,GEN,V FR WINDOW |
1 | ||
| 82683-14120 |
MA70..LHD..(C,EUR) |
1 | ||
| 82683-14110 |
MA70..LHD..(GEN,V) |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-20030 |
MA70..LHD..(GEN,V) |
1 | ||
| 82641-20110 |
MA70..C,EUR |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
MA70 30A |
2 | ||
| 82650-20020 |
MA70 40A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
MA70 30A |
2 | ||
| 82650-20020 |
MA70 40A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
MA70 30A |
2 | ||
| 82650-20020 |
MA70 40A |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
MA70 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
MA70 NIPPONDENSO |
1 | ||
| 90987-02002 |
MA70 MARUKO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
MA70 HEADLAMP |
1 | ||
| 90987-02002 |
MA70 MARUKO,TAIL LAMP |
1 | ||
| 90987-02004 |
MA70 *ND,TAIL LAMP |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02002 |
MA70 MARUKO |
1 | ||
| 90987-02004 |
MA70 NIPPONDENSO |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02004 |
MA70..C,EUR NIPPONDENSO |
1 | ||
| 90987-02002 |
MA70..C,EUR MARUKO |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02002 |
MA70 MARUKO |
1 | ||
| 90987-02004 |
MA70 NIPPONDENSO |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-14090 |
MA70..LHD..C;MA70..RHD..(ARL,C,EUR) |
1 | ||
| 85940-14080 |
MA70..GEN,V;MA70..LHD..EUR |
1 | ||
| 85940-14090 |
MA70..LHD..EUR W(*73) |
1 | ||
| 85964 - RELAY, LIGHT RETRACTOR | ||||
| 85964-20012 |
MA70 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
MA70 NIPPONDENSO |
1 | ||
| 90987-02002 |
MA70 MARUKO |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-14040 |
MA70..LHD..EUR *FRG |
1 | ||
| 89650-14040 |
MA70..LHD..C |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 91651-40612 | ||||

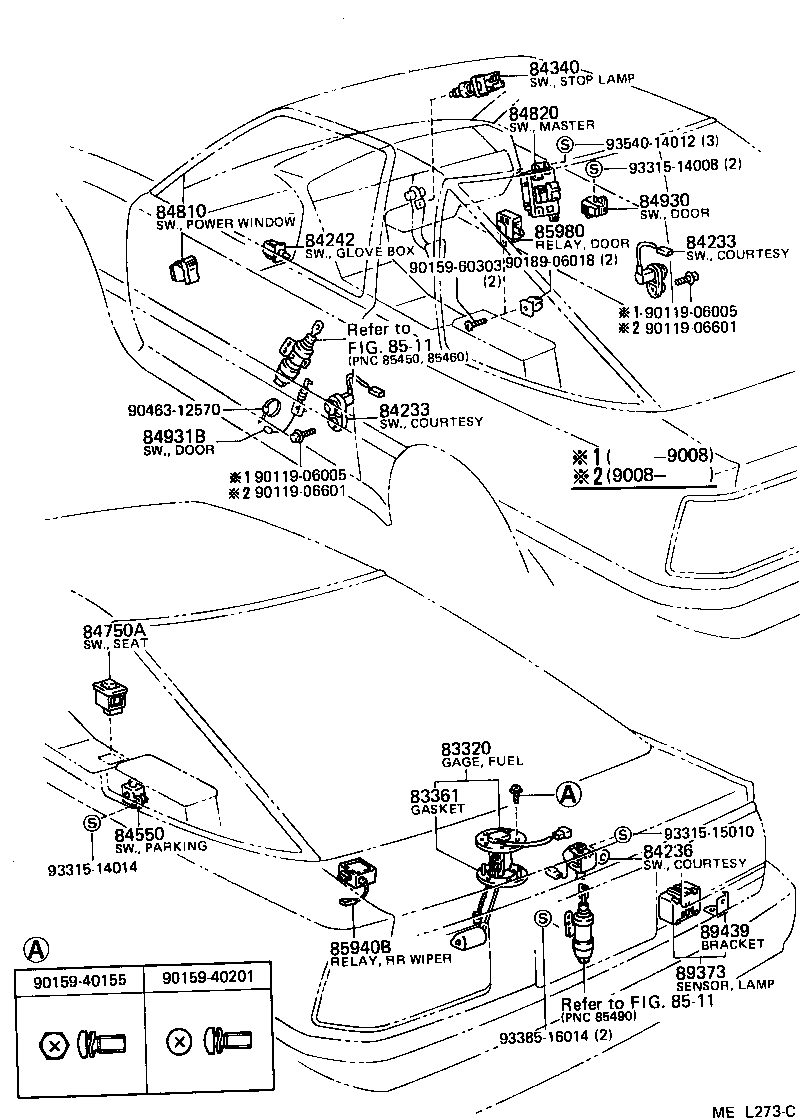

ILLUST NO. 4 OF 4(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80051 |
MA70..C,EUR,GEN,V |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
MA70..C,EUR,GEN,V |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-24010 |
MA70 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-24010 |
MA70 |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20130 |
MA70 |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
MA70 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22100 |
MA70 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-14030 |
MA70..LHD |
1 | ||
| 84750A - SWITCH ASSY, SEAT | ||||
| 84750-14050 |
MA70 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-20080 |
MA70 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-14220 |
MA70..LHD..(GEN,V) |
1 | ||
| 84820-20200 |
MA70..LHD..(C,EUR) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-14080 |
MA70 |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-14020 |
MA70 |
2 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-20080 |
MA70 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-14090 |
MA70..LHD..(C,EUR) |
1 | ||
| 85980-20060 |
MA70..LHD..(GEN,V) |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-14030 |
MA70..LHD..(C,EUR) *FRG |
1 | ||
| 89373-14010 |
MA70..LHD..(C,EUR) |
1 | ||
| 89373-14040 |
MA70..LHD..(GEN,V) |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-14010 |
MA70 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06601 | ||||
| 90159-40155 | ||||
| 90159-40201 | ||||
| 90159-60303 | ||||
| 90189-06018 | ||||
| 90463-12570 | ||||
| 93315-14008 | ||||
| 93315-14014 | ||||
| 93315-15010 | ||||
| 93385-16014 | ||||
| 93540-14012 | ||||
| Linked diagrams | ||||
| 8511 | ||||
