MA70L-BLPVFW (1988)
Toyota Supra
Production
Aug 1988
-
Aug 1989
Engine
7MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

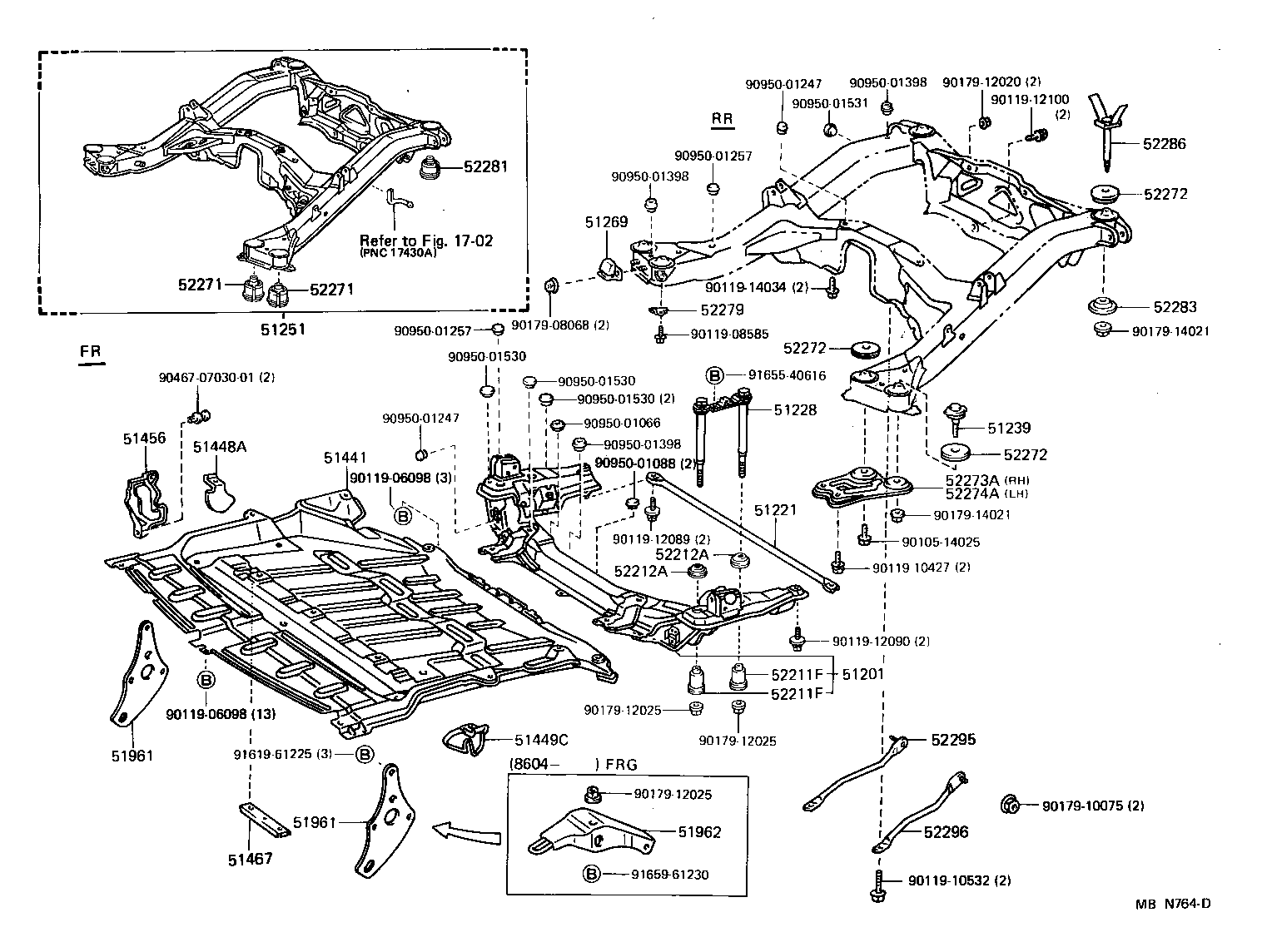

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51210-14030 |
MA70..LHD |
1 | ||
| 51221 - CROSSMEMBER, FRONT SUSPENSION, NO.1 | ||||
| 51221-14010 |
MA70 |
1 | ||
| 51228 - PLATE, SUSPENSION MEMBER SET | ||||
| 51229-14040 |
MA70 |
2 | ||
| 51239 - PLATE, REAR SUSPENSION MEMBER SET | ||||
| 51239-14010 |
MA70 |
2 | ||
| 51251 - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51270-14021 |
MA70 |
1 | ||
| 51269 - DAMPER, DIFFERENTIAL SUPPORT MEMBER | ||||
| 51269-14010 |
MA70 |
2 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-14110 |
MA70 |
1 | ||
| 51448A - COVER, ENGINE SIDE UNDER, RH | ||||
| 51448-14010 |
MA70..TWC |
1 | ||
| 51449C - COVER, ENGINE SIDE UNDER, LH | ||||
| 51449-14010 |
MA70..TWC;MA70..TWT..ARL;MA70..LHD..5F..TWT |
1 | ||
| 51456 - SEAL, ENGINE SIDE COVER, UPPER | ||||
| 51456-14010 |
MA70..LHD..TWC..(C,EUR) |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51963-14100 |
MA70 |
2 | ||
| 51961 - HOOK, NO.1 | ||||
| 51963-14100 |
MA70 |
2 | ||
| 51962 - HOOK, NO.2 | ||||
| 51093-14020 |
MA70..LHD..(C,EUR) |
1 | ||
| 52211F - CUSHION, BODY MOUNTING, FRONT UPPER | ||||
| 52211-14010 |
MA70 |
4 | ||
| 52211F - CUSHION, BODY MOUNTING, FRONT UPPER | ||||
| 52211-14010 |
MA70 |
4 | ||
| 52212A - CUSHION, BODY MOUNTING, NO.2 | ||||
| 52212-14010 |
MA70 |
4 | ||
| 52212A - CUSHION, BODY MOUNTING, NO.2 | ||||
| 52212-14010 |
MA70 |
4 | ||
| 52271 - CUSHION, REAR SUSPENSION MEMBER | ||||
| 52271-14020 |
MA70 INNER |
2 | ||
| 52271-14030 |
MA70 OUTER |
2 | ||
| 52271 - CUSHION, REAR SUSPENSION MEMBER | ||||
| 52271-14020 |
MA70 INNER |
2 | ||
| 52271-14030 |
MA70 OUTER |
2 | ||
| 52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER | ||||
| 52272-14020 |
MA70 |
6 | ||
| 52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER | ||||
| 52272-14020 |
MA70 |
6 | ||
| 52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER | ||||
| 52272-14020 |
MA70 |
6 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52273-14020 |
MA70 |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52274-14010 |
MA70 |
1 | ||
| 52279 - RETAINER, REAR SUSPENSION MEMBER CUSHION | ||||
| 52279-14010 |
MA70 |
4 | ||
| 52281 - CUSHION, DIFFERENTIAL SUPPORT MEMBER | ||||
| 52281-14030 |
MA70 |
2 | ||
| 52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-14020 |
MA70 |
2 | ||
| 52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2 | ||||
| 52286-14020 |
MA70 |
2 | ||
| 52295 - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-24010 |
MA70 |
1 | ||
| 52296 - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52296-24010 |
MA70 |
1 | ||
| Common parts | ||||
| 90105-14025 | ||||
| 90119-06098 | ||||
| 90119-08585 | ||||
| 90119-10427 | ||||
| 90119-10532 | ||||
| 90119-12089 | ||||
| 90119-12090 | ||||
| 90119-12100 | ||||
| 90119-14034 | ||||
| 90179-08068 | ||||
| 90179-10075 | ||||
| 90179-12020 | ||||
| 90179-12025 | ||||
| 90179-14021 | ||||
| 90467-0703001 | ||||
| 90950-01066 | ||||
| 90950-01088 | ||||
| 90950-01247 | ||||
| 90950-01257 | ||||
| 90950-01398 | ||||
| 90950-01530 | ||||
| 90950-01531 | ||||
| 91619-61225 | ||||
| 91655-40616 | ||||
| 91659-61230 | ||||
| Linked diagrams | ||||
| 1702 | ||||
