MA70L-BLPVFW (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )LHD

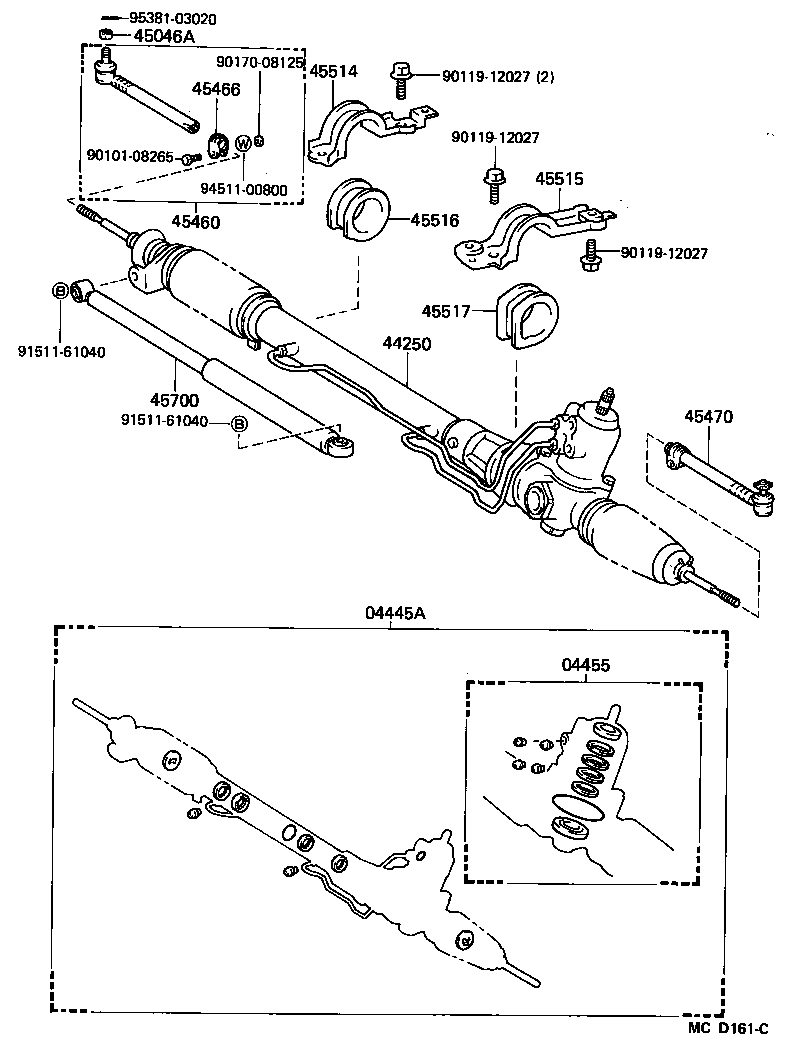

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-20040 |
MA70 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-20050 |
MA70 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-14090 |
MA70..LHD |
1 | ||
| 44250-14130 |
MA70..LHD..EUR W/SPEED SENSING PS |
1 | ||
| 44250-14090 |
MA70..LHD..(EUR,GEN) |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
MA70 |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-19225 |
MA70 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
MA70 |
2 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-19225 |
MA70 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45515-14080 |
MA70..LHD |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45514-14060 |
MA70..LHD |
1 | ||
| 45514-14060 |
MA70..LHD..(EUR,GEN) |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45517-14030 |
MA70..LHD |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45516-14010 |
MA70..LHD |
1 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90119-12027 | ||||
| 90170-08125 | ||||
| 91511-61040 | ||||
| 94511-00800 | ||||
| 95381-03020 | ||||
(8601- )LHD

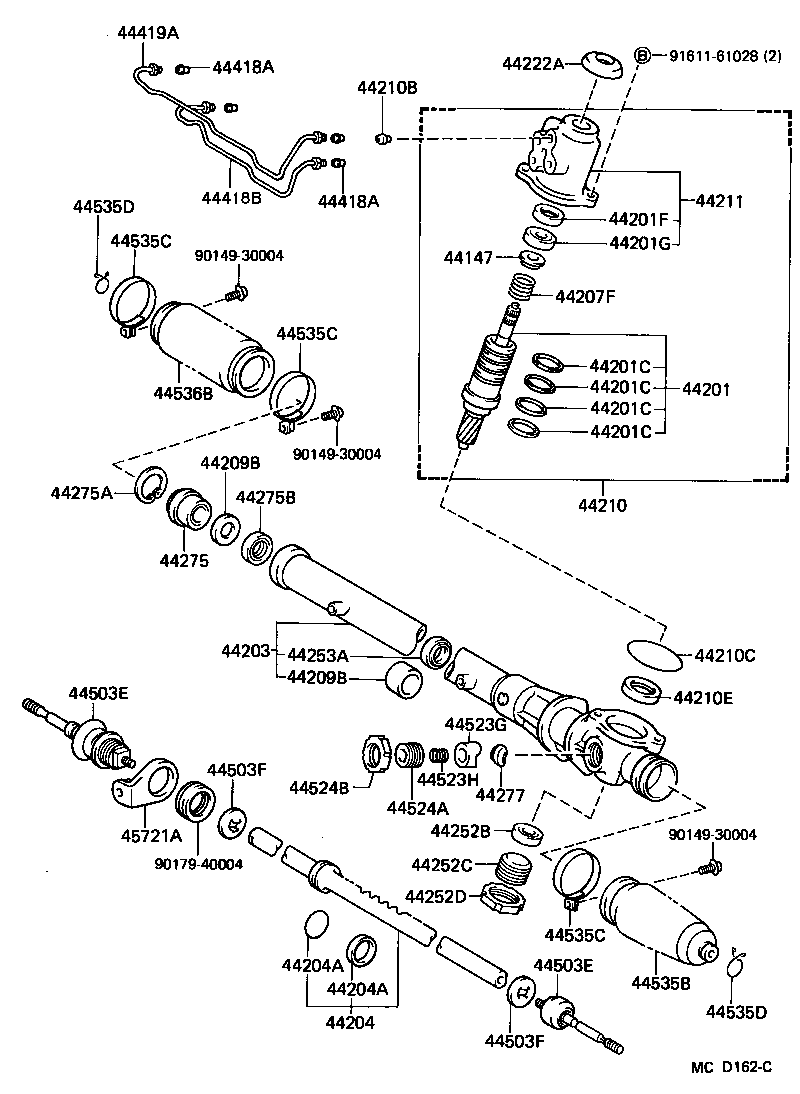

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44147 - SEAT, SPOOL VALVE SPRING | ||||
| 44147-24020 |
MA70 |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-14090 |
MA70..LHD |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
MA70 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
MA70 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
MA70 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
MA70 |
4 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19006 |
MA70 |
1 | ||
| 44201G - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19002 |
MA70 |
1 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-14060 |
MA70..LHD |
1 | ||
| 44203-14060 |
MA70..LHD..(EUR,GEN) |
1 | ||
| 44203-14061 |
MA70..LHD..(EUR,GEN) |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-14040 |
MA70..LHD |
1 | ||
| 44204-14040 |
MA70..LHD..(EUR,GEN) |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37001 |
MA70 OUTER |
1 | ||
| 90301-33003 |
MA70 INNER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37001 |
MA70 OUTER |
1 | ||
| 90301-33003 |
MA70 INNER |
1 | ||
| 44207F - SPRING, CONICAL(FOR VALVE CAP SUB-ASSY) | ||||
| 90502-15001 |
MA70 |
1 | ||
| 44209B - SPACER(FOR POWER STEERING CYLINDER HOUSING) | ||||
| 90560-27007 |
MA70..LHD RH |
1 | ||
| 90560-27009 |
MA70..LHD LH |
1 | ||
| 44209B - SPACER(FOR POWER STEERING CYLINDER HOUSING) | ||||
| 90560-27007 |
MA70..LHD RH |
1 | ||
| 90560-27009 |
MA70..LHD LH |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-14080 |
MA70..LHD..EUR W/SPEED SENSING PS |
1 | ||
| 44210-14100 |
MA70..LHD |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06002 |
MA70 |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 96711-24060 |
MA70 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90310-31001 |
MA70 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44022-14020 |
MA70..LHD |
1 | ||
| 44022-14040 |
MA70..LHD..EUR W/SPEED SENSING PS |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-20020 |
MA70 |
1 | ||
| 44252B - BEARING(FOR POWER STEERING PINION) | ||||
| 90363-13002 |
MA70 |
1 | ||
| 44252C - CAP(FOR POWER STEERING PINION) | ||||
| 45524-16010 |
MA70 |
2 | ||
| 44252D - NUT(FOR POWER STEERING PINION CAP) | ||||
| 90179-36002 |
MA70 |
2 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-26003 |
MA70 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-20040 |
MA70 |
1 | ||
| 44275-20041 |
MA70 |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-50002 |
MA70 |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-26002 |
MA70 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-20020 |
MA70 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-14050 |
MA70..LHD |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-14050 |
MA70..LHD |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04003 |
MA70 HOUSING SIDE |
2 | ||
| 96390-71200 |
MA70 CONTROL VALVE SIDE |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-14050 |
MA70..LHD |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19085 |
MA70..ARL,EUR,GEN,SA |
2 | ||
| 45503-19085 |
MA70 |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19085 |
MA70..ARL,EUR,GEN,SA |
2 | ||
| 45503-19085 |
MA70 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14007 |
MA70 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14007 |
MA70 |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-20020 |
MA70 |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23007 |
MA70 |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
MA70 |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
MA70 |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-14040 |
MA70 |
1 | ||
| 45535-14040 |
MA70..ARL,EUR,GEN,SA |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90949-01081 |
MA70 |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90949-01081 |
MA70 |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90949-01081 |
MA70 |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
MA70 |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
MA70 |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-14040 |
MA70..ARL,EUR,GEN,SA |
1 | ||
| 45535-14040 |
MA70 |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 90179-40004 | ||||
| 91611-61028 | ||||
