MA70L-BLPVFV (1986)

Toyota Supra

Production Jan 1986 - Aug 1988
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )

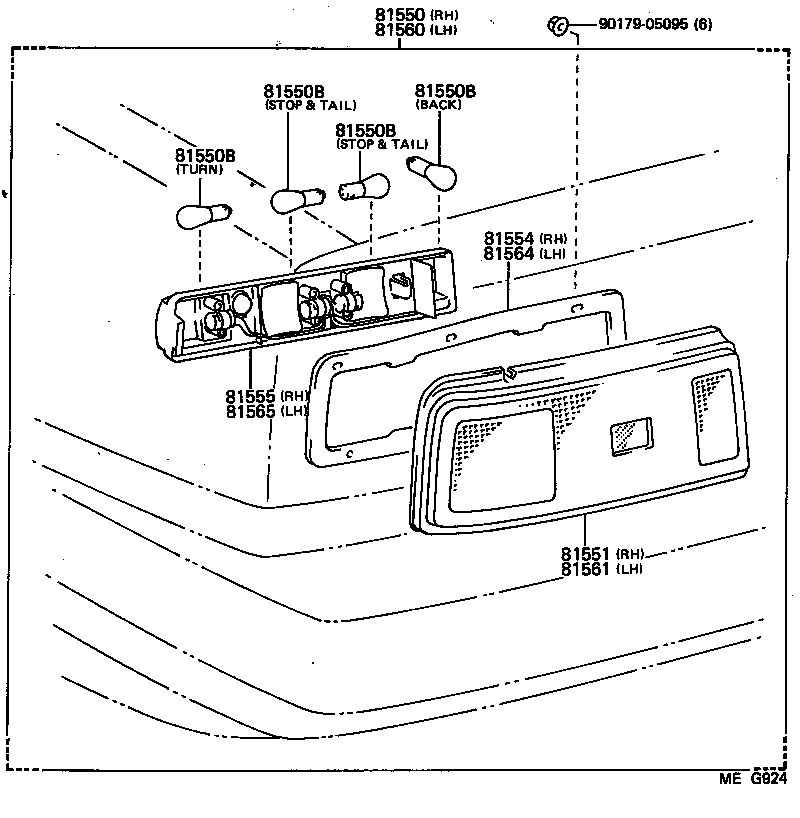

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81550B 81551 81554 81555 81560 81561 81564 81565 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-14580

MA70..ARL,GCC,GEN,SA

 1
81550-14580

MA70..ARL,GCC,GEN

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

MA70

12V 21/5W,12V 21/5W(STOP/TAIL)

 4
99132-11230

MA70..ARL,GCC,GEN

12V 23W,12V 23W(TURN OR BACK)

 4
99132-11230

MA70..ARL,GCC,GEN,SA

12V 23W,12V 23W(TURN OR BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

MA70

12V 21/5W,12V 21/5W(STOP/TAIL)

 4
99132-11230

MA70..ARL,GCC,GEN

12V 23W,12V 23W(TURN OR BACK)

 4
99132-11230

MA70..ARL,GCC,GEN,SA

12V 23W,12V 23W(TURN OR BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

MA70

12V 21/5W,12V 21/5W(STOP/TAIL)

 4
99132-11230

MA70..ARL,GCC,GEN

12V 23W,12V 23W(TURN OR BACK)

 4
99132-11230

MA70..ARL,GCC,GEN,SA

12V 23W,12V 23W(TURN OR BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

MA70

12V 21/5W,12V 21/5W(STOP/TAIL)

 4
99132-11230

MA70..ARL,GCC,GEN

12V 23W,12V 23W(TURN OR BACK)

 4
99132-11230

MA70..ARL,GCC,GEN,SA

12V 23W,12V 23W(TURN OR BACK)

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-14580

MA70

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-14580

MA70

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-14580

MA70..ARL,GCC,GEN

 1
81555-14580

MA70..ARL,GCC,GEN,SA

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-14610

MA70..ARL,GCC,GEN

 1
81560-14610

MA70..ARL,GCC,GEN,SA

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-14610

MA70

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-14580

MA70

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-14610

MA70..ARL,GCC,GEN

 1
81565-14610

MA70..ARL,GCC,GEN,SA

 1
Common parts
90179-05095
