8718 - HEATING & AIR CONDITIONING - COOLER PIPING

MA70L-BLPVFC (1986)

Toyota Supra

Production Jan 1986 - Aug 1988

Engine 7MGE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8601-8701)LHD

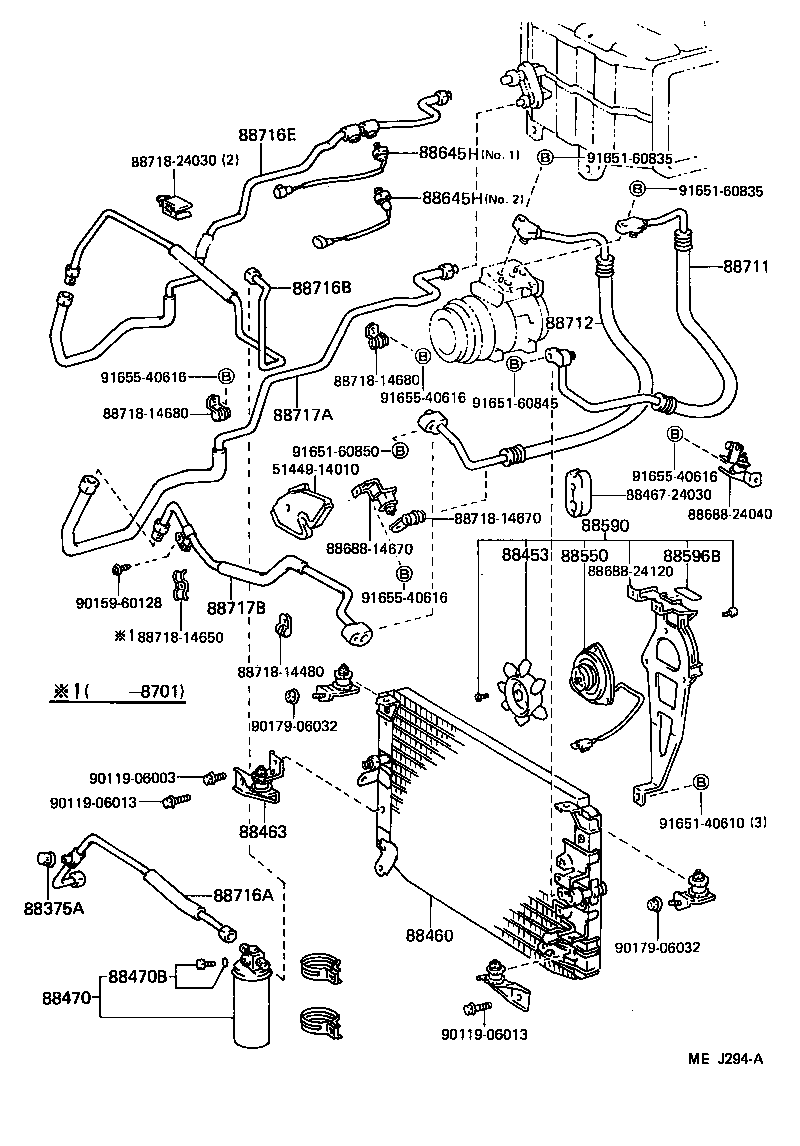

Click highlighted areas on diagram

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30270	MA70..EUR,GCC,GEN,SA	01/1986 - 03/1987	1
88375-20010	MA70..EUR,GCC,GEN,SA	03/1987 - 08/1988	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-12040	MA70	01/1986 - 08/1988	1
88460 - CONDENSER ASSY, COOLER
88460-14250	MA70..LHD	01/1986 - 01/1987	1
88460-14251	MA70..LHD..TWC	01/1987 - 09/1987	1
88460-14252	MA70..LHD..TWC	09/1987 - 08/1988	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-24040	MA70..EUR,GCC,GEN,SA	01/1986 - 08/1988	1
88463-14070	MA70..LHD..TWC	09/1987 - 01/1988	1
88463-24050	MA70..LHD..TWC	01/1988 - 12/2999	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95401	MA70	01/1986 - 08/1988	1
88470B - BOLT, FUSE
88475-12020	MA70	01/1986 - 08/1988	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-14030	MA70	01/1986 - 08/1988	1
88590 - BLOWER ASSY, W/SHROUD
88590-14010	MA70..TWC	01/1986 - 08/1988	1
88596B - PLATE, CAUTION, NO.1
88596-24010	MA70	01/1986 - 08/1988	1
88645H - SWITCH, PRESSURE NO.1
88645-14010	MA70..LHD NO.1	01/1986 - 08/1988	1
88645-10020	MA70 NO.2	01/1986 - 08/1988	1
88645H - SWITCH, PRESSURE NO.1
88645-14010	MA70..LHD NO.1	01/1986 - 08/1988	1
88645-10020	MA70 NO.2	01/1986 - 08/1988	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-24070	MA70	01/1986 - 08/1988	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-1B090	MA70..LHD	01/1986 - 08/1988	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-24080	MA70	01/1986 - 01/1987	1
88716-1B120	MA70..LHD	01/1987 - 03/1987	1
88716-1B121	MA70..LHD	03/1987 - 08/1988	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1B071	MA70..LHD	01/1987 - 09/1987	1
88716-1B070	MA70..LHD	01/1986 - 01/1987	1
88716-1B073	MA70..LHD	09/1987 - 08/1988	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1B080	MA70..LHD	01/1986 - 08/1986	1
88716-1B111	MA70..LHD	01/1987 - 09/1987	1
88716-1B110	MA70..LHD	08/1986 - 01/1987	1
88716-1B112	MA70..LHD	09/1987 - 08/1988	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-14310	MA70..LHD	08/1986 - 01/1987	1
88717-14312	MA70..LHD..TWC	09/1987 - 08/1988	1
88717-14311	MA70..LHD	01/1987 - 09/1987	1
88717-14290	MA70..LHD	01/1986 - 08/1986	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-14281	MA70..LHD	01/1987 - 09/1987	1
88717-14282	MA70..LHD	09/1987 - 08/1988	1
88717-14280	MA70..LHD	01/1986 - 01/1987	1
Common parts
51449-14010
88467-24030
88688-14670
88688-24040
88688-24120
88718-14480
88718-14650
88718-14670
88718-14680
88718-24030
90119-06003
90119-06013
90179-06032
91651-40610
91651-60835
91651-60845
91651-60850
91655-40616

(8701- )LHD

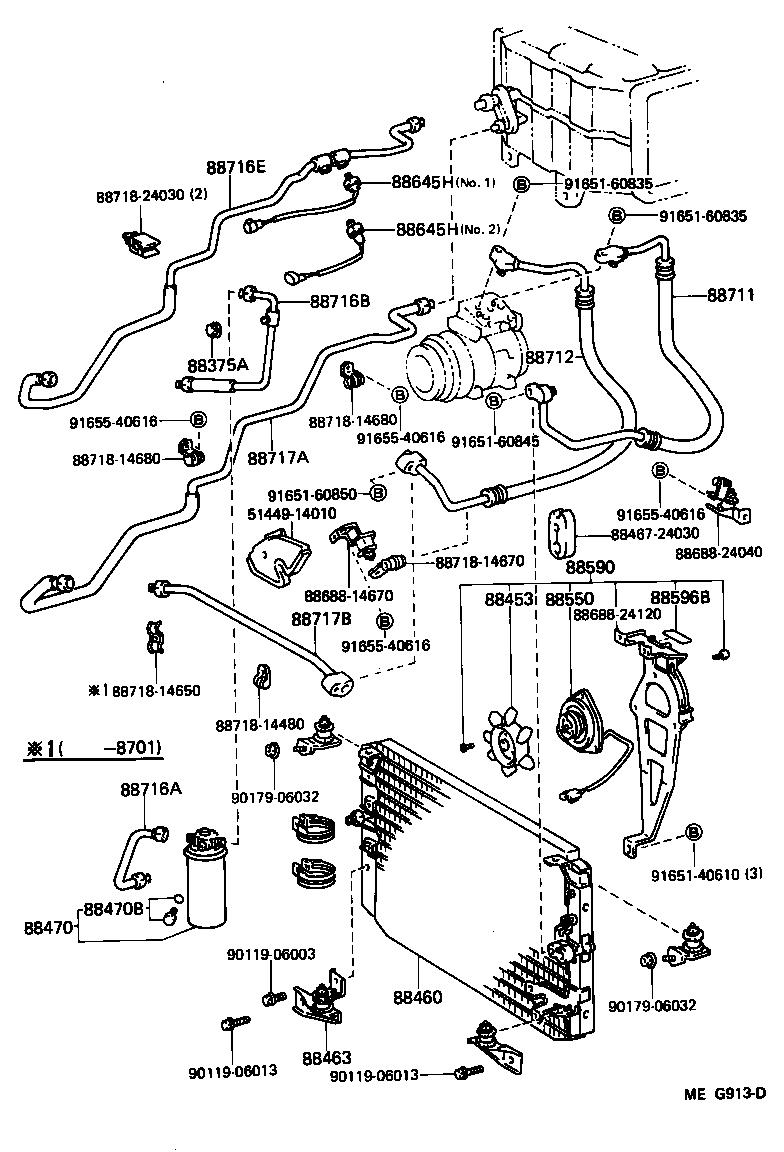

Click highlighted areas on diagram

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30270	MA70..EUR,GCC,GEN,SA	01/1986 - 03/1987	1
88375-20010	MA70..EUR,GCC,GEN,SA	03/1987 - 08/1988	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-12040	MA70	01/1986 - 08/1988	1
88460 - CONDENSER ASSY, COOLER
88460-14250	MA70..LHD	01/1986 - 01/1987	1
88460-14251	MA70..LHD..TWC	01/1987 - 09/1987	1
88460-14252	MA70..LHD..TWC	09/1987 - 08/1988	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-24040	MA70..EUR,GCC,GEN,SA	01/1986 - 08/1988	1
88463-14070	MA70..LHD..TWC	09/1987 - 01/1988	1
88463-24050	MA70..LHD..TWC	01/1988 - 12/2999	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95401	MA70	01/1986 - 08/1988	1
88470B - BOLT, FUSE
88475-12020	MA70	01/1986 - 08/1988	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-14030	MA70	01/1986 - 08/1988	1
88590 - BLOWER ASSY, W/SHROUD
88590-14010	MA70..TWC	01/1986 - 08/1988	1
88596B - PLATE, CAUTION, NO.1
88596-24010	MA70	01/1986 - 08/1988	1
88645H - SWITCH, PRESSURE NO.1
88645-14010	MA70..LHD NO.1	01/1986 - 08/1988	1
88645-10020	MA70 NO.2	01/1986 - 08/1988	1
88645H - SWITCH, PRESSURE NO.1
88645-14010	MA70..LHD NO.1	01/1986 - 08/1988	1
88645-10020	MA70 NO.2	01/1986 - 08/1988	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-24070	MA70	01/1986 - 08/1988	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-1B090	MA70..LHD	01/1986 - 08/1988	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-24080	MA70	01/1986 - 01/1987	1
88716-1B120	MA70..LHD	01/1987 - 03/1987	1
88716-1B121	MA70..LHD	03/1987 - 08/1988	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1B071	MA70..LHD	01/1987 - 09/1987	1
88716-1B070	MA70..LHD	01/1986 - 01/1987	1
88716-1B073	MA70..LHD	09/1987 - 08/1988	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1B080	MA70..LHD	01/1986 - 08/1986	1
88716-1B111	MA70..LHD	01/1987 - 09/1987	1
88716-1B110	MA70..LHD	08/1986 - 01/1987	1
88716-1B112	MA70..LHD	09/1987 - 08/1988	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-14310	MA70..LHD	08/1986 - 01/1987	1
88717-14312	MA70..LHD..TWC	09/1987 - 08/1988	1
88717-14311	MA70..LHD	01/1987 - 09/1987	1
88717-14290	MA70..LHD	01/1986 - 08/1986	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-14281	MA70..LHD	01/1987 - 09/1987	1
88717-14282	MA70..LHD	09/1987 - 08/1988	1
88717-14280	MA70..LHD	01/1986 - 01/1987	1
Common parts
51449-14010
88467-24030
88688-14670
88688-24040
88688-24120
88718-14480
88718-14650
88718-14670
88718-14680
88718-24030
90119-06003
90119-06013
90159-60128
90179-06032
91651-40610
91651-60835
91651-60845
91651-60850
91655-40616
