MA70L-BLPVFC (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )4FC

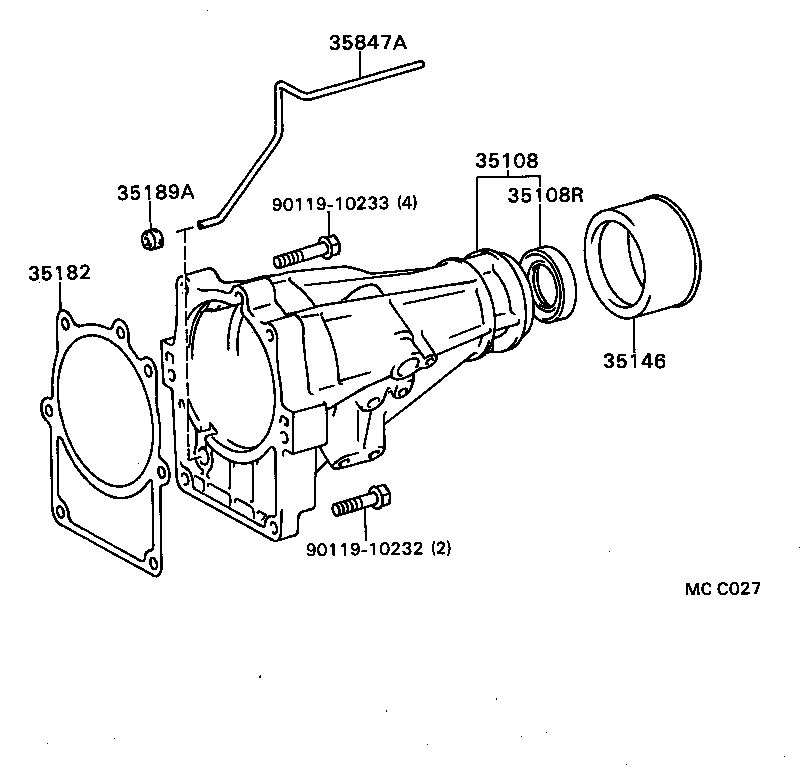

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35108 - HOUSING SUB-ASSY, EXTENSION (ATM) | ||||
| 35108-24020 |
MA70..4FC |
1 | ||
| 35108-24021 |
MA70..4FC |
1 | ||
| 35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING | ||||
| 90311-40001 |
MA70..4FC |
1 | ||
| 35146 - DEFLECTOR, EXTENSION HOUSING DUST (ATM) | ||||
| 33146-30010 |
MA70..4FC |
1 | ||
| 35182 - GASKET, EXTENSION HOUSING (ATM) | ||||
| 35182-22010 |
MA70..4FC |
1 | ||
| 35189A - GASKET, EXTENSION HOUSING BUSH APPLY TUBE | ||||
| 35189-30010 |
MA70..4FC |
1 | ||
| 35847A - TUBE, EXTENSION HOUSING BUSH APPLY | ||||
| 35847-30020 |
MA70..4FC |
1 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-10233 | ||||
