MA70L-BLPVFC (1986)

Toyota Supra

Production Jan 1986 - Aug 1988
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )7MGE

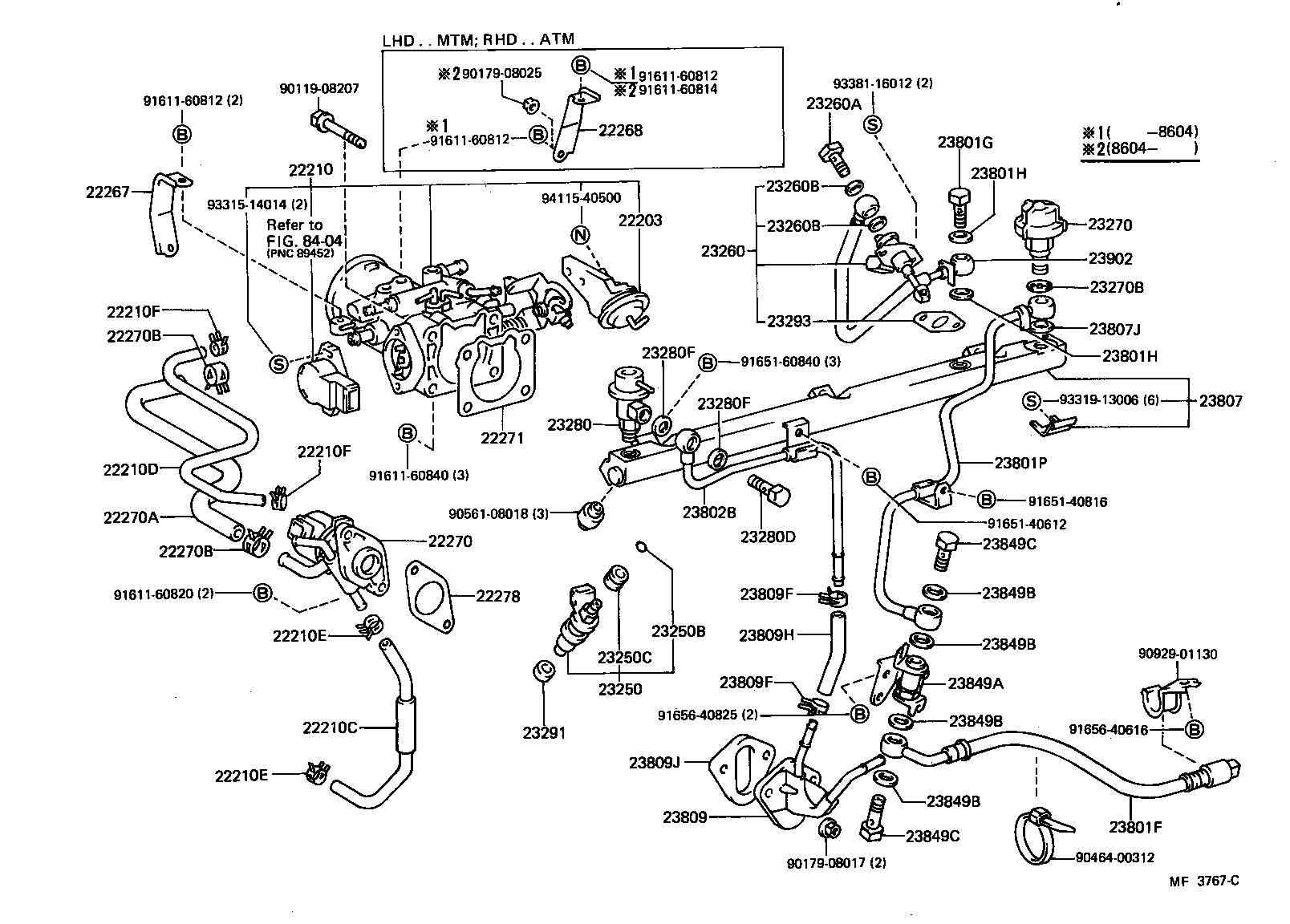

Click highlighted areas on diagram

diagram 22203 22210 22210C 22210D 22210E 22210E 22210F 22210F 22267 22268 22270 22270A 22270B 22270B 22271 22278 23250 23250B 23250C 23260 23260A 23260B 23260B 23270 23270B 23280 23280D 23280F 23280F 23291 23293 23801F 23801G 23801H 23801H 23801P 23802B 23807 23807J 23809 23809F 23809F 23809H 23809J 23849A 23849B 23849B 23849B 23849B 23849C 23849C 23902 8404 9011908207 9017908017 9017908025 9046400312 9056108018 9092901130 9161160812 9161160812 9161160812 9161160814 9161160820 9161160840 9165140612 9165140816 9165160840 9165640616 9165640825 9331514014 9331913006 9338116012 9411540500
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22203-42040

7MGE..MA70

 1
22210 - BODY ASSY, THROTTLE
22210-42120

7MGE..MA70..4FC..SDZ

 1
22210C - HOSE, WATER BY-PASS, NO.1
16261-42010

7MG#..MA70

 1
22210D - HOSE, WATER BY-PASS, NO.2
16264-42020

7MGE..MA70

 1
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13001

7MG#..MA70

 2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13001

7MG#..MA70

 2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13001

7MG#..MA70

 2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13001

7MG#..MA70

 2
22267 - BRACKET, THROTTLE BODY
22267-42010

7MGE..MA70

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-42010

7MG#..MA70

 1
22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)
17347-42020

7MGE..MA70

 1
22270B - CLIP(FOR AIR HOSE)
90467-23003

7MG#..MA70

 2
22270B - CLIP(FOR AIR HOSE)
90467-23003

7MG#..MA70

 2
22271 - GASKET, THROTTLE BODY
22271-42020

7MGE..MA70

 1
22278 - GASKET, IDLE SPEED CONTROL VALVE
22278-43011

7MG#..MA70

 1
23250 - INJECTOR ASSY, FUEL
23209-70040

7MGE..MA70

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

7MG#..MA70

 6
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

7MG#..MA70

 6
23260 - INJECTOR ASSY, COLD START FUEL
23260-49115

7MGE..MA70

 1
23260A - BOLT, UNION
90401-08003

7MG#..MA70

 1
23260B - GASKET
90430-08005

7MG#..MA70

 2
23260B - GASKET
90430-08005

7MG#..MA70

 2
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-35010

7MGE..MA70

 1
23270-42010

7MG#..MA70

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-17002

7MG#..MA70

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-42020

7MG#..MA70

 1
23280-42010

7MGE..MA70

 1
23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET)
90401-10011

7MG#..MA70

 1
23280F - GASKET(FOR FUEL PRESSURE REGULATOR)
90430-10204

7MG#..MA70

 2
23280F - GASKET(FOR FUEL PRESSURE REGULATOR)
90430-10204

7MG#..MA70

 2
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

7MG#..MA70

 6
23293 - GASKET, COLD START INJECTOR
23293-74010

7MG#..MA70

 1
23801F - HOSE, FUEL, NO.1
90923-01336

7MG#..MA70..ARL,EUR,GCC,GEN

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-12097

7MG#..MA70

 1
23801H - GASKET(FOR FUEL PIPE)
90430-12005

7MG#..MA70

 2
23801H - GASKET(FOR FUEL PIPE)
90430-12005

7MG#..MA70

 2
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-42010

7MG#..MA70

 1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23803-42010

7MG#..MA70

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-42010

7MG#..MA70

 1
23807J - GASKET, PIPE FUEL DELIVARY INLET
90430-14002

7MG#..MA70

 1
23809 - SUPPORT SUB-ASSY, FUEL PIPE
23849-41050

7MG#..MA70

 1
23809F - CLIP(FOR FUEL PIPE SUPPORT)
90467-13001

7MG#..MA70

 2
23809F - CLIP(FOR FUEL PIPE SUPPORT)
90467-13001

7MG#..MA70

 2
23809H - HOSE, FUEL PIPE SUPPORT TO REGULATOR
95335-08016

7MGE..MA70

 1
95336-08016

7MGE..MA70

 1
95336-08020

7MG#..MA70

 1
23809J - INSULATOR, FUEL PIPE SUPPORT
90923-06007

7MG#..MA70

 1
23849A - SUPPORT, FUEL PIPE
23849-42010

7MG#..MA70

 1
23849B - GASKET(FOR FUEL PIPE SUPPORT)
90430-12005

7MG#..MA70

 4
23849B - GASKET(FOR FUEL PIPE SUPPORT)
90430-12005

7MG#..MA70

 4
23849B - GASKET(FOR FUEL PIPE SUPPORT)
90430-12005

7MG#..MA70

 4
23849B - GASKET(FOR FUEL PIPE SUPPORT)
90430-12005

7MG#..MA70

 4
23849C - BOLT, UNION(FOR FUEL PIPE SUPPORT)
90401-12097

7MG#..MA70

 2
23849C - BOLT, UNION(FOR FUEL PIPE SUPPORT)
90401-12097

7MG#..MA70

 2
23902 - TUBE SUB-ASSY, FUEL
23902-42020

7MGE..MA70

 1
Common parts
90119-08207
90179-08017
90179-08025
90464-00312
90561-08018
90929-01130
91611-60812
91611-60814
91611-60820
91611-60840
91651-40612
91651-40816
91651-60840
91656-40616
91656-40825
93315-14014
93319-13006
93381-16012
94115-40500
Linked diagrams
8404

(8601- )

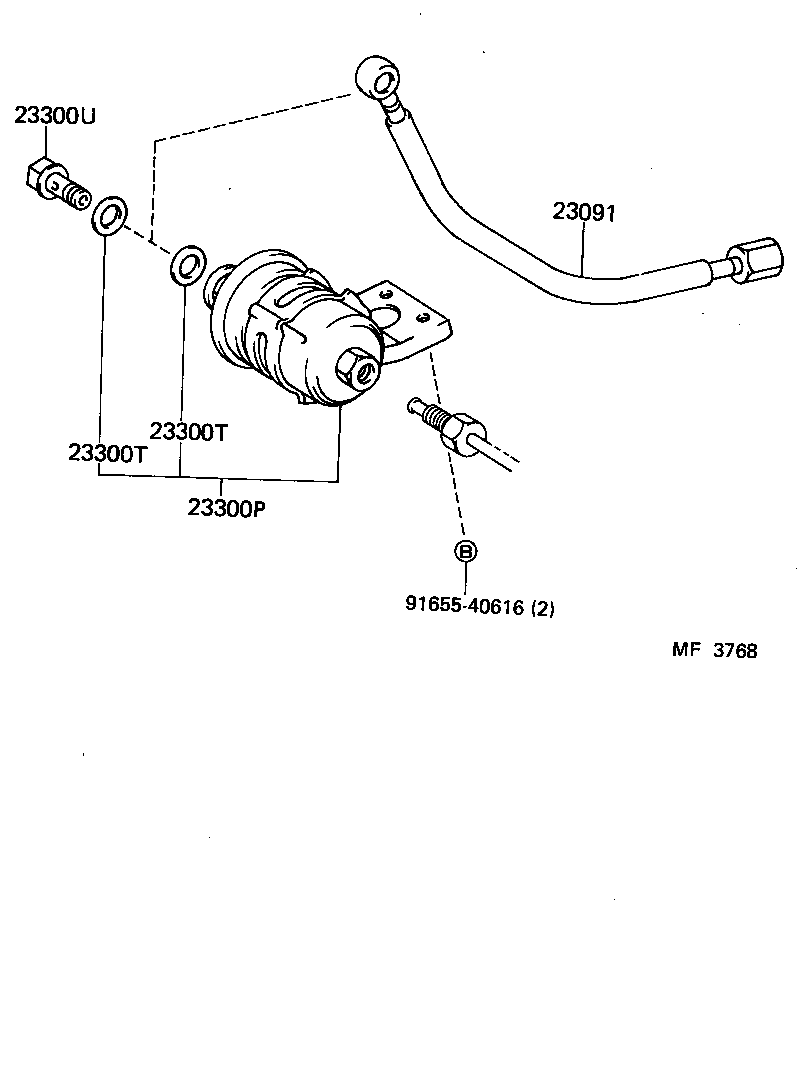

Click highlighted areas on diagram

diagram 23091 23300P 23300T 23300T 23300U 9165540616
Part # Description Qty Price
23091 - TUBE SUB-ASSY, FUEL PUMP
23091-42040

7MG#..MA70

 1
23300P - FILTER, FUEL(FOR EFI)
23300-49155

7MGE..MA70

 1
23300-49155

7MG#..MA70..ARL,EUR

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

7MG#..MA70

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12005

7MG#..MA70

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

7MG#..MA70

 1
Common parts
91655-40616

(8601- )

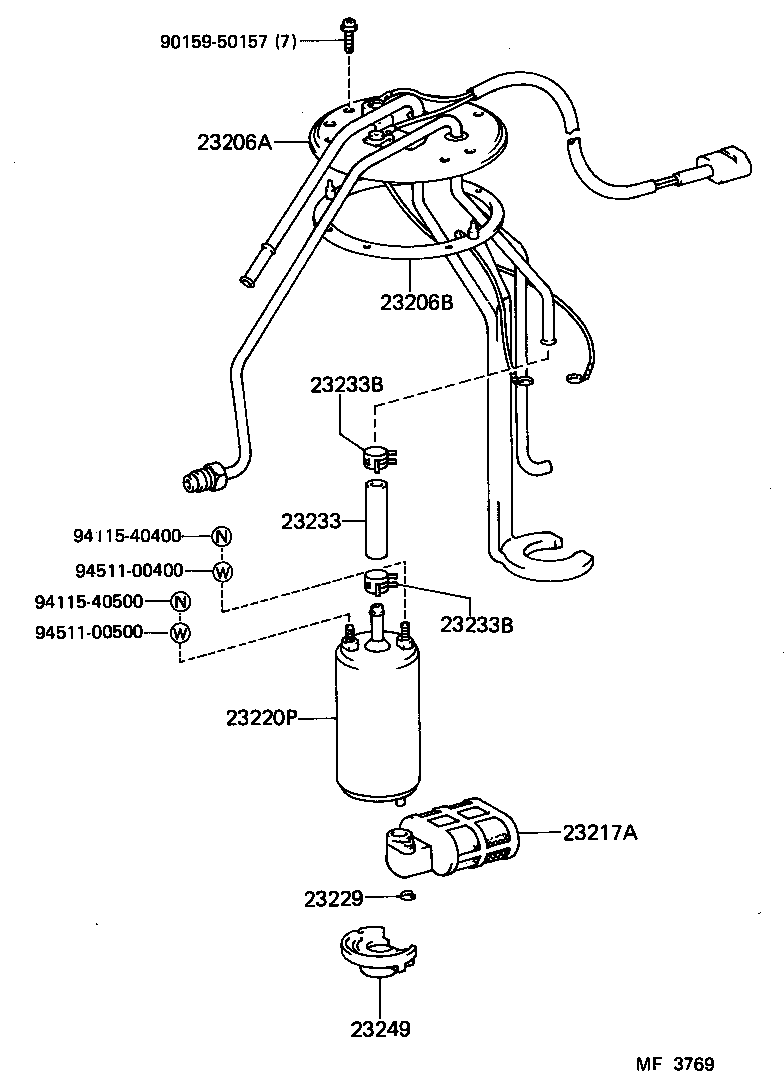

Click highlighted areas on diagram

diagram 23206A 23206B 23217A 23220P 23229 23233 23233B 23233B 23249 9015950157 9411540400 9411540500 9451100400 9451100500
Part # Description Qty Price
23206A - BRACKET, FUEL PUMP
23206-42040

7MGE..MA70

 1
23206-42040

7MGE..MA70..ARL,EUR

 1
23206B - GASKET, FUEL PUMP BRACKET
77169-14010

7MG#..MA70

 1
23217A - FILTER, FUEL PUMP
23217-16030

7MG#..MA70

DENSO

 1
23217-16043

7MGE..MA70

AISAN

 1
23220P - PUMP ASSY, FUEL
23220-70170

7MGE..MA70

DENSO

 1
23220-70180

7MGE..MA70..ARL;7MGE..MA70..SDZ

AISAN

 1
23220-42100

7MGE..MA70

DENSO

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

7MG#..MA70

 1
23233 - HOSE, FUEL PUMP
23239-16010

7MG#..MA70

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13001

7MG#..MA70

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13001

7MG#..MA70

 2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-43080

7MG#..MA70

 1
Common parts
90159-50157
94115-40400
94115-40500
94511-00400
94511-00500
