MA70L-BLPVF (1986)

Toyota Supra

Production Jan 1986 - Aug 1988
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )7MGE

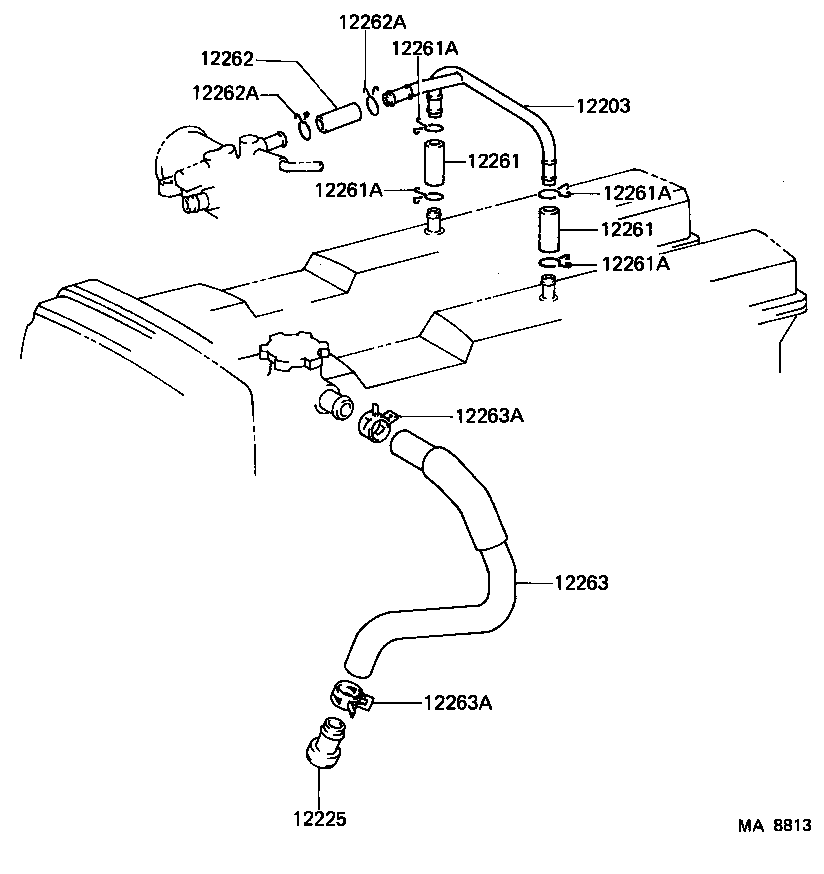

Click highlighted areas on diagram

diagram 12203 12225 12261 12261 12261A 12261A 12261A 12261A 12262 12262A 12262A 12263 12263A 12263A
Part # Description Qty Price
12203 - PIPE SUB-ASSY, VENTILATION
12229-42010

7MGE..MA70

 1
12225 - FLANGE, VENTILATION
12225-42010

7MG#..MA70

 1
12261 - HOSE, VENTILATION
12261-42010

7MG#..MA70

 2
12261 - HOSE, VENTILATION
12261-42010

7MG#..MA70

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-16035

7MG#..MA70

 4
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-16035

7MG#..MA70

 4
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-16035

7MG#..MA70

 4
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-16035

7MG#..MA70

 4
12262 - HOSE, VENTILATION, NO.2
12261-42010

7MGE..MA70

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16035

7MGE..MA70

ID=16

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16035

7MGE..MA70

ID=16

 2
12263 - HOSE, VENTILATION, NO.3
12263-42010

7MG#..MA70

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-26002

7MG#..MA70

 2
12263A - CLIP(FOR VENTILATION HOSE)
90467-26002

7MG#..MA70

 2
