MA70L-BLMVZC (1987)

Toyota Supra

Production Aug 1987 - Aug 1988
Engine 7MGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )TWT

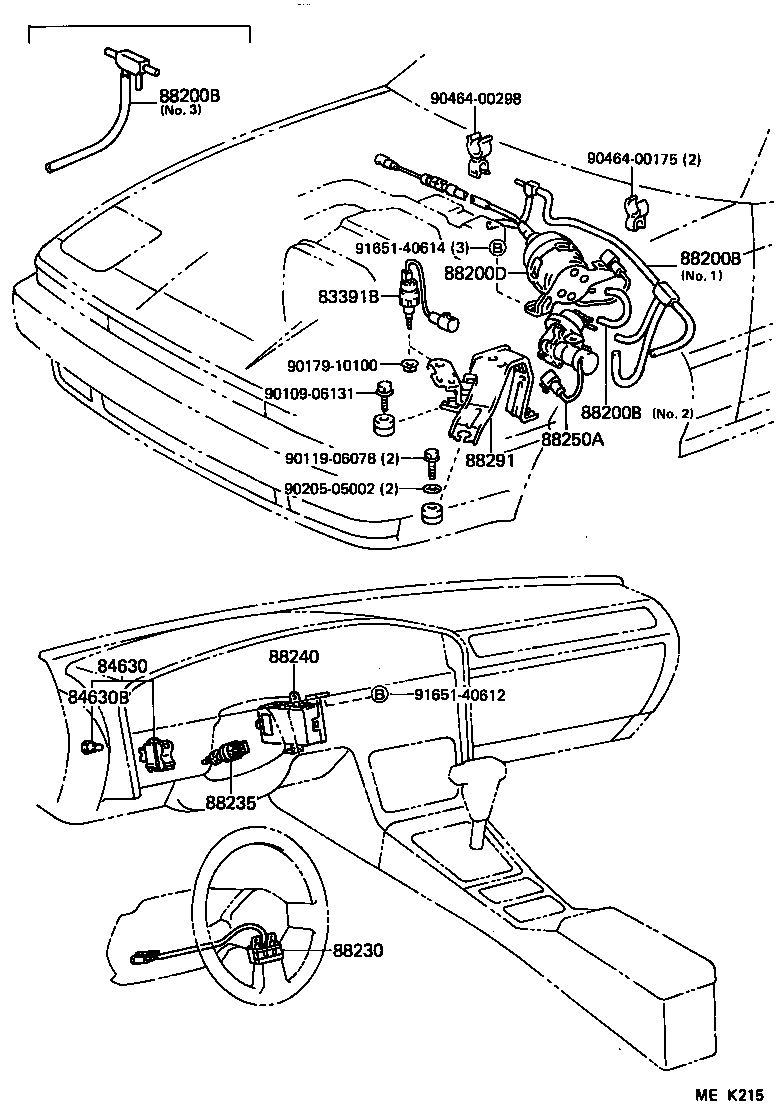

Click highlighted areas on diagram

diagram 83391B 84630 84630B 88200B 88200B 88200B 88200D 88230 88235 88240 88250A 88291 9010906131 9011906078 9017910100 9020505002 9046400175 9046400298 9165140612 9165140614
Part # Description Qty Price
83391B - SWITCH, AUTO DRIVE VACUUM
83391-14090

MA70..TWT

 1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-14040

MA70

 1
84630B - BULB(FOR CRUISE CONTROL SWITCH)
84999-10200

MA70

14V 0.56W

 2
88200B - HOSE, CRUISE CONTROL VACUUM
88283-14080

MA70..TWT

NO.3

 1
95411-19930

MA70..TWT

*H,L=300,MARK=#*,NO.2

 1
88283-14030

MA70..TWT

NO.1

 1
90999-92002

MA70..TWT

*H,L=300,NO.2

 1
88200B - HOSE, CRUISE CONTROL VACUUM
88283-14080

MA70..TWT

NO.3

 1
95411-19930

MA70..TWT

*H,L=300,MARK=#*,NO.2

 1
88283-14030

MA70..TWT

NO.1

 1
90999-92002

MA70..TWT

*H,L=300,NO.2

 1
88200B - HOSE, CRUISE CONTROL VACUUM
88283-14080

MA70..TWT

NO.3

 1
95411-19930

MA70..TWT

*H,L=300,MARK=#*,NO.2

 1
88283-14030

MA70..TWT

NO.1

 1
90999-92002

MA70..TWT

*H,L=300,NO.2

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-14130

MA70..LHD

 1
88200-14120

MA70..TWT

 1
88200-14121

MA70..TWT

 1
88230 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL
88230-1412004

MA70

BLUE,DEEP BLUE,TRIM8#

 1
88230-1412005

MA70

BEIGE,DARK BEIGE,TRIM4#

 1
88230-1412003

MA70

GRAY,MEDIUM GRAY,TRIM1#

 1
88235 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE
88280-20010

MA70..5F

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-14121

MA70..TWT

 1
88250A - PUMP ASSY, CRUISE CONTROL
88251-14120

MA70..TWT

 1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88292-14020

MA70..TWT

 1
Common parts
90109-06131
90119-06078
90179-10100
90205-05002
90464-00175
90464-00298
91651-40612
91651-40614
