MA70L-BLMVFW (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )5F..TWC

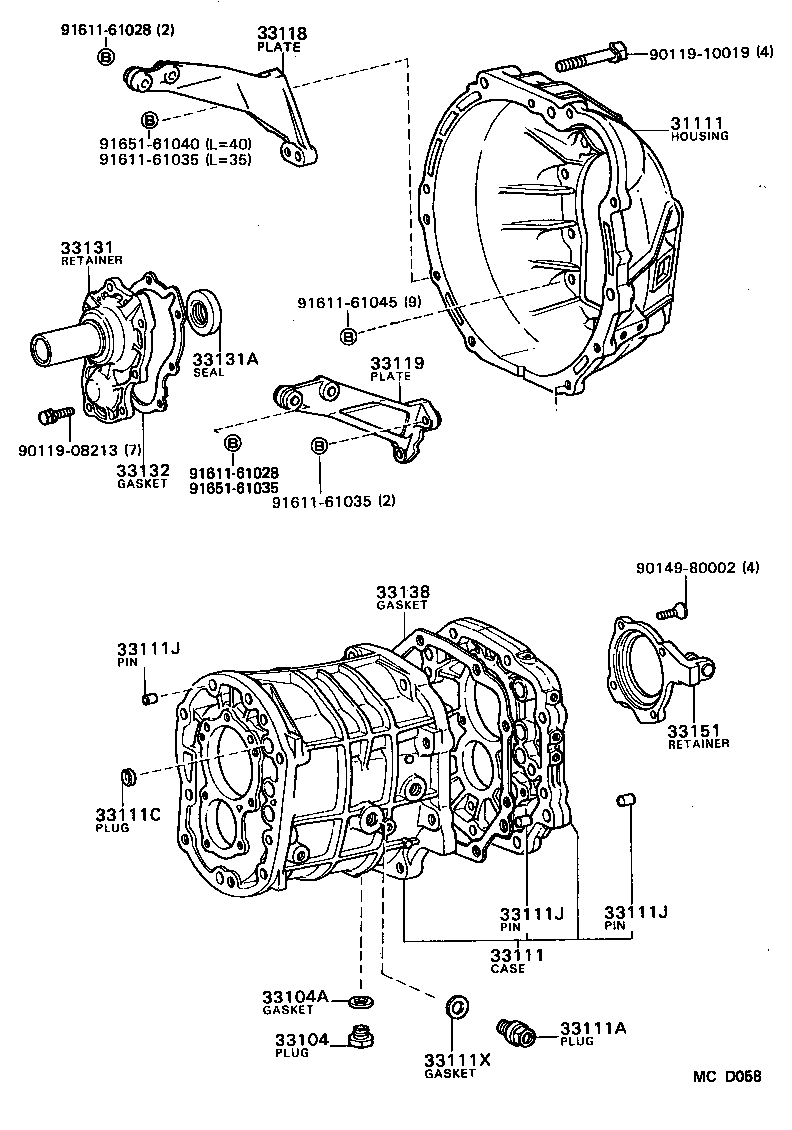

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-22091 |
MA70..5F..TWC |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
MA70..5F..TWC |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
MA70..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-22021 |
MA70..5F..TWC |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
MA70..5F..TWC |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
MA70..5F OD=14 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
MA70..5F L=16,OD=12 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
MA70..5F L=16,OD=12 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
MA70..5F L=16,OD=12 |
6 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
MA70..5F..TWC |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-14050 |
MA70..5F |
1 | ||
| 33118-30031 |
MA70..5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-22030 |
MA70..5F..TWC |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-22020 |
MA70..5F..TWC |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30115 |
MA70..5F..TWC |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-22010 |
MA70..5F..TWC |
1 | ||
| 33138 - GASKET, INTERMEDIATE PLATE | ||||
| 33142-22010 |
MA70..5F..TWC |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33107-22010 |
MA70..5F..TWC |
1 | ||
| Common parts | ||||
| 90119-08213 | ||||
| 90119-10019 | ||||
| 90149-80002 | ||||
| 91611-61028 | ||||
| 91611-61035 | ||||
| 91611-61045 | ||||
| 91651-61035 | ||||
| 91651-61040 | ||||
(8808-9111)5F..TWC
Click highlighted areas on diagram
W5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08213 | ||||
| 90119-10019 | ||||
| 90149-80002 | ||||
| 91611-61028 | ||||
| 91611-61035 | ||||
| 91611-61045 | ||||
| 91651-61035 | ||||
| 91651-61040 | ||||
