MA70L-BLMVFW (1986)

Toyota Supra

Production Jan 1986 - Aug 1988
Engine 7MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )7MGE..RHD ; (8601- )7MGE..LHD..EUG; (8601- )7MGE..LHD..GEN

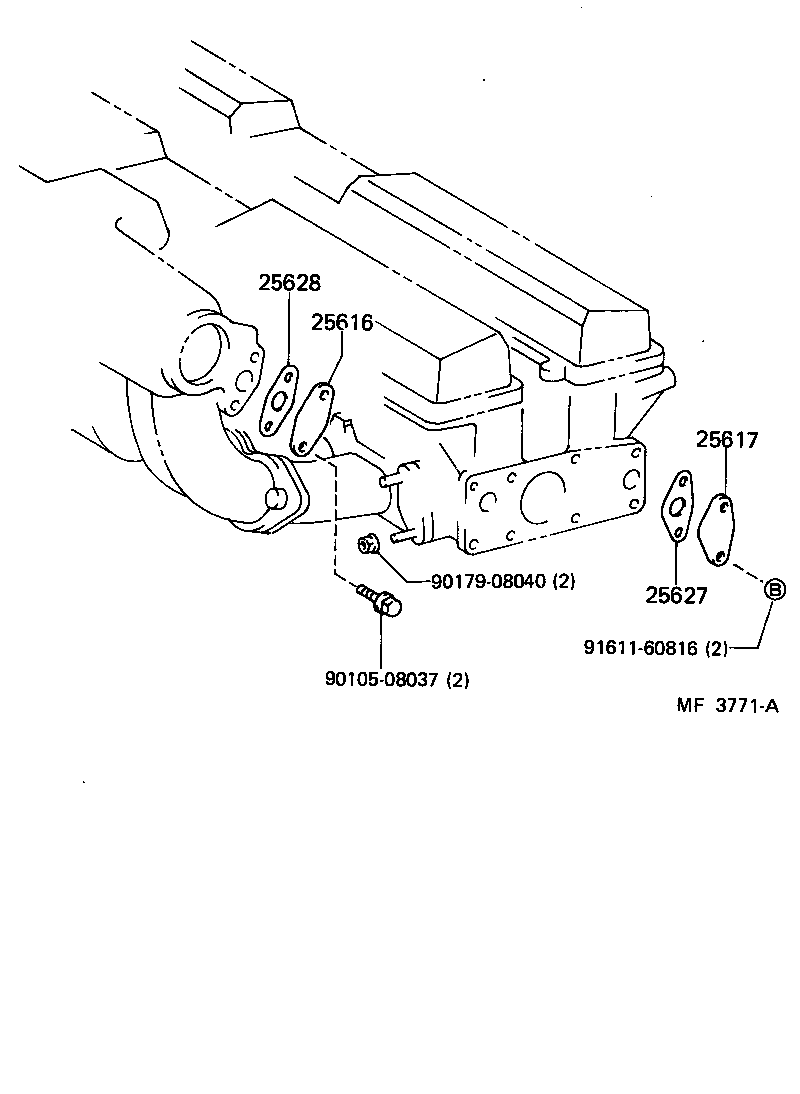

Click highlighted areas on diagram

diagram 25616 25617 25627 25628 9010508037 9017908040 9161160816
Part # Description Qty Price
25616 - PLATE, HOLE COVER(FOR EGR PIPE)
25617-42010

7MGE..MA70..RHD;7MGE..MA70..LHD..EUG;7MGE..MA70..LHD..(GCC,GEN)

 1
25617 - PLATE, EGR HOLE COVER
25615-43020

7MGE..MA70..RHD;7MGE..MA70..LHD..EUG;7MGE..MA70..LHD..(GCC,GEN)

 1
25627 - GASKET, EGR VALVE
25627-43030

7MGE..MA70..RHD;7MGE..MA70..LHD..EUG;7MGE..MA70..LHD..(GCC,GEN)

 1
25628 - GASKET, EGR INLET
25628-42010

7MG#..MA70

 1
Common parts
90105-08037
90179-08040
91611-60816

(8808-8908)7MGE

Click highlighted areas on diagram

diagram 25616 25628 9010508037 9017908040
Part # Description Qty Price
Common parts
90105-08037
90179-08040
