MA70L-BLMVFV (1988)

Toyota Supra

Production Aug 1988 - May 1993
Engine 7MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

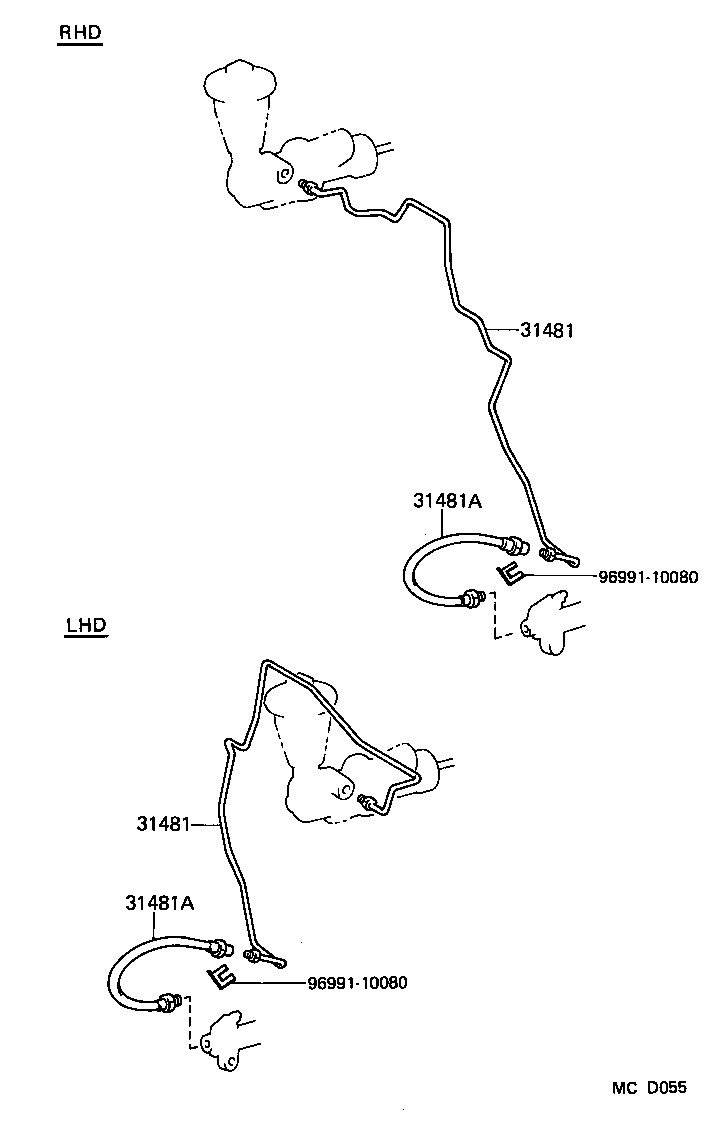

ILLUST NO. 2 OF 2(8808- )5F..TWC

Click highlighted areas on diagram

diagram 31481 31481 31481A 31481A 9699110080 9699110080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-14230

MA70..LHD..5F

 1
31481-14190

MA70..LHD..5F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-14230

MA70..LHD..5F

 1
31481-14190

MA70..LHD..5F

 1
31481A - HOSE, CLUTCH, NO.1
96812-50350

MA70..5F..TWC

 1
31481A - HOSE, CLUTCH, NO.1
96812-50350

MA70..5F..TWC

 1
Common parts
96991-10080

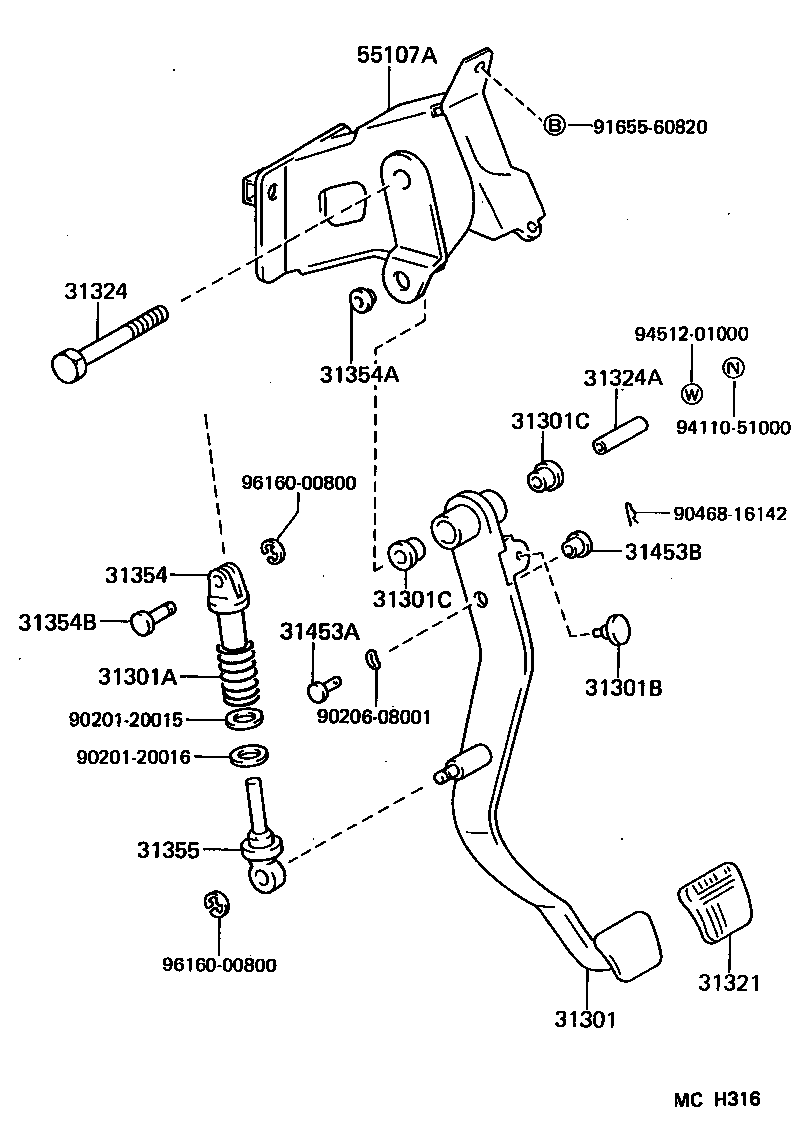

ILLUST NO. 1 OF 2(8808- )5F

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31321 31324 31324A 31354 31354A 31354B 31355 31453A 31453B 55107A 9020120015 9020120016 9020608001 9046816142 9165560820 9411051000 9451201000 9616000800 9616000800
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31310-14010

MA70..LHD..5F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90501-45029

MA70..5F..TWC

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-07020

MA70..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

MA70..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

MA70..5F

 2
31321 - PAD, CLUTCH PEDAL
31321-14020

MA70..5F

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51060

MA70..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

MA70..5F

 1
31354 - SEAT, CLUTCH PEDAL SPRING, UPPER
31354-20020

MA70..5F

 1
31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90386-10019

MA70..5F

 1
31354B - PIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90249-10127

MA70..5F

 1
31355 - SEAT, CLUTCH PEDAL SPRING, LOWER
31355-14020

MA70..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

MA70..5F

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08010

MA70..LHD..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-14150

MA70..LHD..5F

 1
Common parts
90201-20015
90201-20016
90206-08001
90468-16142
91655-60820
94110-51000
94512-01000
96160-00800
