MA70L-BLMVFC (1986)

Toyota Supra

Production Jan 1986 - Aug 1988
Engine 7MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )LHD..TWC

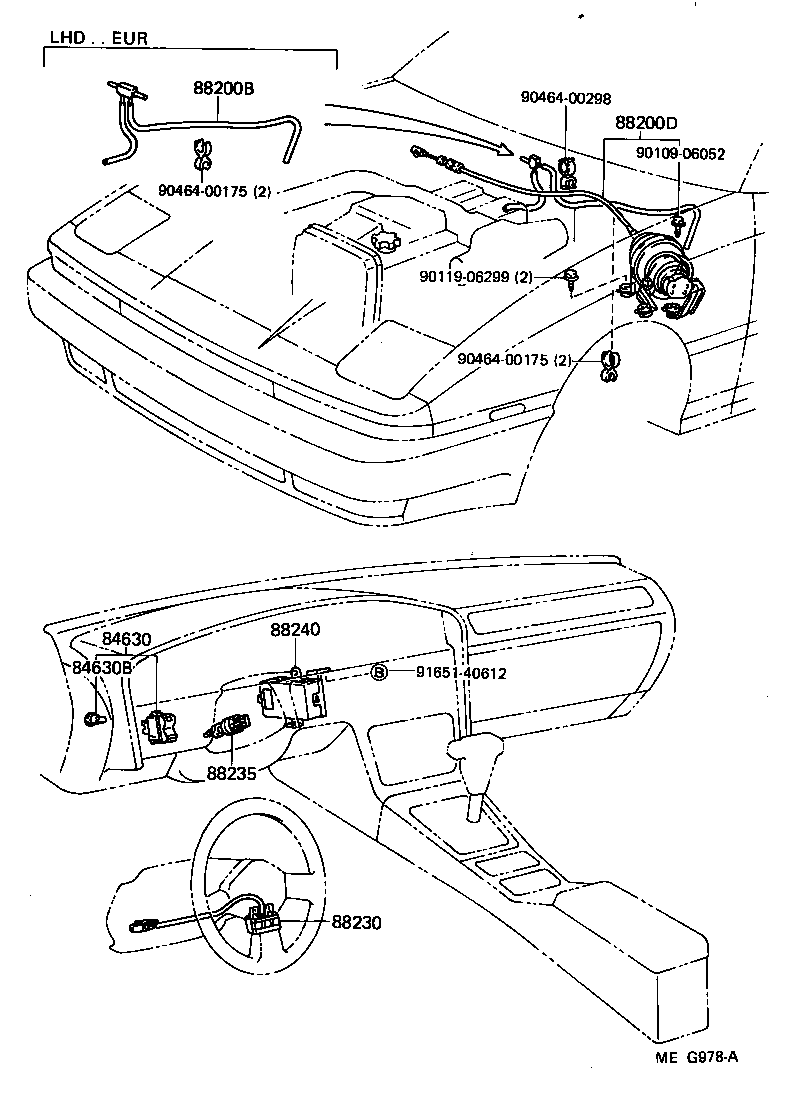

Click highlighted areas on diagram

diagram 84630 84630B 88200B 88200D 88230 88235 88240 9010906052 9011906299 9046400175 9046400175 9046400298 9165140612
Part # Description Qty Price
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-14040

MA70

 1
84630-14041

MA70

 1
84630B - BULB(FOR CRUISE CONTROL SWITCH)
84999-10200

MA70

14V 0.56W

 2
88200B - HOSE, CRUISE CONTROL VACUUM
88283-14050

MA70..LHD..TWC..EUR

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-14130

MA70..LHD

 1
88200-14131

MA70..LHD..TWC

 1
88230 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL
88230-1412004

MA70

BLUE,DEEP BLUE,TRIM8#

 1
88230-1412005

MA70

BEIGE,DARK BEIGE,TRIM4#

 1
88230-1412003

MA70

GRAY,MEDIUM GRAY,TRIM1#

 1
88235 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE
88280-20010

MA70..5F

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-14131

MA70..LHD..TWC

 1
Common parts
90109-06052
90119-06299
90464-00175
90464-00298
91651-40612
