MA70L-BLMVFC (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )5F..TWC

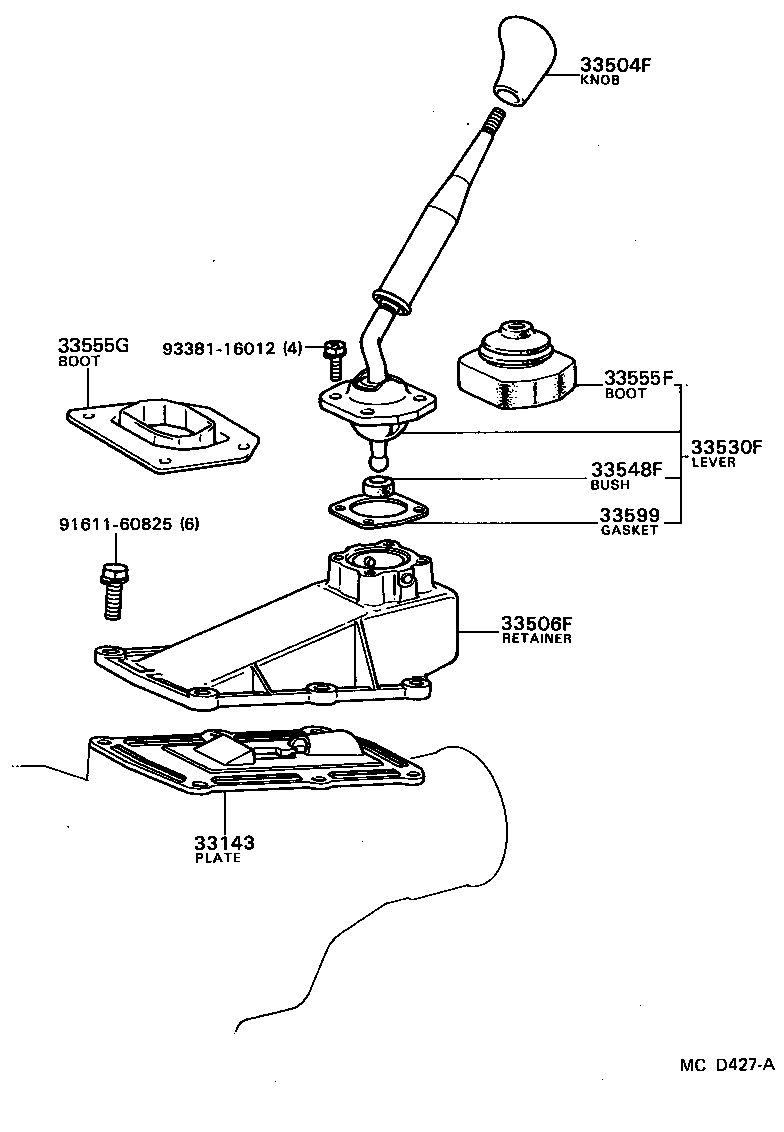

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33143 - PLATE, EXTENSION HOUSING OIL BAFFLE | ||||
| 33143-22020 |
MA70..5F..TWC |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-1409004 |
MA70..5F BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 33504-1409005 |
MA70..5F..(ARL,EUR,GEN,SA) BEIGE,BEIGE,TRIM4# |
1 | ||
| 33504-1409003 |
MA70..5F GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 33504-1409005 |
MA70..5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33570-22070 |
MA70..5F..TWC |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-14390 |
MA70..LHD..5F |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-31010 |
MA70..5F |
1 | ||
| 33555F - BOOT, SHIFT & SELECT LEVER, NO.2 | ||||
| 33555-22050 |
MA70..5F |
1 | ||
| 33555G - BOOT, SHIFT & SELECT LEVER, NO.3 | ||||
| 33555-14080 |
MA70..5F |
1 | ||
| 33599 - GASKET, CONTROL SHIFT LEVER RETAINER, NO.2 | ||||
| 33584-22020 |
MA70..5F |
1 | ||
| Common parts | ||||
| 91611-60825 | ||||
| 93381-16012 | ||||
(8808-9111)5F..TWC
Click highlighted areas on diagram
W5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33143 - PLATE, EXTENSION HOUSING OIL BAFFLE | ||||
| 33143-22020 |
MA70..5F..TWC |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-1409004 |
MA70..5F BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 33504-1409005 |
MA70..5F..(ARL,EUR,GEN,SA) BEIGE,BEIGE,TRIM4# |
1 | ||
| 33504-1409003 |
MA70..5F GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 33504-1409005 |
MA70..5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33570-22070 |
MA70..5F..TWC |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-14390 |
MA70..LHD..5F |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-31010 |
MA70..5F |
1 | ||
| 33555F - BOOT, SHIFT & SELECT LEVER, NO.2 | ||||
| 33555-22050 |
MA70..5F |
1 | ||
| 33555G - BOOT, SHIFT & SELECT LEVER, NO.3 | ||||
| 33555-14080 |
MA70..5F |
1 | ||
| 33599 - GASKET, CONTROL SHIFT LEVER RETAINER, NO.2 | ||||
| 33584-22020 |
MA70..5F |
1 | ||
| Common parts | ||||
| 91611-60825 | ||||
| 93381-16012 | ||||
